Pandacan, Metro Manila, Philippines, located in the tropics, offers a promising environment for solar energy generation throughout the year. This location benefits from consistent sunlight and experiences wet and dry seasons rather than traditional four-season cycles.

Seasonal Solar Output

The solar energy potential in Pandacan varies across the year, with spring being the most productive season. On average, each kilowatt of installed solar capacity can generate:

• Spring: 6.21 kWh/day
• Summer: 5.20 kWh/day
• Autumn: 4.38 kWh/day
• Winter: 3.93 kWh/day

These figures indicate that Pandacan has good year-round solar potential, with spring and summer being particularly favorable for energy production.

Optimal Panel Tilt

For fixed solar panel installations in Pandacan, Metro Manila, the ideal tilt angle to maximize year-round energy production is 12 degrees facing South. This angle takes into account the location's latitude and the Earth's elliptical orbit to ensure optimal sunlight capture throughout the year.

Environmental Considerations

While Pandacan's tropical climate is generally favorable for solar energy, there are some environmental factors to consider. The region experiences a monsoon season, which can bring heavy rainfall and increased cloud cover, potentially reducing solar output during these periods. Additionally, the area may be prone to typhoons, which could pose a risk to solar installations.

Preventative Measures

To mitigate these environmental challenges, several preventative measures can be taken when installing solar panels in Pandacan:

1. Use sturdy mounting systems designed to withstand high winds and heavy rainfall.

2. Install proper drainage systems to prevent water accumulation on panels.

3. Regularly clean panels to remove dust and debris, which can accumulate during dry seasons and reduce efficiency.

4. Consider using microinverters or power optimizers to minimize the impact of partial shading during cloudy periods.

By implementing these measures, solar installations in Pandacan can maximize their energy production potential and withstand local weather conditions, making it an overall favorable location for solar PV systems.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 268 locations across Philippines. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Philippines by location

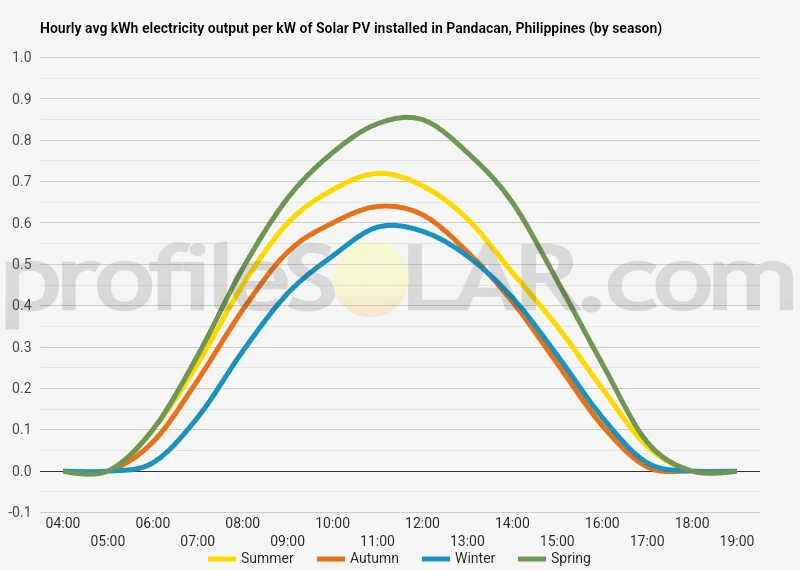

Solar output per kW of installed solar PV by season in Pandacan

Seasonal solar PV output for Latitude: 14.5855, Longitude: 121.0071 (Pandacan, Philippines), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 12° South in Pandacan, Philippines

To maximize your solar PV system's energy output in Pandacan, Philippines (Lat/Long 14.5855, 121.0071) throughout the year, you should tilt your panels at an angle of 12° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pandacan, Philippines

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pandacan, Philippines. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 12° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° North in Summer	20° South in Autumn	30° South in Winter	8° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pandacan, Philippines

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pandacan, Philippines.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pandacan, Philippines

Pandacan, located in the heart of Metro Manila, Philippines, sits in a predominantly flat urban landscape. The area around Pandacan is characterized by dense city development, with a mix of residential, commercial, and industrial zones. The terrain is generally low-lying, with minimal natural elevation changes. The nearby Pasig River flows through this area, providing one of the few notable topographical features in the immediate vicinity. To the east and southeast of Pandacan, the land gradually rises towards the Sierra Madre mountain range, but this change in elevation is not significant within the city limits. The urban sprawl of Metro Manila extends in all directions from Pandacan, creating a relatively uniform topography dominated by man-made structures rather than natural landforms.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, it's important to note that the dense urban environment of Metro Manila poses significant challenges. However, there are a few potential options worth exploring: The expansive port area to the west of Pandacan, along Manila Bay, could offer suitable space for solar installations. These industrial zones often have large, flat rooftops that could be utilized for solar panels without requiring additional land use. To the south and southeast of Pandacan, the provinces of Laguna and Cavite might provide more opportunities for ground-mounted solar farms. These areas, while still developed, have more open spaces and industrial parks that could potentially accommodate large-scale solar projects. The province of Rizal, to the east of Metro Manila, features some elevated areas and less densely populated regions that might be suitable for solar installations. The slightly higher elevation could potentially offer good sun exposure for solar panels. It's worth noting that while these areas may offer more potential for large-scale solar PV compared to the immediate vicinity of Pandacan, any major solar project in this region would still face significant challenges due to land scarcity and the highly urbanized nature of Metro Manila and its surrounding areas. Rooftop solar on existing buildings throughout the metro area might ultimately prove to be a more feasible approach for significant solar energy generation in this region.

Philippines solar PV Stats as a country

Philippines ranks 40th in the world for cumulative solar PV capacity, with 1,370 total MW's of solar PV installed. Each year Philippines is generating 13 Watts from solar PV per capita (Philippines ranks 71st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Philippines?

Yes, there are several incentives for businesses wanting to install solar energy in the Philippines. These include:

1. The Feed-in Tariff (FiT) program, which provides a guaranteed rate of return on investments in renewable energy projects;

2. Tax credits and exemptions from certain taxes;

3. Net metering programs that allow businesses to sell excess electricity back to the grid;

4. Grants and loans from government agencies such as the Department of Energy and the Philippine Solar Power Alliance;

5. Technical assistance from organizations like USAID’s Clean Energy Program; and

6. Access to financing through banks, venture capital firms, or other sources of private capital.

Do you have more up to date information than this on incentives towards solar PV projects in Philippines? Please reach out to us and help us keep this information current. Thanks!
