Ramon Magsaysay, Zamboanga Peninsula, Philippines, located in the tropics at 8.0036°N, 123.5128°E, offers a promising environment for solar PV energy generation throughout the year. This location benefits from consistent sunlight and experiences wet and dry seasons rather than traditional four-season weather patterns.

Solar Energy Potential

The solar energy potential in Ramon Magsaysay is relatively high and stable across the year. Spring sees the highest average daily output at 5.94 kWh per kW of installed solar capacity, followed closely by summer at 5.75 kWh/day. Autumn maintains a strong performance with 5.28 kWh/day, while winter experiences a slight dip but still produces a respectable 4.62 kWh/day. These figures indicate that Ramon Magsaysay is well-suited for year-round solar energy production, with only minor fluctuations between seasons. The consistent output throughout the year makes this location ideal for solar PV installations, as it can provide a reliable source of renewable energy with minimal seasonal disruptions.

Optimal Panel Tilt

For fixed solar panel installations in Ramon Magsaysay, Zamboanga Peninsula, the ideal tilt angle to maximize year-round energy production is 7 degrees South. This relatively shallow angle is due to the location's proximity to the equator, where the sun's path remains more directly overhead throughout the year.

Environmental and Weather Considerations

While Ramon Magsaysay offers favorable conditions for solar energy production, there are some environmental factors to consider: 1. Tropical storms and typhoons: The Philippines is prone to tropical cyclones, which can potentially damage solar installations or reduce efficiency due to cloud cover. 2. High humidity: The tropical climate means high humidity levels, which can lead to moisture-related issues for solar equipment if not properly protected. To mitigate these challenges, the following preventative measures can be taken:

• Use corrosion-resistant materials and proper sealing for all solar components
• Install robust mounting systems designed to withstand high winds
• Implement regular cleaning and maintenance schedules to prevent dust and debris accumulation
• Consider micro-inverter systems to minimize the impact of partial shading on overall system performance

By addressing these factors during installation and maintenance, solar PV systems in Ramon Magsaysay can take full advantage of the location's excellent solar potential and provide a reliable source of renewable energy throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 268 locations across Philippines. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Philippines by location

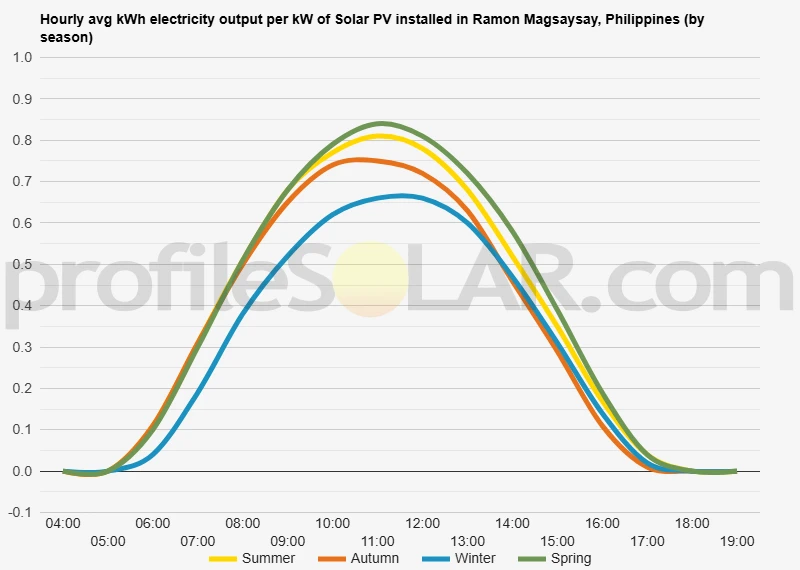

Solar output per kW of installed solar PV by season in Ramon Magsaysay

Seasonal solar PV output for Latitude: 8.0036, Longitude: 123.5128 (Ramon Magsaysay, Philippines), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° South in Ramon Magsaysay, Philippines

To maximize your solar PV system's energy output in Ramon Magsaysay, Philippines (Lat/Long 8.0036, 123.5128) throughout the year, you should tilt your panels at an angle of 7° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ramon Magsaysay, Philippines

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ramon Magsaysay, Philippines. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	14° South in Autumn	23° South in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ramon Magsaysay, Philippines

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ramon Magsaysay, Philippines.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ramon Magsaysay, Philippines

The topography around Ramon Magsaysay, Philippines, located at coordinates 8.0036 latitude and 123.5128 longitude, is characterized by a diverse landscape that includes both flat lowlands and hilly terrain. This area is situated on the island of Mindanao, in the province of Zamboanga del Sur. The immediate vicinity of Ramon Magsaysay features gently rolling hills and small valleys, with elevations ranging from near sea level to around 100-200 meters above sea level. As you move further from the town center, the terrain becomes more varied, with some areas rising to higher elevations of 300-500 meters. To the north and east of Ramon Magsaysay, the land gradually slopes upward towards the mountainous regions of central Mindanao. These areas are characterized by steeper hills, deeper valleys, and denser vegetation. The southern and western parts of the region, closer to the coast, tend to be flatter and more suitable for agriculture.

Potential Areas for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations for solar PV projects typically include flat or gently sloping terrain, minimal shading from surrounding landscape features, and good access to existing infrastructure. Based on these criteria, the most promising areas for large-scale solar PV near Ramon Magsaysay would likely be found in the flatter, lowland regions to the south and southwest of the town. These areas offer several advantages: 1. The relatively flat terrain reduces the need for extensive land preparation and allows for easier installation of solar panels. 2. The lower elevation and proximity to the coast mean there are fewer tall hills or mountains that could cast shadows on the solar arrays. 3. These areas are generally more accessible, which is crucial for the transportation of equipment and ongoing maintenance of the solar facility. 4. The lowlands often have less dense vegetation compared to the hilly regions, which minimizes the need for clearing land. It's important to note that while these areas may be topographically suitable, other factors such as land ownership, environmental considerations, and proximity to the electrical grid would also need to be taken into account when planning a large-scale solar PV project. Additionally, site-specific surveys and assessments would be necessary to determine the most optimal locations within this broader area.

Philippines solar PV Stats as a country

Philippines ranks 40th in the world for cumulative solar PV capacity, with 1,370 total MW's of solar PV installed. Each year Philippines is generating 13 Watts from solar PV per capita (Philippines ranks 71st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Philippines?

Yes, there are several incentives for businesses wanting to install solar energy in the Philippines. These include:

1. The Feed-in Tariff (FiT) program, which provides a guaranteed rate of return on investments in renewable energy projects;

2. Tax credits and exemptions from certain taxes;

3. Net metering programs that allow businesses to sell excess electricity back to the grid;

4. Grants and loans from government agencies such as the Department of Energy and the Philippine Solar Power Alliance;

5. Technical assistance from organizations like USAID’s Clean Energy Program; and

6. Access to financing through banks, venture capital firms, or other sources of private capital.

Do you have more up to date information than this on incentives towards solar PV projects in Philippines? Please reach out to us and help us keep this information current. Thanks!
