The location of Tanay, Calabarzon, Philippines, situated at 14.4955 latitude and 121.2864 longitude, presents a generally favorable environment for solar PV energy generation throughout the year. This tropical location benefits from consistent sunlight, with seasons characterized more by wet and dry periods rather than traditional temperature-based seasons.

Seasonal Solar Output

The expected electricity output per kW of installed solar varies across the meteorological seasons:

• Spring: 6.21 kWh/day
• Summer: 5.20 kWh/day
• Autumn: 4.38 kWh/day
• Winter: 3.93 kWh/day

Spring emerges as the most productive season, while winter sees the lowest output. However, the relatively small variation between seasons indicates a consistent solar potential throughout the year.

Optimal Panel Tilt

For fixed panel installations in Tanay, Calabarzon, the ideal tilt angle to maximize year-round solar production is 12 degrees facing South. This angle has been calculated taking into account the location's latitude, daily solar elevation angles, and weighted by NASA's solar irradiance data.

Environmental Considerations

While Tanay's tropical climate is generally conducive to solar energy production, there are some environmental factors to consider. The region experiences a monsoon season, typically from June to September, which could potentially impact solar output due to increased cloud cover and rainfall. Additionally, the area may be subject to tropical storms or typhoons, which could pose a risk to solar installations.

Preventative Measures

To mitigate these environmental challenges, several preventative measures can be implemented during solar installation: 1. Use high-quality, weather-resistant solar panels and mounting systems designed to withstand heavy rainfall and strong winds. 2. Install adequate drainage systems to prevent water accumulation on panels. 3. Implement a regular cleaning and maintenance schedule to remove debris and ensure optimal performance, especially during and after the rainy season. 4. Consider incorporating microinverters or power optimizers to minimize the impact of partial shading on overall system performance. 5. Install lightning protection systems to safeguard the installation during storms.

By taking these precautions, solar energy production in Tanay can be optimized, making the most of its favorable tropical location and consistent sunlight throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 268 locations across Philippines. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Philippines by location

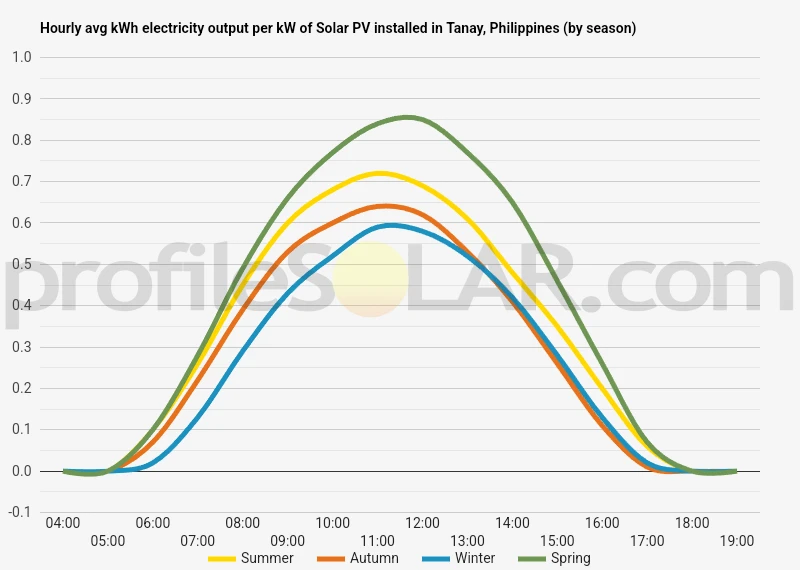

Solar output per kW of installed solar PV by season in Tanay

Seasonal solar PV output for Latitude: 14.4955, Longitude: 121.2864 (Tanay, Philippines), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 12° South in Tanay, Philippines

To maximize your solar PV system's energy output in Tanay, Philippines (Lat/Long 14.4955, 121.2864) throughout the year, you should tilt your panels at an angle of 12° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tanay, Philippines

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tanay, Philippines. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 12° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° North in Summer	20° South in Autumn	30° South in Winter	7° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tanay, Philippines

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tanay, Philippines.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tanay, Philippines

The topography around Tanay, Philippines, located at 14.4955 latitude and 121.2864 longitude, is characterized by a diverse landscape that includes both lowland and highland areas. Tanay is situated in the province of Rizal, on the eastern edge of Metro Manila, and is part of the Sierra Madre mountain range. The terrain in and around Tanay is primarily hilly and mountainous, with elevations ranging from about 100 meters above sea level in the lower areas to over 1,000 meters in the higher mountain regions. The town itself is nestled in a valley surrounded by these hills and mountains, which are covered in lush tropical vegetation. The area is known for its picturesque scenery, including rolling hills, steep cliffs, and numerous rivers and streams that cut through the landscape. To the east of Tanay, the terrain becomes increasingly rugged as it transitions into the Sierra Madre mountain range. This area is characterized by dense forests, deep valleys, and steep mountain slopes. To the west, the land gradually descends towards the shores of Laguna de Bay, the largest lake in the Philippines.

Potential Areas for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors need to be taken into account. These include available land area, exposure to sunlight, accessibility, and minimal environmental impact. The lowland areas to the west of Tanay, closer to Laguna de Bay, could potentially be suitable for solar PV installations. These areas generally have more open, flat terrain that would allow for easier construction and maintenance of solar panels. The lower elevation also means less cloud cover, which is beneficial for solar energy generation. Some of the gently sloping hillsides in the vicinity of Tanay might also be considered for solar PV projects. These areas could provide good sun exposure while minimizing the use of valuable agricultural land. However, care would need to be taken to avoid areas with dense forest cover or steep slopes, which could pose challenges for installation and maintenance. It's important to note that any large-scale solar PV project would require careful environmental assessment and planning. The rich biodiversity of the Sierra Madre mountain range and the importance of preserving forested areas for ecological balance would need to be taken into consideration. Additionally, local regulations and land use policies would play a crucial role in determining the feasibility and location of such projects. In conclusion, while the topography around Tanay presents some challenges for large-scale solar PV installations due to its mountainous nature, there are potential areas in the lower elevations and gentler slopes that could be suitable, subject to thorough environmental and feasibility studies.

Philippines solar PV Stats as a country

Philippines ranks 40th in the world for cumulative solar PV capacity, with 1,370 total MW's of solar PV installed. Each year Philippines is generating 13 Watts from solar PV per capita (Philippines ranks 71st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Philippines?

Yes, there are several incentives for businesses wanting to install solar energy in the Philippines. These include:

1. The Feed-in Tariff (FiT) program, which provides a guaranteed rate of return on investments in renewable energy projects;

2. Tax credits and exemptions from certain taxes;

3. Net metering programs that allow businesses to sell excess electricity back to the grid;

4. Grants and loans from government agencies such as the Department of Energy and the Philippine Solar Power Alliance;

5. Technical assistance from organizations like USAID’s Clean Energy Program; and

6. Access to financing through banks, venture capital firms, or other sources of private capital.

Do you have more up to date information than this on incentives towards solar PV projects in Philippines? Please reach out to us and help us keep this information current. Thanks!
