Solar Energy Potential in Tayabas, Calabarzon, Philippines

Tayabas, Calabarzon, located in the Philippines at coordinates 14.0253, 121.5928, presents generally favorable conditions for solar energy production throughout the year. This tropical location experiences consistent sunlight patterns with seasonal variations primarily defined by wet and dry periods rather than temperature extremes. The solar energy generation potential in Tayabas varies across seasons, with spring offering the highest productivity at 6.21kWh per day for each kilowatt of installed capacity. Summer follows with 5.20kWh/day, while autumn and winter show reduced output at 4.38kWh/day and 3.93kWh/day respectively. Spring emerges as the optimal period for solar generation in this location, likely coinciding with the transition from the dry season to early wet season when skies remain relatively clear with moderate temperatures. The significant drop in winter production suggests this period may align with the heart of the wet season when cloud cover is more prevalent. For maximizing year-round solar production in Tayabas, Calabarzon, fixed solar panels should be installed at a 12-degree tilt facing South. This specific angle has been calculated to optimize annual energy capture based on the location's position relative to the sun's path throughout the year.

Environmental Considerations

Several environmental factors could impact solar production in Tayabas:

• Typhoons and heavy rainfall during the wet season (typically June through November) can temporarily reduce solar output and potentially damage installations if not properly secured
• High humidity levels may cause accelerated degradation of components if not properly rated for tropical environments
• Volcanic ash from nearby active volcanoes can occasionally deposit on panels, reducing efficiency
• The mountainous terrain surrounding parts of Tayabas may create localized shading effects depending on specific installation sites

Preventative measures to enhance solar production include using typhoon-rated mounting systems with deeper foundations, implementing regular cleaning protocols to remove ash and dust deposits, selecting components with high humidity tolerance, and conducting thorough site assessments to avoid terrain-based shading. Additionally, incorporating micro-inverters or power optimizers can help mitigate partial shading issues in areas where surrounding topography might cast shadows during parts of the day. Despite these challenges, Tayabas remains a promising location for solar energy development, with annual average production figures indicating good potential for renewable energy generation, especially during the spring and summer months.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 268 locations across Philippines. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Philippines by location

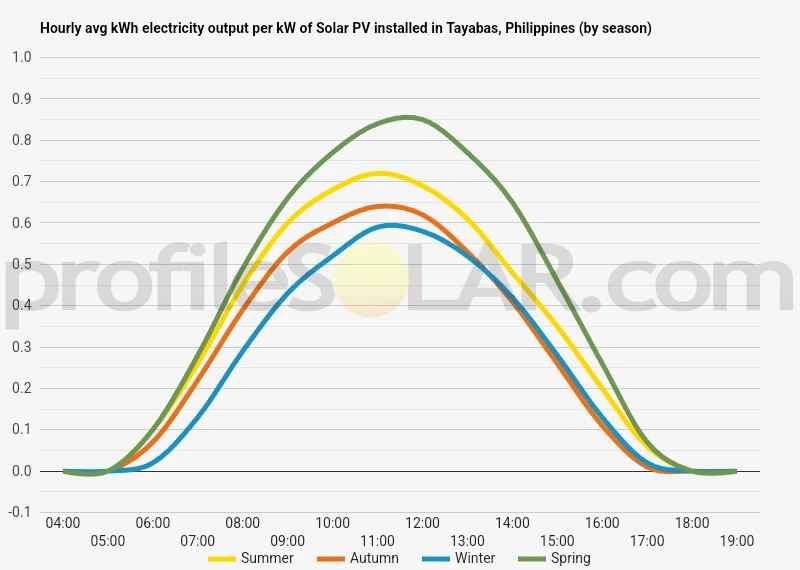

Solar output per kW of installed solar PV by season in Tayabas

Seasonal solar PV output for Latitude: 14.0253, Longitude: 121.5928 (Tayabas, Philippines), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 12° South in Tayabas, Philippines

To maximize your solar PV system's energy output in Tayabas, Philippines (Lat/Long 14.0253, 121.5928) throughout the year, you should tilt your panels at an angle of 12° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tayabas, Philippines

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tayabas, Philippines. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 12° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° North in Summer	20° South in Autumn	29° South in Winter	7° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tayabas, Philippines

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tayabas, Philippines.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tayabas, Philippines

The landscape around Tayabas, Philippines presents a diverse topographic profile characterized by a transition from coastal lowlands to mountainous terrain. Located in Quezon Province on the island of Luzon, Tayabas sits in a valley surrounded by significant elevations, with Mount Banahaw dominating the western skyline. This stratovolcano, though dormant, creates a dramatic backdrop rising to over 2,000 meters above sea level. To the north and east of Tayabas, the terrain gradually rises into rolling hills that eventually connect to the Sierra Madre mountain range, the longest mountain range in the Philippines. These foothills feature numerous small plateaus and gently sloping areas interspersed with river valleys. The Tayabas River and its tributaries have carved natural channels through the landscape, creating fertile alluvial plains that have historically supported agricultural activities in the region.

Solar PV Potential Areas

For large-scale solar photovoltaic installation, several nearby areas present favorable conditions based on their topographic features. The relatively flat agricultural lands extending southeast from Tayabas toward Lucena offer promising potential. These areas benefit from minimal shading from mountains and have already been developed for human use, minimizing additional environmental impact from solar installations. The elevated plateaus found in the northeastern direction toward Mauban also present viable options for solar development. These locations typically experience less cloud cover than the mountainous regions and maintain good exposure to solar radiation throughout the day. The gentle slopes in these areas would require minimal grading for installation, reducing construction costs.

Topographic Challenges

While the region offers several promising areas for solar development, certain topographic features present challenges. The western areas near Mount Banahaw experience more frequent cloud formation due to orographic lifting, potentially reducing solar exposure. Additionally, the steeper slopes found in the northern reaches toward the Sierra Madre would require significant terrain modification, increasing both environmental impact and development costs. The river valleys, though flat and accessible, may be prone to seasonal flooding and are often prioritized for agricultural use due to their fertile soils. These areas would generally be less suitable for large-scale solar installations despite their favorable grade. The southeastern coastal plains near Lucena and Pagbilao offer some of the most promising terrain for solar development, combining favorable topography with proximity to existing transmission infrastructure and transportation networks. These areas feature relatively flat terrain with minimal risk of shadowing from mountains, making them particularly well-suited for large-scale solar PV deployment.

Philippines solar PV Stats as a country

Philippines ranks 40th in the world for cumulative solar PV capacity, with 1,370 total MW's of solar PV installed. Each year Philippines is generating 13 Watts from solar PV per capita (Philippines ranks 71st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Philippines?

Yes, there are several incentives for businesses wanting to install solar energy in the Philippines. These include:

1. The Feed-in Tariff (FiT) program, which provides a guaranteed rate of return on investments in renewable energy projects;

2. Tax credits and exemptions from certain taxes;

3. Net metering programs that allow businesses to sell excess electricity back to the grid;

4. Grants and loans from government agencies such as the Department of Energy and the Philippine Solar Power Alliance;

5. Technical assistance from organizations like USAID’s Clean Energy Program; and

6. Access to financing through banks, venture capital firms, or other sources of private capital.

Do you have more up to date information than this on incentives towards solar PV projects in Philippines? Please reach out to us and help us keep this information current. Thanks!
