The location of Barcelos, Braga, Portugal, situated at 41.5329° N latitude and -8.6102° E longitude, offers varying potential for solar energy generation throughout the year. This Northern Temperate Zone location experiences significant seasonal fluctuations in solar output, which impacts the overall efficiency of solar PV systems.

Seasonal Solar Output

Solar energy production in Barcelos peaks during the summer months, with an impressive average daily output of 7.43 kWh per kW of installed solar capacity. Spring follows as the second most productive season, generating 6.09 kWh per day. However, autumn and winter see a substantial decrease in solar output, with 3.97 kWh and 2.19 kWh per day, respectively.

Optimal Times for Solar Generation

The most ideal period for solar energy production in Barcelos spans from late spring through early autumn. During these months, longer daylight hours and higher sun angles contribute to increased solar panel efficiency. Conversely, the winter months present challenges due to shorter days and lower sun angles, resulting in reduced energy output.

Panel Tilt Angle for Maximum Efficiency

To optimize year-round solar energy production in Barcelos, Braga, fixed solar panels should be installed at a tilt angle of 36 degrees facing south. This angle is calculated to maximize the total annual solar output, taking into account the location's latitude and the Earth's elliptical orbit.

Environmental and Weather Factors

While Barcelos generally offers favorable conditions for solar energy production, there are some factors that could potentially impact efficiency:

• Fog and coastal clouds: Being relatively close to the Atlantic coast, Barcelos may experience occasional fog or coastal cloud cover, particularly in the mornings. This can temporarily reduce solar output.
• Dust and pollen: The region's agricultural activities may lead to increased dust and pollen in the air, which can accumulate on solar panels and reduce their efficiency.

Preventative Measures

To mitigate these potential issues and ensure optimal solar energy production, consider implementing the following measures:

1. Regular cleaning: Establish a routine cleaning schedule for solar panels to remove dust, pollen, and other debris that may accumulate on their surface.

2. Anti-soiling coatings: Apply specialized coatings to the panels that help repel dust and make cleaning easier, maintaining higher efficiency levels between cleanings.

3. Smart monitoring systems: Install advanced monitoring systems that can detect drops in panel efficiency, allowing for prompt identification and resolution of any issues affecting solar output.

By addressing these factors and implementing appropriate preventative measures, solar PV systems in Barcelos can maintain higher levels of energy production throughout the year, despite seasonal variations and local environmental conditions.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 179 locations across Portugal. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Portugal by location

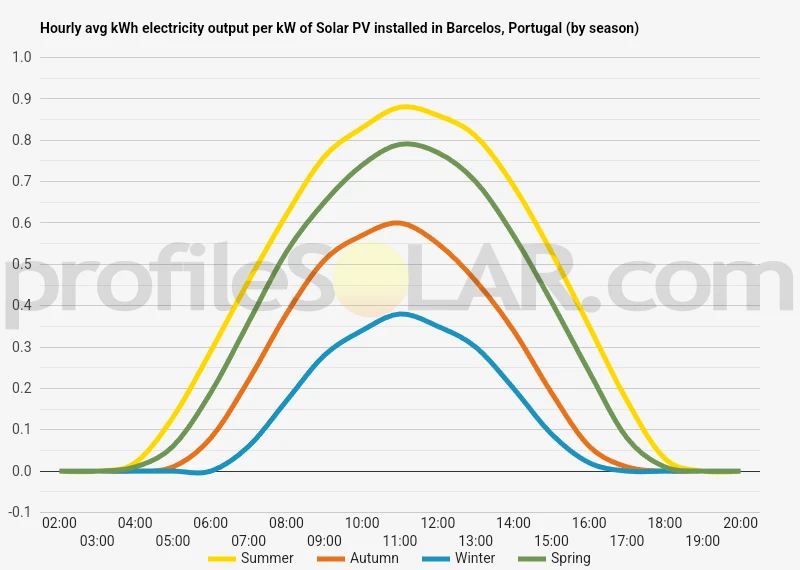

Solar output per kW of installed solar PV by season in Barcelos

Seasonal solar PV output for Latitude: 41.5329, Longitude: -8.6102 (Barcelos, Portugal), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Barcelos, Portugal

To maximize your solar PV system's energy output in Barcelos, Portugal (Lat/Long 41.5329, -8.6102) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Barcelos, Portugal

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Barcelos, Portugal. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	46° South in Autumn	57° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Barcelos, Portugal

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Barcelos, Portugal.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Barcelos, Portugal

The topography around Barcelos, Portugal, is characterized by a diverse landscape that combines rolling hills, river valleys, and fertile plains. Located in the northwestern part of the country, Barcelos sits in the heart of the Cávado River Valley, which has shaped much of the surrounding terrain over millennia. To the north and east of Barcelos, the land gradually rises into a series of gentle hills and low mountains. These elevations are part of the larger Peneda-Gerês mountain range, which extends further north into the country. The hills are often covered with lush vegetation, including forests of pine and eucalyptus, as well as areas of shrubland and grassland. Southward, the terrain becomes flatter, transitioning into the fertile plains of the Lima Valley. This area is known for its agricultural productivity, with numerous farms and vineyards dotting the landscape. The soil here is rich and well-suited for cultivation, thanks to centuries of alluvial deposits from the rivers that crisscross the region. The Cávado River, which flows through Barcelos, has carved a wide valley that dominates the immediate surroundings of the town. This river valley provides a natural corridor through the otherwise hilly terrain, creating areas of flat land along its banks.

Suitability for Large-Scale Solar PV

When considering areas near Barcelos for large-scale solar photovoltaic (PV) installations, several factors come into play. The most suitable locations would typically be: The southern plains: The flatter terrain south of Barcelos, extending towards the Lima Valley, offers expansive areas that could accommodate large solar arrays. These locations have the advantage of minimal shading from geographical features and potentially lower land costs compared to more developed areas. Elevated plateaus: Some of the higher, flatter areas in the hills to the north and east of Barcelos could be suitable for solar farms. These locations might benefit from increased solar exposure due to their elevation, although careful site selection would be necessary to avoid areas with steep slopes or dense forest cover. Abandoned agricultural land: Throughout the region, there may be parcels of former farmland that are no longer in use. These areas could be repurposed for solar energy production, offering a balance between suitable terrain and minimal impact on current agricultural activities. It's important to note that while these areas may be topographically suitable, other factors such as grid connectivity, local regulations, and environmental considerations would need to be thoroughly assessed before implementing any large-scale solar PV projects. Additionally, the region's climate, with its mix of sunny days and periods of cloud cover, would need to be factored into any solar energy planning.

Portugal solar PV Stats as a country

Portugal ranks 32nd in the world for cumulative solar PV capacity, with 1,801 total MW's of solar PV installed. This means that 3.40% of Portugal's total energy as a country comes from solar PV (that's 23rd in the world). Each year Portugal is generating 174 Watts from solar PV per capita (Portugal ranks 29th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Portugal?

Yes, there are several incentives for businesses wanting to install solar energy in Portugal. The Portuguese government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy sources such as solar power. These include grants, loans, and tax credits. Additionally, the government has set up a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to make investing in solar energy more attractive to businesses.

Do you have more up to date information than this on incentives towards solar PV projects in Portugal? Please reach out to us and help us keep this information current. Thanks!
