Solar Energy Potential in Porto Covo, Setúbal, Portugal

Porto Covo, Setúbal, a location on Portugal's western coast, offers promising conditions for solar energy generation throughout the year. This coastal area in the Northern Temperate Zone demonstrates significant seasonal variations in solar electricity production. The solar output at this location follows a predictable seasonal pattern. Summer stands out as the most productive period, with panels generating approximately 8.23kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season, yielding about 6.67kWh daily per kilowatt. Autumn production drops to 4.72kWh daily, while winter represents the lowest output period with just 2.76kWh per day for each kilowatt of installed solar capacity.

Optimal Panel Installation

For fixed solar panel installations in Porto Covo, Setúbal, the ideal tilt angle to maximize year-round energy production is 32 degrees facing South. This specific angle has been calculated based on the location's latitude and seasonal solar elevation patterns, weighted according to the daily photovoltaic potential at this site.

Environmental and Weather Considerations

While Porto Covo enjoys excellent solar conditions overall, there are some environmental factors to consider:

• Salt air exposure: Being a coastal location, salt spray can gradually degrade solar panels and mounting hardware. Using marine-grade materials and applying protective coatings can significantly extend equipment lifespan.
• Occasional Atlantic storms: The region may experience strong winds during winter storms. Ensuring panels are securely mounted with wind-resistant bracketing is essential.
• Dust and pollen accumulation: The combination of coastal winds and nearby vegetation can lead to dust and pollen buildup. Installing panels at the recommended 32-degree angle helps with natural rainfall cleaning, though periodic maintenance may still be necessary.

The seasonal variation indicates that supplementary energy sources might be beneficial during winter months when production drops to about one-third of summer levels. However, the annual average remains favorable compared to many other European locations, making Porto Covo a generally suitable site for solar PV installation.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 179 locations across Portugal. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Portugal by location

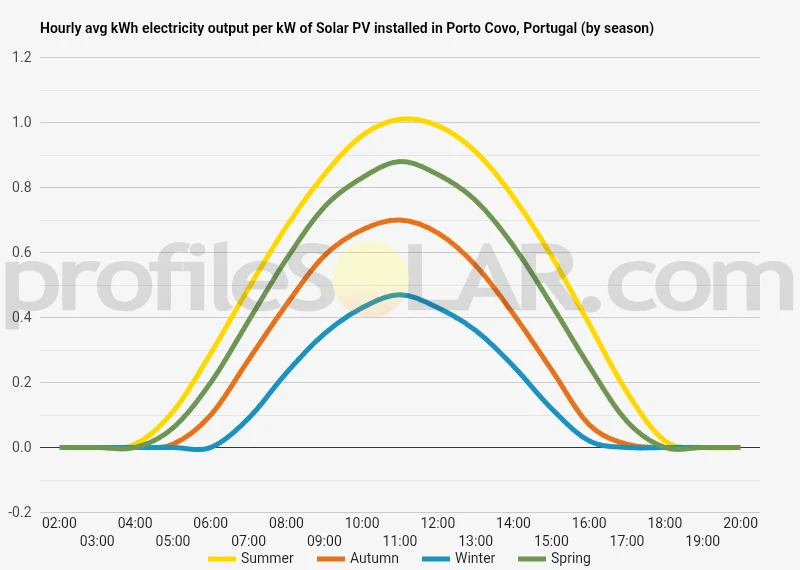

Solar output per kW of installed solar PV by season in Porto Covo

Seasonal solar PV output for Latitude: 37.8548, Longitude: -8.7954 (Porto Covo, Portugal), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 32° South in Porto Covo, Portugal

To maximize your solar PV system's energy output in Porto Covo, Portugal (Lat/Long 37.8548, -8.7954) throughout the year, you should tilt your panels at an angle of 32° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Porto Covo, Portugal

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Porto Covo, Portugal. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 32° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
22° South in Summer	42° South in Autumn	53° South in Winter	30° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Porto Covo, Portugal

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Porto Covo, Portugal.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Porto Covo, Portugal

Porto Covo is situated along the southwest coast of Portugal in the Alentejo region, characterized by a diverse and picturesque topography that combines coastal features with inland terrain variations. The landscape around Porto Covo presents a fascinating blend of natural elements that have been shaped over millennia by geological processes and the constant influence of the Atlantic Ocean. The immediate coastal area of Porto Covo features dramatic cliff formations that drop steeply to the sea, interspersed with small, sheltered sandy coves and beaches. These cliffs, predominantly composed of sedimentary rock, rise approximately 20-40 meters above sea level, creating a striking visual boundary between land and ocean. The coastline follows an irregular pattern, with numerous small bays and headlands that contribute to the area's scenic beauty. Moving inland from the coast, the terrain gradually transitions to gently rolling hills and plateaus. This area is characterized by a relatively flat to moderately undulating landscape with elevations typically ranging between 50-150 meters above sea level. The soil composition shifts from sandy coastal deposits to more substantial clay and loam mixtures that support the region's agricultural activities.

Topographical Features

The broader region surrounding Porto Covo includes several notable topographical elements. To the east, the terrain becomes increasingly elevated as it approaches the Serra do Cercal, a modest mountain range that runs parallel to the coast several kilometers inland. These hills reach heights of approximately 300-400 meters and create a natural backdrop to the coastal plain. Water features in the area include seasonal streams that have carved shallow valleys through the landscape, though permanent rivers are relatively scarce in this section of the Alentejo coast. Small freshwater ponds and reservoirs dot the countryside, many of which are human-made to support agricultural activities. Vegetation patterns closely follow the topographical variations. The coastal areas feature hardy, salt-tolerant species adapted to the maritime environment, while the inland hills support Mediterranean scrubland, scattered cork oak woodlands, and areas converted to agricultural use.

Solar PV Potential Areas

When considering areas near Porto Covo suitable for large-scale solar photovoltaic installations, several regions stand out based on their topographical characteristics. The inland plateaus east of Porto Covo present particularly favorable conditions. These areas combine several advantageous features: relatively flat terrain that minimizes construction challenges and shadow effects, good solar exposure without significant geological obstructions, and sufficient elevation to avoid coastal fog and salt spray that could potentially degrade solar equipment. Specifically, the gently undulating plains between Porto Covo and the towns of São Luís and Vila Nova de Milfontes offer expansive areas with ideal topographical conditions. These locations provide large, contiguous parcels of land with slopes generally less than 5 degrees—optimal for solar array installation without requiring extensive grading or terracing. The elevated plateaus northeast of Porto Covo, approaching but not entering the Serra do Cercal foothills, also present excellent opportunities. These areas benefit from their slightly higher elevation, which often places them above low-lying morning fog that can occasionally affect the immediate coastal zone. The soil composition in these regions—predominantly composed of well-draining materials—provides stable foundations for mounting systems without excessive construction requirements. Areas to avoid would include the immediate coastal cliffs due to their instability, environmental sensitivity, and exposure to corrosive sea spray, as well as the steeper sections of the Serra do Cercal where shadow effects and difficult access would complicate installation and reduce efficiency. Similarly, the limited river valleys with their potential for seasonal flooding and deeper soils more valuable for agriculture would be less suitable for solar development. The existing road network in the region generally provides good accessibility to these potential solar development areas, with the N120-1 and several secondary roads offering transportation corridors that could support construction and maintenance activities without requiring extensive new infrastructure development.

Portugal solar PV Stats as a country

Portugal ranks 32nd in the world for cumulative solar PV capacity, with 1,801 total MW's of solar PV installed. This means that 3.40% of Portugal's total energy as a country comes from solar PV (that's 23rd in the world). Each year Portugal is generating 174 Watts from solar PV per capita (Portugal ranks 29th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Portugal?

Yes, there are several incentives for businesses wanting to install solar energy in Portugal. The Portuguese government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy sources such as solar power. These include grants, loans, and tax credits. Additionally, the government has set up a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to make investing in solar energy more attractive to businesses.

Do you have more up to date information than this on incentives towards solar PV projects in Portugal? Please reach out to us and help us keep this information current. Thanks!
