Seixal, Setúbal, Portugal, located at 38.6482, -9.0902 in the Northern Temperate Zone, offers a promising location for solar PV energy generation with distinct seasonal variations in output. This coastal municipality near Lisbon demonstrates significant solar potential throughout the year, though with expected seasonal fluctuations.

Solar energy production in Seixal reaches its peak during summer months, generating an impressive 7.69kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 6.38kWh/day, while autumn delivers a moderate 4.46kWh/day. Winter, as expected, produces the least energy at 2.60kWh/day per kW installed.

For fixed solar panel installations in Seixal, Setúbal, the ideal tilt angle to maximize year-round energy production is 33 degrees facing South. This optimal angle has been calculated by analyzing solar elevation patterns at this specific latitude, weighted by daily photovoltaic potential to ensure maximum annual energy harvest.

Seasonal Considerations

The substantial difference between summer and winter production (nearly a 3:1 ratio) indicates that Seixal experiences typical Mediterranean seasonal variations. The location is particularly favorable from late spring through early autumn when solar radiation is most abundant. During these periods, solar systems will likely produce surplus energy that could be stored or fed back to the grid.

Despite the winter decline, Seixal's winter production of 2.60kWh/day per kW installed remains relatively good compared to many European locations at similar latitudes. This means that while supplementary energy sources might be beneficial during winter months, solar can still contribute meaningfully to the energy mix year-round.

Environmental and Weather Factors

Seixal's proximity to the Atlantic Ocean and the Tagus River estuary introduces some environmental considerations for solar installations. Salt spray from the nearby coastal areas could potentially accumulate on panel surfaces, gradually reducing efficiency if not addressed. Regular cleaning protocols should be implemented, possibly including automated cleaning systems for larger installations.

Morning fog and mist can occasionally develop in this riverside location, particularly during autumn and winter months, temporarily reducing early-day production. However, these typically dissipate as temperatures rise, limiting their overall impact on daily generation.

Dust accumulation presents another challenge, especially during the drier summer months when winds from the south can carry fine particles from Africa's Sahara Desert. Installing panels at the recommended 33-degree tilt helps with natural cleaning during rainfall, but periodic maintenance cleaning remains important for optimal performance.

To mitigate these environmental factors, the following preventative measures are recommended:

• Use marine-grade mounting hardware and protective coatings on electrical components to prevent salt-related corrosion
• Implement scheduled cleaning protocols, particularly before and after dust storm season
• Consider micro-inverter or power optimizer technology to minimize the impact of partial shading from morning fog
• Install monitoring systems to track performance and quickly identify any unexpected decreases in production

Overall, Seixal presents a highly favorable location for solar energy generation. With proper installation at the optimal 33-degree south-facing tilt and appropriate maintenance measures, solar PV systems in this location can be expected to deliver excellent year-round performance with particularly strong output during the six-month period from April through September.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 179 locations across Portugal. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Portugal by location

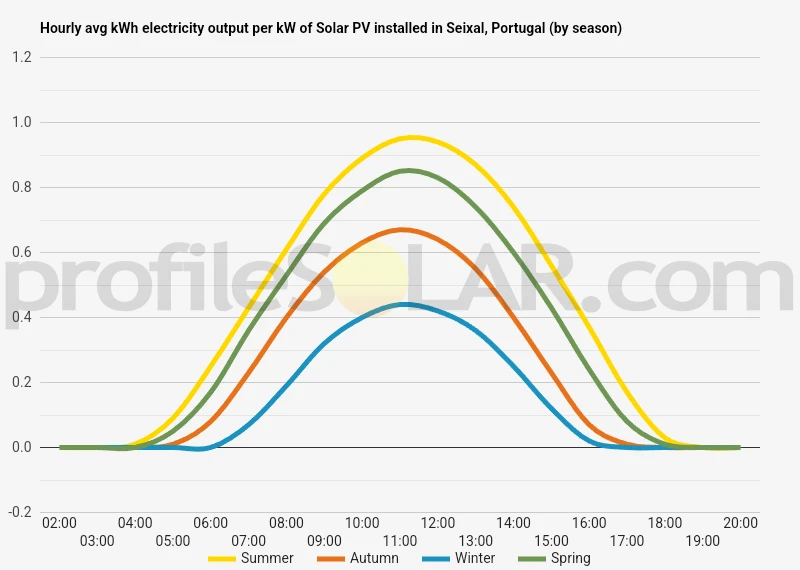

Solar output per kW of installed solar PV by season in Seixal

Seasonal solar PV output for Latitude: 38.6482, Longitude: -9.0902 (Seixal, Portugal), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 33° South in Seixal, Portugal

To maximize your solar PV system's energy output in Seixal, Portugal (Lat/Long 38.6482, -9.0902) throughout the year, you should tilt your panels at an angle of 33° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Seixal, Portugal

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Seixal, Portugal. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 33° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
22° South in Summer	43° South in Autumn	54° South in Winter	31° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Seixal, Portugal

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Seixal, Portugal.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Seixal, Portugal

The region around Seixal, Portugal presents an interesting topographical landscape shaped by its position on the southern bank of the Tagus River estuary. Seixal itself sits on relatively flat terrain at low elevation, with gentle slopes characterizing much of the immediate urban area. The municipality forms part of the Setúbal Peninsula, which features a mix of lowland coastal plains and modest inland hills.

Coastal Lowlands

The northern edge of Seixal borders the Tagus estuary, creating a distinctive coastal lowland area with several small bays and inlets. These areas are characterized by minimal elevation change, with much of the terrain sitting just a few meters above sea level. The waterfront zones include some wetland areas and reclaimed land that has been developed for industrial and urban use over time.

Central Plains and Urban Development

Moving south from the coast, Seixal's central areas consist primarily of gently undulating plains. This relatively flat terrain has facilitated urban development across much of the municipality. The modest relief in these areas ranges typically between 10-50 meters above sea level, with gradual transitions between elevation changes rather than steep slopes.

Southern Hills

The southern portions of the Seixal municipality and the broader Setúbal Peninsula begin to show more pronounced topographical features, with rolling hills becoming more common. These hills generally don't exceed 100-150 meters in elevation but provide more varied terrain than the northern coastal areas. The landscape transitions gradually toward the Serra da Arrábida mountain range further south on the peninsula, though these more dramatic mountains lie outside Seixal's boundaries.

Potential Areas for Solar PV Development

When considering large-scale solar photovoltaic installations, several areas around Seixal offer promising conditions based on topographical considerations: The central plains of Seixal provide excellent potential for solar development due to their relatively flat terrain, which minimizes installation complexity and cost. These areas offer good solar exposure with minimal shadowing effects from topographical features. The gentle slopes in some sections can actually be advantageous, particularly those with southern aspects that maximize solar radiation capture. Former industrial zones within the municipality present opportunities for solar development on brownfield sites. Seixal has a history of industrial activity, particularly related to steel manufacturing, and some of these flat, open areas could be repurposed for renewable energy generation. The slightly elevated terrain in southern parts of the municipality offers some advantages for solar installation. These areas typically experience less coastal fog and mist compared to the immediate waterfront zones, potentially increasing solar exposure. The modest hills in this region, while requiring more complex installation procedures, can be utilized with modern tracking systems to maximize energy capture. Areas to potentially avoid would include the immediate coastal wetlands, which have environmental sensitivity and potential flooding concerns, as well as the more densely urbanized sections where space constraints would limit large-scale development. The most optimal zones would likely be found in the transitional areas between the urban core and the southern hills, where open land may still be available and topographical conditions remain favorable with minimal shading concerns. Additionally, areas with proximity to existing electrical infrastructure would reduce connection costs for new solar installations.

Portugal solar PV Stats as a country

Portugal ranks 32nd in the world for cumulative solar PV capacity, with 1,801 total MW's of solar PV installed. This means that 3.40% of Portugal's total energy as a country comes from solar PV (that's 23rd in the world). Each year Portugal is generating 174 Watts from solar PV per capita (Portugal ranks 29th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Portugal?

Yes, there are several incentives for businesses wanting to install solar energy in Portugal. The Portuguese government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy sources such as solar power. These include grants, loans, and tax credits. Additionally, the government has set up a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to make investing in solar energy more attractive to businesses.

Do you have more up to date information than this on incentives towards solar PV projects in Portugal? Please reach out to us and help us keep this information current. Thanks!
