Sines Municipality in Portugal offers generally favorable conditions for solar energy generation throughout the year, though with significant seasonal variations that are typical for locations in the Northern Temperate Zone.

Seasonal Solar Performance

Summer represents the peak solar generation period at this location, producing 8.24 kWh per day per kW of installed solar capacity. This makes summer the most productive season, delivering nearly three times more energy than the winter months. Spring follows as the second-best season for solar generation, yielding 6.69 kWh per day per kW. This demonstrates that the location experiences strong solar potential during the warmer months when the sun is higher in the sky. Autumn production drops to 4.72 kWh per day per kW, while winter shows the lowest output at 2.78 kWh per day per kW. Despite this winter reduction, the location still maintains reasonable solar generation even during the least favorable season.

Optimal Installation Configuration

For maximum year-round energy production at Sines Municipality, Setúbal, solar panels should be installed at a fixed tilt angle of 32 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the year and weighting for solar irradiance data.

Environmental and Weather Considerations

Being located on Portugal's Atlantic coast, Sines Municipality faces several environmental factors that could impact solar panel performance:

• Salt air corrosion from ocean proximity can degrade panel frames and electrical components over time
• Coastal winds carrying sand and salt particles can create deposits on panel surfaces, reducing efficiency
• Atlantic weather systems may bring periods of cloud cover and storms that temporarily reduce solar output
• High humidity levels common in coastal areas can affect electrical connections and inverter performance

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these coastal challenges, several protective measures should be implemented:

• Choose panels and mounting systems with enhanced corrosion resistance, including marine-grade aluminum frames and stainless steel hardware
• Install panels with anti-reflective coatings that are easier to clean and more resistant to salt buildup
• Establish regular cleaning schedules to remove salt deposits and maintain optimal light transmission
• Use weatherproof electrical enclosures and connections rated for high-humidity coastal environments
• Consider slightly steeper mounting angles to promote natural cleaning from rainfall
• Implement monitoring systems to quickly identify performance drops due to environmental factors

Despite these coastal considerations, Sines Municipality remains a viable location for solar energy generation, particularly during the extended period from spring through autumn when production levels are substantial.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 179 locations across Portugal. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Portugal by location

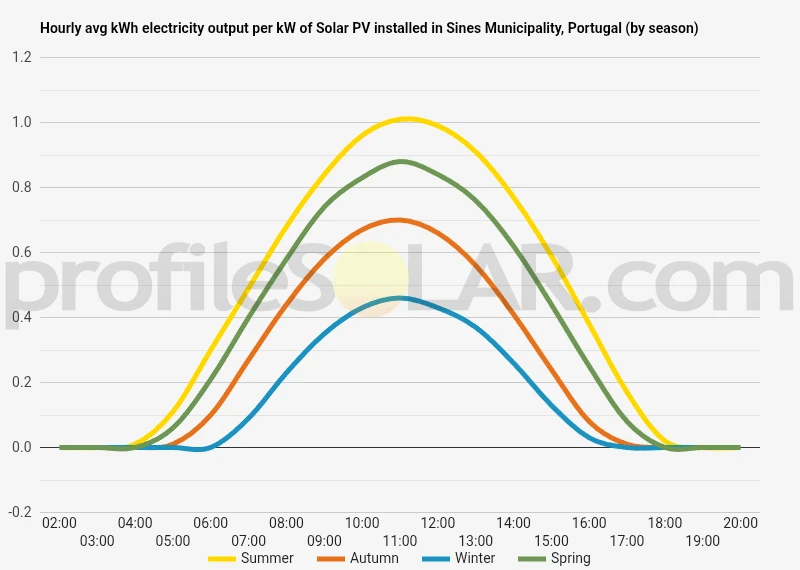

Solar output per kW of installed solar PV by season in Sines Municipality

Seasonal solar PV output for Latitude: 37.9525, Longitude: -8.8681 (Sines Municipality, Portugal), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 32° South in Sines Municipality, Portugal

To maximize your solar PV system's energy output in Sines Municipality, Portugal (Lat/Long 37.9525, -8.8681) throughout the year, you should tilt your panels at an angle of 32° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Sines Municipality, Portugal

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sines Municipality, Portugal. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 32° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
22° South in Summer	42° South in Autumn	53° South in Winter	30° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Sines Municipality, Portugal

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sines Municipality, Portugal.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Sines Municipality, Portugal

Topography Around Sines Municipality

Sines Municipality sits along Portugal's southwestern Atlantic coast, characterized by a predominantly flat to gently rolling landscape that extends inland from the dramatic coastline. The terrain features low-lying coastal plains that gradually transition into slightly elevated plateaus as one moves eastward away from the ocean. The elevation rarely exceeds 200 meters above sea level throughout most of the municipality, creating an expansive, open landscape with minimal topographical obstacles.

The coastal area itself presents striking cliffs and rocky headlands that drop sharply into the Atlantic Ocean, but these dramatic features give way quickly to the smoother inland terrain. The region forms part of the broader Alentejo coastal plain, where gentle undulations and shallow valleys create a mosaic of agricultural lands and natural vegetation. Small seasonal streams cut modest channels through the landscape, though these watercourses rarely create significant topographical barriers or steep-sided valleys.

The soil composition varies from sandy deposits near the coast to clay and limestone-based soils further inland. Much of the area supports Mediterranean scrubland, known locally as montado, interspersed with cultivated fields and olive groves. The relatively uniform elevation and sparse tree coverage across large sections of the municipality create excellent visibility across the landscape, with few natural obstructions to block views or cast shadows over extended areas.

Optimal Areas for Large-Scale Solar Development

The inland plateaus extending eastward from Sines present the most promising locations for large-scale solar photovoltaic installations. These elevated areas, typically ranging from 50 to 150 meters above sea level, offer stable, well-drained ground with minimal slope variation. The consistent elevation provides protection from coastal moisture and salt spray while maintaining excellent exposure to incoming solar radiation throughout the day.

The agricultural plains northeast of the main urban center represent particularly suitable terrain, where existing field boundaries could accommodate solar arrays with minimal landscape modification. These areas benefit from established road networks that would facilitate construction and maintenance access, while being sufficiently removed from residential areas to minimize visual impact concerns.

Areas southeast of Sines, toward the interior of the Alentejo region, offer additional advantages for solar development. The terrain becomes increasingly uniform and open, with fewer existing structures or intensive agricultural operations that might complicate land acquisition or installation processes. The gentle southern-facing slopes in this direction provide optimal orientation for solar panel placement while maintaining the stable geological conditions necessary for large-scale infrastructure.

The proximity to existing electrical infrastructure, including transmission lines serving the industrial facilities around Sines port, creates additional strategic advantages for connecting large solar installations to the national grid. The combination of suitable topography, favorable orientation, and existing infrastructure makes the inland areas surrounding Sines particularly well-positioned for significant renewable energy development projects.

Portugal solar PV Stats as a country

Portugal ranks 32nd in the world for cumulative solar PV capacity, with 1,801 total MW's of solar PV installed. This means that 3.40% of Portugal's total energy as a country comes from solar PV (that's 23rd in the world). Each year Portugal is generating 174 Watts from solar PV per capita (Portugal ranks 29th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Portugal?

Yes, there are several incentives for businesses wanting to install solar energy in Portugal. The Portuguese government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy sources such as solar power. These include grants, loans, and tax credits. Additionally, the government has set up a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to make investing in solar energy more attractive to businesses.

Do you have more up to date information than this on incentives towards solar PV projects in Portugal? Please reach out to us and help us keep this information current. Thanks!
