Vagos, Aveiro, Portugal, situated at latitude 40.5569 and longitude -8.6766, presents a promising location for solar energy generation through photovoltaic (PV) systems. Located in the Northern Temperate Zone, this area experiences distinct seasonal variations in solar energy production.

Seasonal Solar Output

The solar energy potential in Vagos fluctuates significantly throughout the year. Summer stands out as the most productive season, with an impressive daily output of 7.45 kWh per kW of installed solar capacity. Spring follows closely, generating 6.03 kWh/day. Autumn sees a moderate decrease to 4.03 kWh/day, while winter experiences the lowest production at 2.29 kWh/day.

These figures indicate that Vagos is particularly well-suited for solar energy generation during the warmer months, from late spring through early autumn. This period offers extended daylight hours and typically clearer skies, maximizing the potential for solar energy harvesting.

Optimal Panel Installation

To maximize year-round solar energy production in Vagos, Aveiro, fixed solar panels should be installed at a tilt angle of 35 degrees facing south. This optimal angle has been calculated considering the location's latitude, seasonal sun paths, and daily solar elevation angles, ensuring the best possible exposure to sunlight throughout the year.

Environmental and Weather Considerations

While Vagos generally offers favorable conditions for solar energy production, there are a few factors to consider:

1. Coastal proximity: Vagos' location near the Atlantic coast may expose solar installations to salt spray, potentially accelerating corrosion of equipment.
2. Winter fog: The region can experience foggy conditions during winter months, which may temporarily reduce solar panel efficiency.

To mitigate these challenges, installers should consider using corrosion-resistant materials and applying protective coatings to solar panels and mounting systems. Regular cleaning and maintenance can also help maintain optimal performance, especially in addressing salt accumulation or fog-related residue.

Despite these minor considerations, Vagos remains an excellent location for solar PV installations. With proper planning and maintenance, the area's strong solar potential, particularly during the warmer months, can be effectively harnessed to generate significant clean energy throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 179 locations across Portugal. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Portugal by location

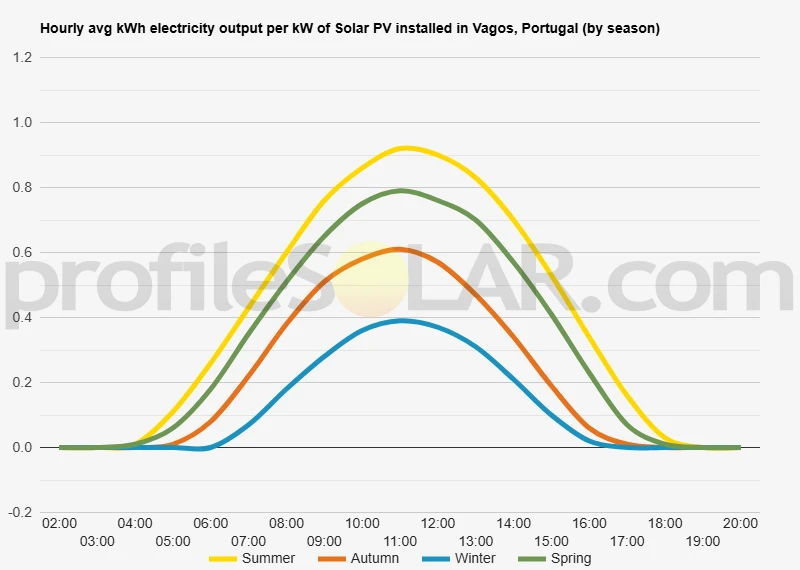

Solar output per kW of installed solar PV by season in Vagos

Seasonal solar PV output for Latitude: 40.5569, Longitude: -8.6766 (Vagos, Portugal), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Vagos, Portugal

To maximize your solar PV system's energy output in Vagos, Portugal (Lat/Long 40.5569, -8.6766) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Vagos, Portugal

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Vagos, Portugal. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	45° South in Autumn	56° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Vagos, Portugal

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Vagos, Portugal.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Vagos, Portugal

The area surrounding Vagos, Portugal, located at coordinates 40.5569, -8.6766, is characterized by a diverse and gently undulating topography. This region, situated in the Aveiro District of central Portugal, features a mix of coastal lowlands and rolling hills as you move inland from the Atlantic Ocean. Near the coast, where Vagos is located, the terrain is predominantly flat to slightly undulating. This area is part of the Aveiro Lagoon system, known locally as Ria de Aveiro. The landscape here is marked by a network of channels, salt marshes, and sandy beaches. As you move slightly inland, the terrain gradually rises, forming gentle slopes and low hills.

Topographical Features

The eastern part of the region sees a more pronounced increase in elevation, with hills becoming more prominent. These hills, while not particularly high, provide a contrast to the coastal flatlands. The area is also crisscrossed by several small rivers and streams, which have carved shallow valleys into the landscape over time. Agricultural fields dominate much of the land use in this region, taking advantage of the fertile soils and relatively flat terrain. Interspersed among these fields are patches of forest, particularly pine and eucalyptus plantations, which become more common as you move further inland and uphill.

Suitability for Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations would combine favorable topography with good solar exposure and minimal environmental impact. The gently sloping areas just inland from Vagos present promising opportunities for solar PV development. These areas offer a good balance of elevation and exposure, with slopes that can be oriented towards the south for optimal solar gain. The slightly elevated terrain also reduces the risk of flooding or waterlogging, which could be a concern closer to the coast. Agricultural lands that are less productive or fallow could be potential sites for solar farms. However, care should be taken to balance energy production with food security and local agricultural needs. Areas to the east and northeast of Vagos, where the terrain becomes more hilly, might offer good locations for solar installations. These hills could provide natural screening and potentially reduce visual impact on the landscape. However, steeper slopes would need to be carefully assessed for stability and ease of construction. It's important to note that while the topography around Vagos offers potential for solar PV development, any large-scale installations would need to be carefully planned. Considerations would include environmental impact assessments, grid connectivity, and local community engagement to ensure sustainable and beneficial development for the region.

Portugal solar PV Stats as a country

Portugal ranks 32nd in the world for cumulative solar PV capacity, with 1,801 total MW's of solar PV installed. This means that 3.40% of Portugal's total energy as a country comes from solar PV (that's 23rd in the world). Each year Portugal is generating 174 Watts from solar PV per capita (Portugal ranks 29th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Portugal?

Yes, there are several incentives for businesses wanting to install solar energy in Portugal. The Portuguese government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy sources such as solar power. These include grants, loans, and tax credits. Additionally, the government has set up a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to make investing in solar energy more attractive to businesses.

Do you have more up to date information than this on incentives towards solar PV projects in Portugal? Please reach out to us and help us keep this information current. Thanks!
