Solar PV Analysis of Ajalvir, Spain
Ajalvir, Madrid, Spain, located at latitude 40.5324 and longitude -3.4735, offers a moderately favorable environment for solar PV energy generation throughout the year. Situated in the Northern Temperate Zone, this location experiences distinct seasonal variations in solar energy production.
Seasonal Solar Performance
The solar PV output at Ajalvir varies significantly across seasons. Summer stands out as the most productive period, with an impressive daily output of 8.02 kWh per kW of installed solar capacity. Spring follows as the second-best season, generating 5.89 kWh/day. Autumn sees a noticeable decrease in production at 4.12 kWh/day, while winter experiences the lowest output at 2.52 kWh/day.
These figures indicate that Ajalvir is particularly well-suited for solar energy generation during the warmer months, from late spring through early autumn. The extended daylight hours and higher sun angles during this period contribute to the increased energy production.
Optimal Panel Installation
For fixed panel installations in Ajalvir, Madrid, the ideal tilt angle to maximize year-round solar production is 35 degrees facing South. This angle is calculated based on the location's latitude and accounts for the Earth's elliptical orbit, ensuring optimal exposure to sunlight throughout the year.
Environmental and Weather Considerations
While Ajalvir generally offers favorable conditions for solar energy production, there are some factors to consider:
- Dust and pollen: The region may experience periods of increased dust and pollen, which can accumulate on solar panels and reduce efficiency.
- Occasional extreme weather: Though rare, hailstorms or heavy snowfall could potentially damage or temporarily reduce panel efficiency.
To mitigate these issues, regular panel cleaning and maintenance should be scheduled. Installing panels at the optimal angle also helps with natural cleaning during rainfall. For areas prone to hail, consider using impact-resistant panels or protective covers during severe weather events.
Overall, Ajalvir presents a good location for solar PV installations, with strong potential during summer and spring months. While winter production is notably lower, the yearly average remains favorable for solar energy generation.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Spain by location

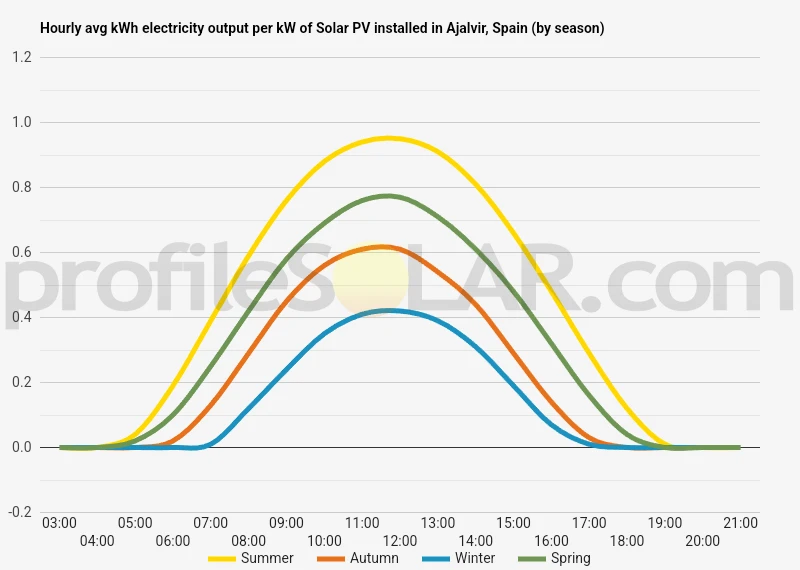

Solar output per kW of installed solar PV by season in Ajalvir
Seasonal solar PV output for Latitude: 40.5324, Longitude: -3.4735 (Ajalvir, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 35° South in Ajalvir, Spain
To maximize your solar PV system's energy output in Ajalvir, Spain (Lat/Long 40.5324, -3.4735) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Ajalvir, Spain
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ajalvir, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 25° South in Summer | 45° South in Autumn | 55° South in Winter | 33° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Ajalvir, Spain
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ajalvir, Spain.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Ajalvir, Spain
The area around Ajalvir, Spain, is characterized by gently rolling terrain typical of the central Iberian Peninsula. Located in the Community of Madrid, this region sits on a high plateau known as the Meseta Central, with an average elevation of around 600 to 700 meters above sea level.
The landscape surrounding Ajalvir features a mix of agricultural fields, scattered woodlands, and low hills. The terrain is generally open and relatively flat, with some gentle slopes and shallow valleys. This type of topography is often referred to as "undulating plains." The nearby Jarama River and its tributaries have carved some shallow depressions in the landscape over time.
For large-scale solar PV installations, the areas most suited would be the open, flat or gently sloping lands to the east and southeast of Ajalvir. These areas offer several advantages for solar energy production:
- They have minimal shading from natural features or buildings.
- The gentle slopes, if facing south, can provide an optimal angle for solar panels without requiring extensive grading.
- The open terrain allows for easy access and installation of large arrays of solar panels.
- There is less competition for land use compared to more densely populated areas closer to Madrid city.
The regions between Ajalvir and neighboring towns like Daganzo de Arriba and Cobeña could be particularly suitable. These areas have expansive agricultural lands that could potentially be converted or dual-purposed for solar energy production. However, it's important to note that any large-scale solar development would need to balance energy production goals with preserving agricultural land and local ecosystems.
The climate in this region is also favorable for solar energy, with abundant sunshine throughout the year. The relatively high elevation of the Meseta Central contributes to clear skies and strong solar radiation, further enhancing the potential for solar PV installations.
Spain solar PV Stats as a country
Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Spain?
Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:
1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.
2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.
3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.
4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.
Do you have more up to date information than this on incentives towards solar PV projects in Spain? Please reach out to us and help us keep this information current. Thanks!
