Antequera, Spain presents a highly favorable location for year-round solar photovoltaic energy generation, situated in the Northern Temperate Zone at coordinates 37.0232°N, -4.5638°W. This Andalusian location benefits from Spain's renowned solar resources, making it an excellent choice for solar installations.

Seasonal Solar Production Performance

The solar energy output at Antequera varies significantly across the seasons, reflecting the natural patterns of solar irradiance throughout the year. Summer delivers the highest production at 8.22 kWh per day per kW of installed capacity, making it the peak season for solar generation. This exceptional summer performance is typical of Mediterranean climates where clear skies and high sun angles combine to maximize energy output. Spring emerges as the second-best season with 6.32 kWh per day per kW, demonstrating that shoulder seasons can still provide substantial energy generation. The mild weather and increasing daylight make spring an excellent period for solar production. Autumn follows with 4.56 kWh per day per kW, still providing decent energy yields as the sun angle decreases but weather conditions remain generally favorable. Winter presents the lowest output at 2.92 kWh per day per kW, which is expected given the reduced solar angles and shorter days typical of the season. However, even these winter figures represent reasonable production levels compared to many northern European locations.

Optimal Installation Configuration

For fixed panel installations at Antequera, the ideal tilt angle is 32 degrees facing south to maximize total year-round solar production. This angle is calculated using a sophisticated method that considers daily solar elevation angles at the specific latitude, calculates optimal panel tilt for each day, and weights these angles by daily photovoltaic potential using NASA solar irradiance data to determine the annual average.

Environmental and Weather Factors

Several local factors could potentially impact solar production at Antequera, though most can be effectively managed through proper installation practices. Dust accumulation represents the most significant challenge in this inland Andalusian location. The region's dry climate and occasional dust storms from North Africa can deposit fine particles on solar panels, reducing their efficiency. Regular cleaning schedules and the installation of automated cleaning systems can effectively address this issue. Positioning panels at the recommended 32-degree tilt also helps with natural rain-washing of accumulated dust. High summer temperatures, while contributing to excellent solar irradiance, can reduce panel efficiency as photovoltaic cells lose effectiveness in extreme heat. Ensuring adequate ventilation behind panels through proper mounting systems with sufficient air gaps helps maintain optimal operating temperatures. Choosing panels with better temperature coefficients can also minimize heat-related efficiency losses. The region experiences occasional intense rainfall during autumn and winter months, though this generally benefits solar installations by naturally cleaning the panels. Proper drainage systems around ground-mounted installations prevent water accumulation that could cause foundation issues. Wind exposure on elevated or exposed sites requires robust mounting systems designed to withstand local wind loads. Professional installation using appropriately rated mounting hardware ensures panels remain secure during adverse weather conditions.

Preventative Installation Measures

To maximize energy production at Antequera, several installation strategies prove beneficial:

• Install panels with adequate spacing for air circulation to combat heat buildup
• Implement regular cleaning protocols or automated cleaning systems to address dust accumulation
• Use high-quality mounting systems rated for local wind conditions
• Ensure proper drainage around ground-mounted systems
• Select panels with superior temperature coefficients for hot climate performance

Overall, Antequera represents an excellent location for solar energy generation, with the seasonal variations providing strong production for most of the year and manageable challenges that can be addressed through proper installation and maintenance practices.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

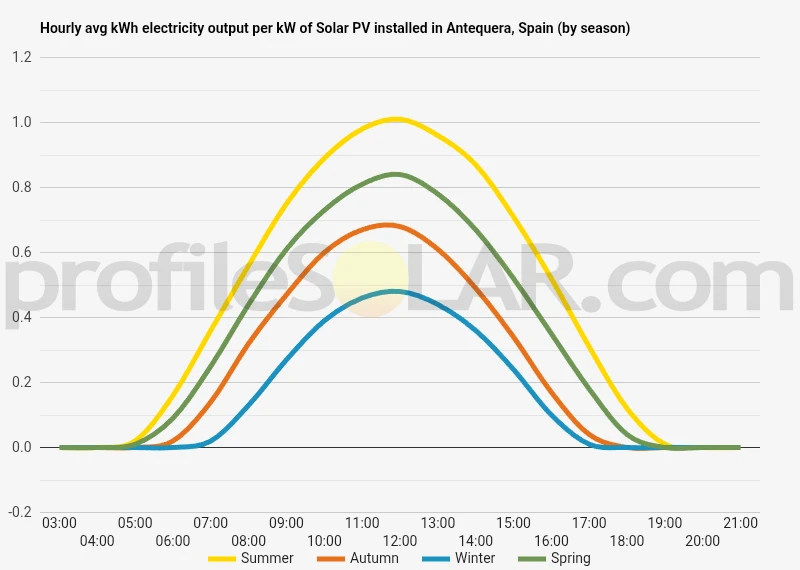

Solar output per kW of installed solar PV by season in Antequera

Seasonal solar PV output for Latitude: 37.0232, Longitude: -4.5638 (Antequera, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 32° South in Antequera, Spain

To maximize your solar PV system's energy output in Antequera, Spain (Lat/Long 37.0232, -4.5638) throughout the year, you should tilt your panels at an angle of 32° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Antequera, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Antequera, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 32° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
21° South in Summer	41° South in Autumn	52° South in Winter	30° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Antequera, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Antequera, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Antequera, Spain

Topographical Features of Antequera

Antequera sits in the heart of Andalusia at an elevation of approximately 575 meters above sea level, positioned strategically in a natural corridor between mountain ranges. The city occupies a gently undulating plateau known as the Antequera Depression, which forms part of the broader Guadalquivir Basin. This depression creates a relatively flat to gently rolling landscape that extends in multiple directions from the urban center.

The terrain around Antequera is characterized by gentle hills and broad valleys, with the landscape gradually rising toward more dramatic mountain formations in the distance. To the north, the land slopes upward toward the Sierra de la Camorra, while the famous El Torcal limestone massif rises dramatically to the south, creating a stark contrast with its unique karst formations and vertical rock pillars. The western approaches feature more gradual topographical changes, with rolling agricultural land extending toward the Guadalquivir valley system.

The soil composition varies across the region, with fertile alluvial deposits in the valley floors and clay-rich soils on the hillsides. Much of the surrounding countryside consists of cultivated agricultural land, including extensive olive groves and cereal crops, interspersed with areas of Mediterranean scrubland and occasional patches of oak woodland.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Antequera lie in the gently rolling plains to the west and northwest of the city. These areas offer several advantages including relatively flat terrain that minimizes grading requirements, good accessibility via existing road networks, and sufficient distance from the more sensitive landscape areas around El Torcal.

The agricultural plateau extending toward the municipalities of Mollina and Humilladero presents particularly favorable conditions. The terrain here consists of broad, gently sloping fields with minimal tree cover and existing agricultural access roads that could facilitate construction and maintenance activities. The land use is predominantly agricultural, which often presents fewer planning constraints compared to natural or semi-natural habitats.

Areas to the southwest, in the direction of the Fuente de Piedra lagoon system, also offer suitable topographical conditions, though environmental considerations related to the nearby wetland areas would require careful assessment. The terrain remains relatively flat and open, with good southern exposure across much of the landscape.

The eastern approaches toward the Sierra del Hacho present mixed opportunities, with some suitable flat areas closer to Antequera, though the terrain becomes increasingly challenging as it approaches the mountain foothills. The northern sectors, while offering some flat areas, tend to have more complex topography with steeper slopes and deeper valley systems that would be less suitable for large-scale solar development.

The key advantage of the Antequera area for solar development lies in its position within the natural depression, which provides extensive areas of relatively flat land with minimal shading from surrounding topographical features, while maintaining good drainage characteristics that are important for long-term installation stability.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.

Do you have more up to date information than this on incentives towards solar PV projects in Spain? Please reach out to us and help us keep this information current. Thanks!
