Solar Energy Potential in Archidona, Spain

Archidona, Spain, located at coordinates 37.0981, -4.3851 in the Northern Temperate Zone, offers a promising location for solar PV energy generation throughout the year. This Andalusian town benefits from Spain's abundant sunshine, though with notable seasonal variations in energy production potential. The seasonal solar energy production in Archidona shows significant fluctuations. Summer stands out as the most productive period, generating an impressive 8.22kWh per day for each kilowatt of installed solar capacity. Spring follows as the second most productive season with 6.32kWh/day, while autumn delivers a moderate 4.56kWh/day. Winter, as expected, produces the least energy at 2.90kWh/day per kW installed.

Seasonal Performance

The substantial difference between summer and winter production (nearly three times more energy in summer) indicates that Archidona experiences classic Mediterranean seasonal patterns. The location is particularly ideal for solar energy generation from late spring through early autumn when days are longer and skies are typically clearer. For optimal year-round performance with fixed panel installations in Archidona, panels should be tilted at 32 degrees facing South. This specific angle has been calculated to maximize total annual energy production, taking into account the location's latitude and seasonal solar patterns.

Environmental Factors and Mitigation Strategies

Several environmental factors could potentially impact solar production in Archidona:

• Dust and pollen: The rural and agricultural setting of Andalusia means panels can accumulate dust and pollen, particularly during dry summer months and spring flowering seasons. Regular cleaning and maintenance schedules are essential.
• Occasional extreme heat: Summer temperatures in southern Spain can exceed 40°C, which can reduce panel efficiency. Installing panels with sufficient spacing for airflow and selecting heat-resistant models can help mitigate this issue.
• Infrequent but intense rainfall: While relatively rare, heavy rainfall events can temporarily reduce output and potentially cause soil erosion around ground-mounted systems. Proper drainage systems and secure mounting are important considerations.

Despite these factors, Archidona remains an excellent location for solar PV installations. The high summer and spring production values can significantly offset the lower winter generation, making it a viable location for year-round solar energy harvesting, particularly for grid-connected systems that don't rely exclusively on solar power during winter months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

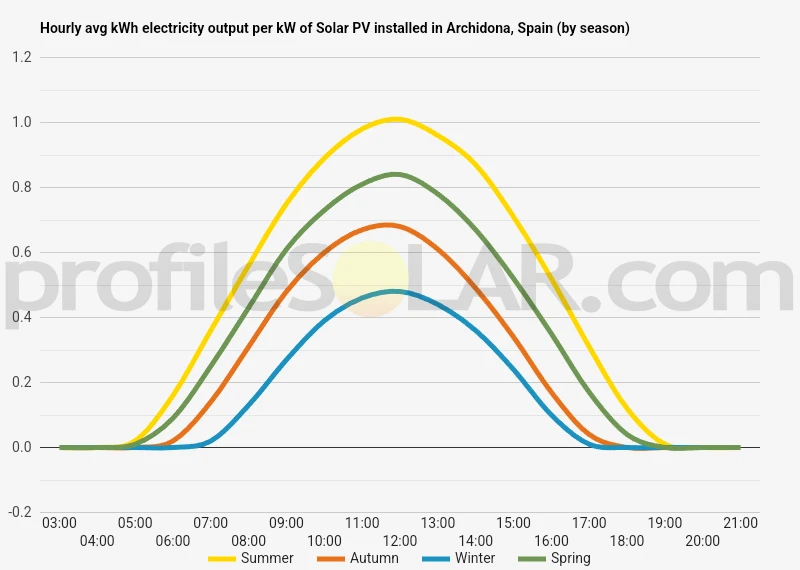

Solar output per kW of installed solar PV by season in Archidona

Seasonal solar PV output for Latitude: 37.0981, Longitude: -4.3851 (Archidona, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 32° South in Archidona, Spain

To maximize your solar PV system's energy output in Archidona, Spain (Lat/Long 37.0981, -4.3851) throughout the year, you should tilt your panels at an angle of 32° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Archidona, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Archidona, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 32° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
21° South in Summer	42° South in Autumn	52° South in Winter	30° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Archidona, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Archidona, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Archidona, Spain

Archidona is situated in the province of Málaga in Andalusia, southern Spain. The topography around Archidona is characterized by a diverse landscape of rolling hills, mountains, and valleys, creating a picturesque setting typical of inland Andalusia. The town itself sits at approximately 700 meters above sea level and is nestled at the foot of the Sierra de Gracia mountain range. This strategic position has historically provided Archidona with natural protection and commanding views of the surrounding countryside.

Mountain Ranges and Elevations

To the north and east of Archidona rise the impressive formations of the Subbetic mountain system, part of the larger Baetic Cordillera that runs through southern Spain. These limestone mountains create a dramatic backdrop to the town, with some peaks in the vicinity reaching over 1,000 meters in elevation. The Sierra de Archidona, a small mountain range immediately adjacent to the town, features the distinctive Peña de los Enamorados (Lovers' Rock), a limestone mountain with a profile resembling a human face when viewed from certain angles. This landmark rises to about 880 meters and is visible from considerable distances across the surrounding plains.

Plains and Agricultural Areas

Extending southward and westward from Archidona are more gentle undulating plains and valleys. These areas, known locally as the Antequera Basin, feature fertile lands that have been cultivated for centuries, primarily with olive groves, cereal crops, and some vineyards. The transition between the mountainous terrain and these plains creates a varied landscape with different elevations, slopes, and exposures to sunlight. The plains generally lie at elevations of 400-600 meters above sea level.

Hydrography

The area around Archidona contains several small rivers and streams that form part of the Guadalhorce river basin. These waterways have carved valleys through the landscape over millennia, creating natural corridors between the higher elevations. Several reservoirs can also be found in the broader region, including the Iznajar Reservoir to the northeast, which is the largest in Andalusia. These water bodies influence the local topography and microclimates.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, the plains to the south and southwest of Archidona offer particularly favorable conditions. These areas combine several advantageous characteristics: The relatively flat terrain of the Antequera Basin provides large contiguous spaces that would require minimal grading or earthwork for installation of solar arrays. This significantly reduces construction costs and environmental impact compared to more rugged terrain. These plains generally have minimal shading from mountains or hills, ensuring consistent exposure to sunlight throughout the day. The gentle south-facing slopes found in parts of this region are especially advantageous, as they naturally orient toward the sun's path. The agricultural land in these areas, while productive, is less intensively cultivated than Spain's prime agricultural regions, potentially offering opportunities for dual-use solar installations that allow for continued agricultural activity beneath or between solar panels. The existing network of roads and proximity to electrical infrastructure in these plains also makes them logistically suitable for solar development, with reasonable access for construction and maintenance vehicles and shorter distances for grid connection. Areas to potentially avoid would include the steeper mountain slopes to the north and east, where installation would be technically challenging and more environmentally disruptive. Additionally, areas immediately surrounding the historical center of Archidona might face restrictions due to cultural heritage preservation concerns. The region's elevation (400-700 meters in the plains) contributes to slightly cooler temperatures compared to coastal areas of Málaga, which is beneficial for solar panel efficiency, as photovoltaic performance decreases in extreme heat.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.

Do you have more up to date information than this on incentives towards solar PV projects in Spain? Please reach out to us and help us keep this information current. Thanks!
