Chiclana de la Frontera, Spain offers excellent conditions for year-round solar energy generation, making it one of the more favorable locations in Europe for solar photovoltaic installations. Located in the Northern Temperate Zone along Spain's southern coast, this area benefits from abundant sunshine throughout most of the year.

Seasonal Solar Performance

The solar energy output varies significantly across the seasons at this location. Summer provides the peak performance period, delivering an impressive 8.19 kWh per day for each kilowatt of installed solar capacity. Spring follows as the second-best season with 6.70 kWh per day per kilowatt, offering nearly as favorable conditions for solar generation. Autumn sees a notable decline in solar production, dropping to 4.80 kWh per day per kilowatt, while winter represents the lowest output period at 3.03 kWh per day per kilowatt. Despite this winter reduction, the location still maintains reasonable solar generation even during the least productive months.

Optimal Installation Configuration

For maximum year-round energy production at Chiclana de la Frontera, solar panels should be installed at a fixed tilt angle of 31 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the year and the location's specific latitude.

Environmental Factors and Challenges

Several local environmental factors could potentially impact solar energy production at this coastal location:

• Salt air corrosion: Being located near the Atlantic coast, solar installations face exposure to salt-laden air that can corrode metal components and degrade electrical connections over time
• Dust and sand accumulation: The proximity to beaches and the regional climate can lead to dust and fine sand particles settling on solar panels, reducing their efficiency
• High humidity: Coastal humidity levels may affect electrical components and create condensation issues
• Strong coastal winds: The area can experience significant wind speeds that may stress mounting systems and panel structures

Preventative Measures for Optimal Performance

To maximize solar energy production despite these environmental challenges, several preventative measures should be implemented:

• Use marine-grade components: Install solar panels, inverters, and mounting hardware specifically designed to resist salt corrosion, including stainless steel or specially coated aluminum mounting systems
• Regular cleaning schedule: Establish a routine cleaning program to remove dust, salt deposits, and sand from panel surfaces, ideally using deionized water to prevent mineral buildup
• Enhanced sealing: Ensure all electrical connections and junction boxes are properly sealed against moisture infiltration using marine-grade sealants
• Robust mounting systems: Install reinforced mounting structures designed to withstand coastal wind loads and potential storm conditions
• Adequate spacing: Provide sufficient clearance around panels to promote air circulation and reduce humidity-related issues

Despite these environmental considerations, Chiclana de la Frontera remains an excellent location for solar energy generation. The high summer and spring output levels, combined with decent autumn performance, make it well-suited for both residential and commercial solar installations. With proper equipment selection and maintenance practices, solar systems at this location can achieve reliable, long-term energy production throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

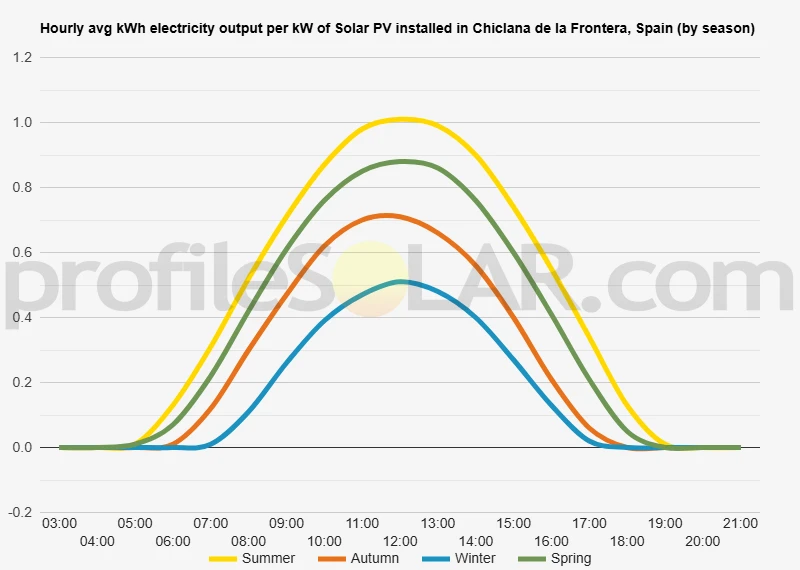

Solar output per kW of installed solar PV by season in Chiclana De La Frontera

Seasonal solar PV output for Latitude: 36.4169, Longitude: -6.1515 (Chiclana De La Frontera, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 31° South in Chiclana De La Frontera, Spain

To maximize your solar PV system's energy output in Chiclana De La Frontera, Spain (Lat/Long 36.4169, -6.1515) throughout the year, you should tilt your panels at an angle of 31° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chiclana De La Frontera, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chiclana De La Frontera, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 31° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
20° South in Summer	41° South in Autumn	51° South in Winter	29° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chiclana De La Frontera, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chiclana De La Frontera, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chiclana De La Frontera, Spain

Topographical Features Around Chiclana de la Frontera

Chiclana de la Frontera sits in the southwestern region of Andalusia, positioned between the Atlantic Ocean and the gently rolling hills of the Cádiz province. The town itself occupies relatively flat coastal terrain, with elevations ranging from sea level along the coastline to modest heights of around 50-100 meters inland. This coastal plain extends northward and eastward from the town center, creating a landscape characterized by gentle undulations rather than dramatic elevation changes.

The immediate surroundings feature a mix of agricultural land, salt marshes, and pine forests. To the west lies the Sancti Petri channel and natural park areas, while the eastern approach reveals broader expanses of farmland interspersed with small settlements. The terrain gradually rises as one moves further inland toward the Sierra de Cádiz mountain range, but the transition remains gradual across several kilometers.

The coastal influence creates a relatively stable topographical environment, with well-drained soils and minimal risk of extreme weather events that could affect large infrastructure projects. The landscape shows evidence of historical agricultural use, with field boundaries and access roads already established across much of the surrounding countryside.

Optimal Areas for Large-Scale Solar Development

The most promising locations for substantial solar photovoltaic installations lie in the agricultural plains extending northeast and east of Chiclana de la Frontera. These areas offer several key advantages including flat to gently sloping terrain that minimizes grading requirements and construction costs. The existing field systems provide natural boundaries and often include established access routes that could support heavy equipment and maintenance vehicles.

The zone between Chiclana and the neighboring municipality of Medina-Sidonia presents particularly favorable conditions. This area features extensive flat agricultural land with good drainage characteristics and minimal shading from vegetation or structures. The terrain here sits at elevations between 20 and 80 meters above sea level, providing adequate elevation for drainage while remaining easily accessible.

Areas to the southeast toward Conil de la Frontera also show potential, though developers would need to consider the proximity to protected coastal environments and existing tourism infrastructure. The inland agricultural zones offer the best combination of suitable topography, land availability, and distance from sensitive environmental areas.

The northern approaches toward Jerez de la Frontera become increasingly attractive for large installations due to the broader expanses of available land and the gradually rising terrain that can provide natural wind protection for solar arrays. These locations maintain the gentle topographical characteristics favorable for solar development while offering greater separation from coastal tourism areas and residential zones.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.

Do you have more up to date information than this on incentives towards solar PV projects in Spain? Please reach out to us and help us keep this information current. Thanks!
