Ciutadella, Balearic Islands, Spain presents a moderately favorable location for year-round solar PV energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Production Patterns

The solar energy output at this Northern Temperate Zone location shows dramatic seasonal swings. Summer delivers the highest production at 7.39 kWh per day per kW of installed capacity, making it an excellent time for solar generation. Spring follows as the second-best season with 5.82 kWh per day per kW, offering strong production levels. However, the location experiences notable challenges during cooler months. Autumn drops significantly to 3.53 kWh per day per kW, while winter reaches the lowest point at just 2.60 kWh per day per kW. This represents a nearly three-fold difference between peak summer and minimum winter production.

Optimal Panel Configuration

For maximum year-round energy production at Ciutadella, Balearic Islands, solar panels should be installed at a fixed tilt angle of 34 degrees facing south. This angle has been calculated to optimize total annual output by accounting for the sun's changing position throughout the year and weighting for the location's solar irradiance patterns.

Local Environmental Factors

Several environmental factors at Ciutadella could potentially impact solar panel performance:

• Mediterranean salt air exposure can cause corrosion and reduce panel efficiency over time
• Dust accumulation from dry periods and occasional Saharan dust events
• Strong coastal winds that could affect panel mounting systems
• Occasional severe weather including storms that may damage installations

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several preventative measures should be implemented:

• Use marine-grade mounting hardware and corrosion-resistant materials to withstand salt air
• Install panels with adequate spacing for natural wind cleaning and easy maintenance access
• Establish regular cleaning schedules to remove dust and salt deposits
• Ensure robust mounting systems designed for high wind loads typical of coastal areas
• Consider anti-reflective coatings that also provide some protection against environmental degradation

Regular maintenance becomes particularly important in this coastal Mediterranean environment to ensure panels continue operating at peak efficiency throughout their lifespan.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

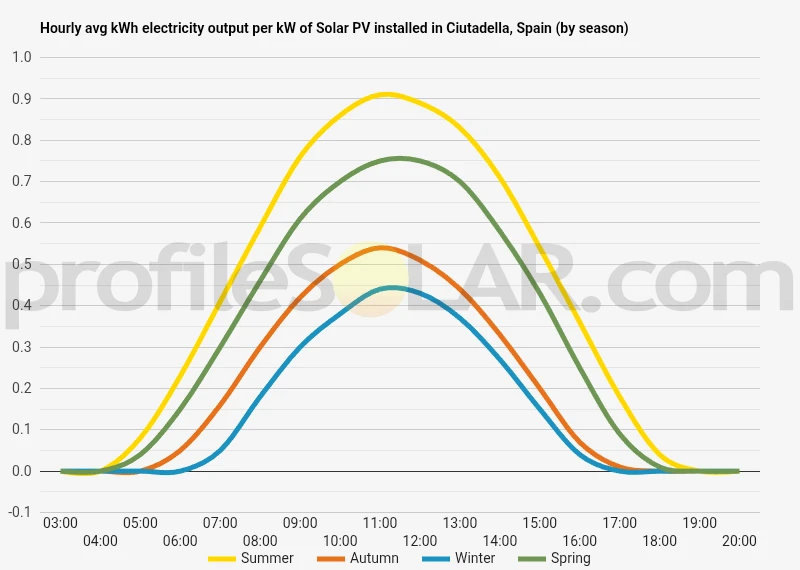

Solar output per kW of installed solar PV by season in Ciutadella

Seasonal solar PV output for Latitude: 39.9209, Longitude: 3.8265 (Ciutadella, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Ciutadella, Spain

To maximize your solar PV system's energy output in Ciutadella, Spain (Lat/Long 39.9209, 3.8265) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ciutadella, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ciutadella, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
23° South in Summer	44° South in Autumn	55° South in Winter	32° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ciutadella, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ciutadella, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ciutadella, Spain

Topographical Features of Ciutadella

Ciutadella, located on the western tip of Menorca in the Balearic Islands, sits within a predominantly flat and gently undulating landscape characteristic of this Mediterranean island. The terrain around the city features low-lying coastal plains that extend inland, with elevations rarely exceeding 100 meters above sea level. The topography is marked by limestone plateaus and gentle rolling hills, creating a relatively uniform landscape that slopes gradually toward the surrounding coastline. The immediate vicinity of Ciutadella consists of agricultural fields, traditional stone-walled farmland, and scattered rural settlements. These areas are interspersed with patches of Mediterranean scrubland and occasional small woodlands of pine and oak trees. The coastal areas feature dramatic limestone cliffs that drop into secluded coves and beaches, while inland the terrain becomes increasingly pastoral and open.

Regional Landscape Characteristics

Moving inland from Ciutadella, the central portions of western Menorca present an expansive agricultural landscape dominated by traditional field systems bounded by dry stone walls. This area, known locally as the "Camí de Cavalls" region, consists of gently rolling terrain with minimal elevation changes. The soil composition is primarily limestone-based with patches of red Mediterranean earth, creating relatively stable ground conditions across extensive flat areas. The northern coastal regions near Ciutadella feature more rugged cliff formations and rocky outcrops, while the southern areas transition into gentler coastal plains. Small seasonal watercourses, called torrents locally, create shallow valleys that drain toward the sea, though these represent minor topographical variations rather than significant terrain obstacles.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found in the agricultural plains extending southeast and east of Ciutadella. These areas offer several kilometers of relatively flat, open terrain with minimal tree cover and consistent elevation profiles. The traditional farming areas between Ciutadella and the central part of the island present particularly favorable conditions due to their expansive nature and accessibility via existing rural road networks. The limestone plateau areas slightly inland from the immediate coastal zone would also provide excellent foundations for large solar arrays. These elevated but flat areas benefit from consistent wind patterns that help with panel cooling while avoiding the more exposed coastal cliff regions where salt spray and extreme weather conditions could pose challenges to equipment longevity. Agricultural zones in the Es Mercadal direction, approximately 10-15 kilometers east of Ciutadella, represent some of the most promising terrain for utility-scale solar development. These areas combine favorable topographical conditions with sufficient distance from residential areas and important cultural sites, while maintaining reasonable proximity to existing electrical infrastructure along the main island transportation corridors.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.

Do you have more up to date information than this on incentives towards solar PV projects in Spain? Please reach out to us and help us keep this information current. Thanks!
