Colmenar Viejo, Madrid, Spain, located in the Northern Temperate Zone, offers a promising location for solar PV energy generation throughout the year. With its geographical coordinates at 40.6599 latitude and -3.7638 longitude, this area experiences varying levels of solar potential across different seasons.

Seasonal Solar Performance

The solar energy output in Colmenar Viejo fluctuates significantly across seasons. Summer stands out as the most productive period, with an impressive 8.02 kWh per day for each kW of installed solar capacity. Spring follows as the second most productive season, generating 5.89 kWh daily. Autumn sees a noticeable decrease in output, producing 4.12 kWh per day, while winter experiences the lowest generation at 2.52 kWh daily.

These figures indicate that Colmenar Viejo is particularly well-suited for solar energy production during the warmer months, from late spring through early autumn. The extended daylight hours and typically clearer skies during this period contribute to the higher energy yields.

Optimal Panel Installation

To maximize year-round solar energy production in Colmenar Viejo, Madrid, fixed solar panels should be installed at a tilt angle of 35 degrees facing south. This optimal angle takes into account the location's latitude and seasonal variations in sun position, ensuring the best possible exposure to sunlight throughout the year.

Environmental and Weather Considerations

While Colmenar Viejo generally offers favorable conditions for solar energy production, there are some factors that could potentially impact efficiency:

1. Dust and pollen: The area's semi-arid climate may lead to dust accumulation on panels, while nearby vegetation could contribute to pollen buildup.
2. Winter weather: Occasional snowfall in winter might temporarily reduce panel efficiency.

To mitigate these issues, regular panel cleaning should be scheduled, especially during spring and autumn. Additionally, installing panels at the recommended 35-degree angle can help with natural cleaning during rainfall and reduce snow accumulation in winter.

Overall, Colmenar Viejo presents a favorable location for solar PV installations, with strong potential for energy generation, particularly during the warmer months of the year. By optimizing panel placement and implementing proper maintenance, solar energy systems in this area can achieve high levels of efficiency and productivity.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

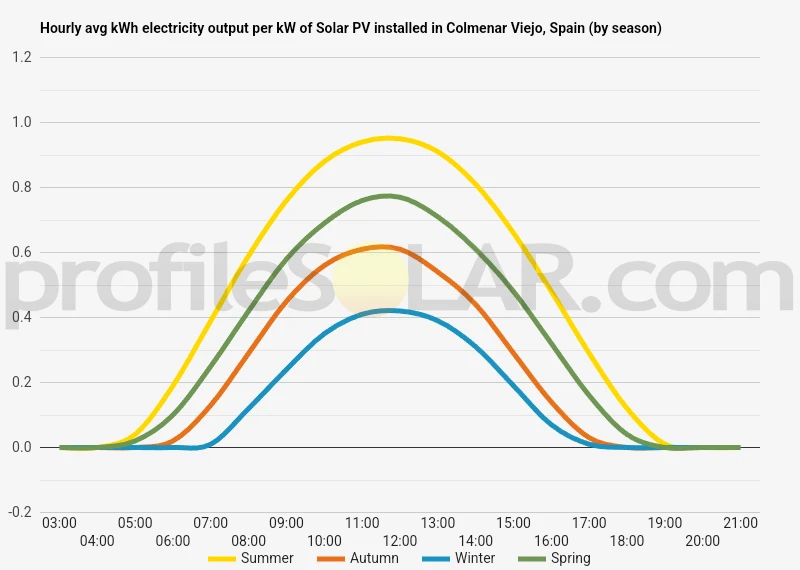

Solar output per kW of installed solar PV by season in Colmenar Viejo

Seasonal solar PV output for Latitude: 40.6599, Longitude: -3.7638 (Colmenar Viejo, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Colmenar Viejo, Spain

To maximize your solar PV system's energy output in Colmenar Viejo, Spain (Lat/Long 40.6599, -3.7638) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Colmenar Viejo, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Colmenar Viejo, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	45° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Colmenar Viejo, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Colmenar Viejo, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Colmenar Viejo, Spain

Colmenar Viejo, located in the Madrid region of Spain, is situated in an area with diverse and interesting topography. The town itself sits on a plateau at an elevation of approximately 880 meters above sea level. This plateau is part of the southern foothills of the Sierra de Guadarrama mountain range, which forms a striking backdrop to the north of the town. The surrounding landscape is characterized by gently rolling hills and wide, open spaces. To the south and east of Colmenar Viejo, the terrain gradually descends towards the Madrid basin, creating a mix of undulating countryside and flatter areas. The region features a combination of Mediterranean scrubland, known as "matorral," interspersed with grasslands and scattered oak trees, typical of the dehesa landscape found in central Spain. Several streams and small rivers cut through the area, creating shallow valleys and contributing to the varied topography. The Manzanares River, one of the most significant waterways in the region, flows to the east of Colmenar Viejo, carving a more pronounced valley as it heads southward towards Madrid.

Potential Areas for Large-Scale Solar PV

When considering areas suitable for large-scale solar photovoltaic (PV) installations near Colmenar Viejo, several factors come into play. The ideal locations would combine favorable topography with good sun exposure and minimal environmental impact. The gently sloping areas to the south and southeast of Colmenar Viejo present promising opportunities for solar PV development. These regions benefit from a southerly aspect, which is optimal for solar energy capture in the Northern Hemisphere. The gradual incline of the land in these directions also helps to minimize shading between solar panels, allowing for more efficient use of space. Areas of relatively flat terrain found on the plateau surrounding Colmenar Viejo could also be suitable for solar installations. These locations offer the advantage of easier construction and maintenance access, which can be crucial for large-scale projects. It's important to note that while the topography around Colmenar Viejo offers potential for solar PV development, any large-scale installations would need to be carefully planned to balance energy production with environmental conservation. The region's natural beauty and ecological significance, particularly in areas closer to the Sierra de Guadarrama, would need to be taken into account when selecting specific sites for solar farms.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.

Do you have more up to date information than this on incentives towards solar PV projects in Spain? Please reach out to us and help us keep this information current. Thanks!
