Cuarte de Huerva, Spain presents a moderately favorable location for year-round solar photovoltaic energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The location experiences its peak solar production during summer months, generating 7.64kWh per day per kW of installed capacity. This represents excellent energy output when electricity demand for cooling is typically highest. Spring follows as the second-best performing season with 5.99kWh daily output per kW, making it another highly productive period for solar energy generation. Autumn sees a notable decline in solar production, dropping to 3.96kWh per day per kW of installed solar. Winter presents the most challenging period for solar generation, producing only 2.35kWh daily per kW - roughly one-third of summer output. This dramatic seasonal variation means that winter energy needs may require supplementary power sources or battery storage systems.

Optimal Installation Configuration

For maximum year-round solar energy production at Cuarte de Huerva, fixed solar panels should be tilted at 36 degrees facing south. This angle has been calculated to optimize total annual energy output by accounting for the sun's changing position throughout the year and the location's specific latitude.

Local Environmental Factors

Several environmental and weather factors in the Cuarte de Huerva area could potentially impact solar panel performance:

• Dust accumulation from the semi-arid climate can reduce panel efficiency
• Occasional hailstorms common to the Aragón region may damage panels
• Strong winds from the Ebro Valley can stress mounting systems
• Temperature extremes, both hot summers and cold winters, can affect panel efficiency

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several installation strategies prove beneficial. Regular cleaning schedules help combat dust buildup, with automated cleaning systems being particularly effective in this dusty environment. Installing panels with tempered glass and reinforced frames provides protection against hail damage. Robust mounting systems designed for high wind loads ensure panels remain secure during strong valley winds. Adequate ventilation spacing beneath panels helps manage temperature extremes and maintains optimal operating efficiency. Additionally, investing in high-quality inverters with wide temperature operating ranges helps maintain consistent performance throughout the year's temperature variations. Despite the winter production challenges, Cuarte de Huerva's strong summer and spring solar output makes it a viable location for solar installations, particularly when proper installation techniques address the local environmental factors.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

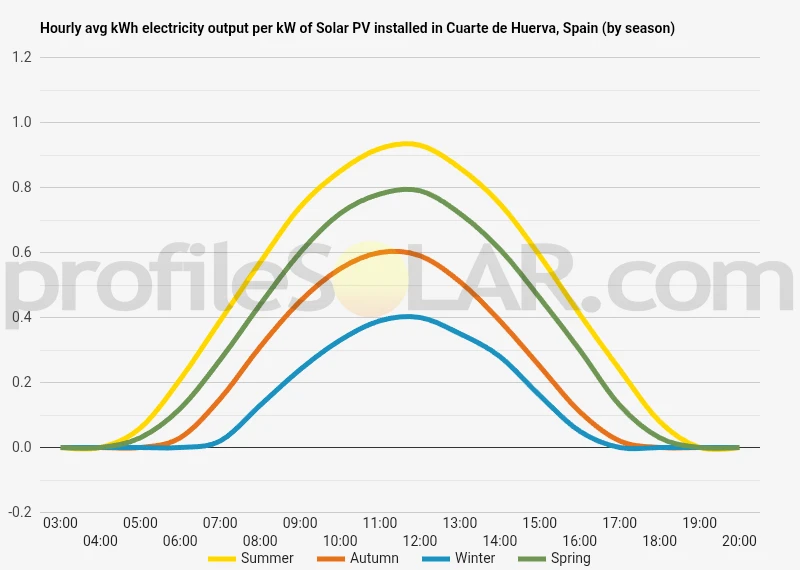

Solar output per kW of installed solar PV by season in Cuarte De Huerva

Seasonal solar PV output for Latitude: 41.5909, Longitude: -0.934 (Cuarte De Huerva, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Cuarte De Huerva, Spain

To maximize your solar PV system's energy output in Cuarte De Huerva, Spain (Lat/Long 41.5909, -0.934) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cuarte De Huerva, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cuarte De Huerva, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	46° South in Autumn	56° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cuarte De Huerva, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cuarte De Huerva, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cuarte De Huerva, Spain

Topographical Features of Cuarte de Huerva

Cuarte de Huerva sits in the central Ebro Valley of northeastern Spain, positioned within the autonomous community of Aragon. The town occupies relatively flat terrain at an elevation of approximately 220 meters above sea level, characteristic of the broad river valley that dominates this region. The landscape around Cuarte de Huerva is predominantly agricultural, with gently rolling plains stretching in most directions.

The Huerva River, from which the town takes part of its name, flows northward through the area before joining the much larger Ebro River near Zaragoza. This river system has created fertile alluvial deposits over millennia, resulting in the characteristically flat to gently undulating terrain that defines the local topography. The surrounding countryside features minimal elevation changes, with gradual slopes that rarely exceed a few degrees.

To the south and southwest of Cuarte de Huerva, the terrain begins to rise more noticeably as it approaches the foothills of the Iberian System mountain range. These elevated areas feature more pronounced slopes and varied topography, though they remain relatively modest in elevation compared to the high peaks found further south. The northern and eastern directions maintain the flat valley characteristics, extending toward the Ebro River and the regional capital of Zaragoza.

Suitable Areas for Large-Scale Solar Development

The extensive flat agricultural plains surrounding Cuarte de Huerva present excellent opportunities for large-scale solar photovoltaic installations. The areas immediately north and northeast of the town offer particularly favorable conditions, with minimal topographical obstacles and large continuous tracts of relatively level land. These zones benefit from unobstructed southern exposure and gentle terrain that would require minimal grading for solar array installation.

The agricultural fields extending eastward toward Zaragoza represent another prime location for solar development. This area combines favorable topography with proximity to existing electrical infrastructure, as the regional capital's power grid and transmission lines are readily accessible. The flat terrain in this direction would allow for efficient installation and maintenance of solar panels while minimizing construction costs associated with site preparation.

Areas to the west and southwest of Cuarte de Huerva also show promise for solar installations, particularly on the lower slopes and plateaus that rise gradually from the valley floor. While these locations feature slightly more varied topography, they often provide excellent drainage and may offer advantages in terms of land availability and cost. The gentle south-facing slopes in these areas could be particularly well-suited for solar arrays, as they naturally orient toward optimal sun exposure angles.

The broader Ebro Valley region's consistently dry climate and minimal cloud cover throughout much of the year make it an ideal location for solar energy generation. The lack of significant topographical barriers means that large installations would not face issues with shading from nearby hills or mountains, allowing for maximum efficiency in panel placement and energy production.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.
