Cunit, Catalonia, Spain, located at coordinates 41.2009, 1.6402 in the Northern Temperate Zone, presents a reasonably good location for year-round solar energy generation, though with notable seasonal variations in output.

Seasonal Solar Performance

The solar energy production at this location shows typical Mediterranean patterns. Summer delivers the strongest performance at 7.31kWh per day per kW of installed solar capacity, making it an excellent time for solar generation. Spring follows as the second-best season with 5.77kWh per day per kW, providing substantial energy output as daylight hours increase and temperatures remain moderate. Autumn sees a significant drop to 3.69kWh per day per kW as the sun angle decreases and weather patterns change. Winter presents the most challenging period with only 2.37kWh per day per kW, though this output remains viable for contributing to energy needs. For optimal year-round energy capture at Cunit, Catalonia, solar panels should be installed at a fixed tilt angle of 35 degrees facing south. This angle maximizes total annual production by balancing the sun's varying elevation throughout the seasons.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this coastal Mediterranean location:

• Salt air corrosion from proximity to the Mediterranean Sea
• Sand and dust accumulation on panel surfaces
• Occasional Mediterranean storms with high winds
• Humidity-related condensation issues

Preventative Measures for Optimal Performance

To combat these environmental challenges and ensure maximum energy production, several installation strategies prove effective. Using marine-grade mounting systems and components with enhanced corrosion resistance helps protect against salt air damage. Regular cleaning schedules become particularly important to remove salt deposits and accumulated dust that can significantly reduce panel efficiency. Installing panels with adequate ventilation spacing prevents moisture buildup and allows for better cooling, which improves electrical output. Choosing panels and inverters rated for high humidity and temperature variations ensures reliable operation in the Mediterranean climate. Wind-resistant mounting systems designed for coastal installations help protect against storm damage, while proper electrical grounding and surge protection safeguard the system during weather events. These measures, combined with the location's favorable solar resource, make Cunit a viable location for solar energy generation throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

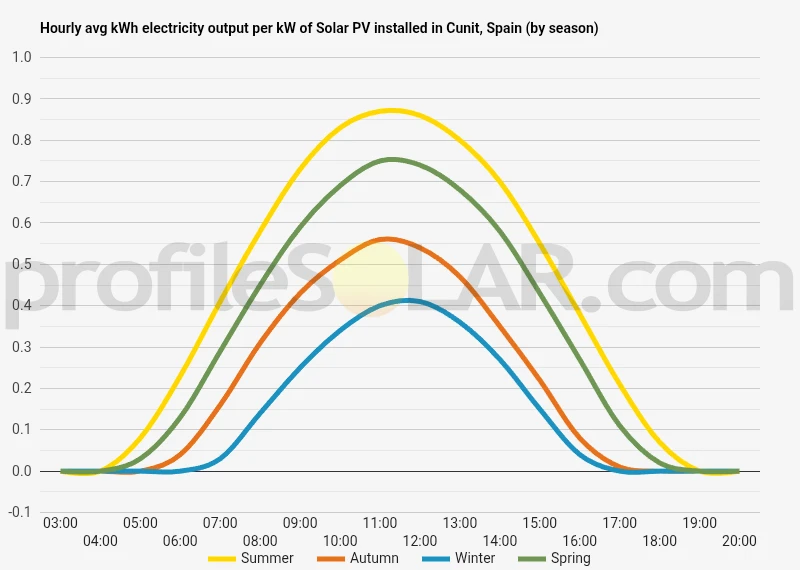

Solar output per kW of installed solar PV by season in Cunit

Seasonal solar PV output for Latitude: 41.2009, Longitude: 1.6402 (Cunit, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Cunit, Spain

To maximize your solar PV system's energy output in Cunit, Spain (Lat/Long 41.2009, 1.6402) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cunit, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cunit, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	45° South in Autumn	56° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cunit, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cunit, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cunit, Spain

Topography Around Cunit

Cunit sits along the Mediterranean coastline in Catalonia, approximately 45 kilometers southwest of Barcelona. The town occupies a relatively flat coastal plain that extends inland from the sandy beaches of the Costa Dorada. This low-lying terrain is characterized by gentle undulations and modest elevation changes, with the land rising gradually as it moves away from the sea.

The immediate coastal area around Cunit features predominantly flat to gently rolling topography, with elevations typically ranging from sea level to about 100 meters above sea level within the first few kilometers inland. The landscape consists of Mediterranean scrubland, agricultural fields, and scattered residential developments. Small seasonal streams and drainage channels cut through the terrain, creating minor valleys and depressions in an otherwise relatively uniform coastal plain.

Moving further inland toward the northwest and west, the topography becomes more varied as it approaches the foothills of the Catalan Coastal Range. These areas feature more pronounced hills and ridges, with elevations increasing to several hundred meters. The terrain includes a mix of forested slopes, terraced vineyards, and olive groves typical of the Mediterranean landscape.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Cunit would be the expansive flat to gently sloping areas located inland from the immediate coastal zone. These areas, typically found 2 to 8 kilometers west and northwest of the town center, offer several advantages for solar development. The terrain requires minimal grading and site preparation, reducing construction costs and environmental impact.

The agricultural plains extending toward the municipalities of Calafell, Bellvei, and Arboc present particularly promising opportunities. These areas feature large, relatively undeveloped parcels of land with gentle slopes that naturally face south or southwest, optimizing solar exposure throughout the day. The existing agricultural road network provides good access for construction and maintenance activities.

Areas with slight southern-facing slopes, particularly those with gradients between 2 and 8 degrees, would be especially beneficial for solar panel positioning. These locations allow for natural drainage while maintaining optimal angles for solar collection. The terrain in these zones typically consists of stable soils suitable for foundation work, with good drainage characteristics that reduce the risk of flooding or water accumulation around solar installations.

The proximity to existing electrical infrastructure along the coastal corridor and the presence of transmission lines serving the Barcelona metropolitan area make these inland locations particularly attractive from a grid connection perspective. Additionally, these areas are generally removed from the more densely populated coastal strip, reducing potential conflicts with residential development and tourism activities while maintaining reasonable access to transportation networks.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.

Do you have more up to date information than this on incentives towards solar PV projects in Spain? Please reach out to us and help us keep this information current. Thanks!
