El Escorial, Madrid, Spain, located in the Northern Temperate Zone at coordinates 40.5956, -4.156, presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The location shows typical temperate zone patterns with substantial differences between seasons. Summer delivers the strongest performance at 8.05 kWh per day per kW of installed solar capacity, making it an excellent time for solar energy generation. Spring follows as the second-best season with 5.90 kWh per day per kW, providing good energy production during the transitional months. Autumn production drops to 4.03 kWh per day per kW, while winter presents the most challenging period with only 2.52 kWh per day per kW. This winter figure represents less than one-third of summer production, highlighting the seasonal dependency of solar generation at this latitude. For optimal year-round energy capture, solar panels should be installed at a fixed tilt angle of 35 degrees facing south. This angle maximizes total annual production by accounting for the sun's varying position throughout the year and weighting the optimal angles based on actual solar irradiance potential.

Local Environmental Factors

Several environmental and weather factors at El Escorial can significantly impact solar energy production. The location's elevation of approximately 1,000 meters above sea level in the Sierra de Guadarrama mountains creates specific challenges that installers must address. Winter weather conditions pose the primary concern, with potential snowfall that can accumulate on solar panels and completely block energy production. The mountainous terrain also increases the likelihood of fog and low cloud cover, particularly during autumn and winter months, which can substantially reduce solar irradiance. Summer brings its own challenges, including occasional severe thunderstorms that can damage equipment and create temporary shading from storm clouds. The continental climate also means significant temperature variations between seasons, which can affect panel efficiency and mounting system integrity.

Preventative Installation Measures

To maximize energy production despite these environmental challenges, several preventative measures should be implemented during installation:

• Install panels at steeper angles (closer to the recommended 35 degrees) to promote natural snow shedding and reduce accumulation
• Use mounting systems designed for higher wind and snow loads typical of mountainous regions
• Implement micro-inverters or power optimizers to minimize the impact of partial shading from weather conditions
• Ensure adequate spacing between panel rows to prevent snow buildup and allow for thermal expansion
• Install robust grounding and surge protection systems due to increased lightning risk in the mountainous environment

Regular maintenance becomes particularly important at this location. Snow removal systems or manual clearing procedures should be established for winter months. Panel cleaning schedules should account for dust accumulation during dry periods and potential debris from surrounding vegetation. The location's moderate solar potential, combined with proper installation techniques and maintenance protocols, can still provide reasonable year-round energy production. However, system sizing should account for the dramatic seasonal variations, particularly if consistent year-round energy independence is the goal.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

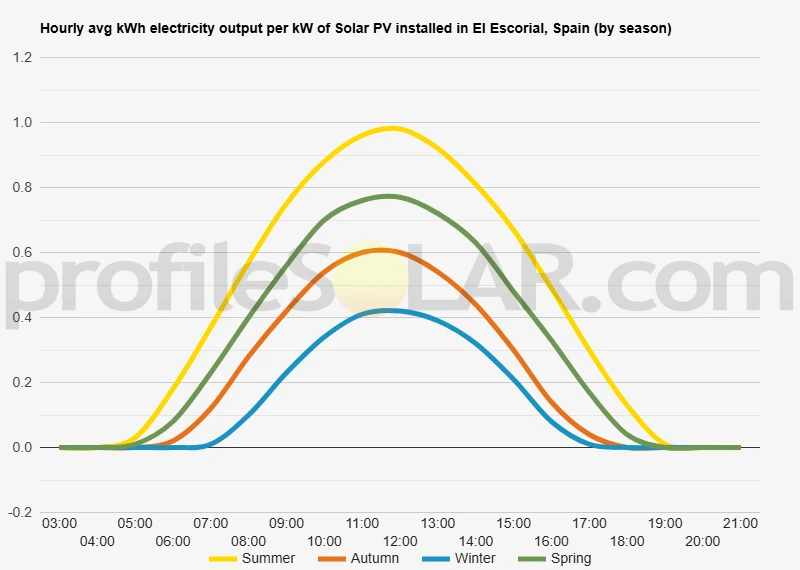

Solar output per kW of installed solar PV by season in El Escorial

Seasonal solar PV output for Latitude: 40.5956, Longitude: -4.156 (El Escorial, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in El Escorial, Spain

To maximize your solar PV system's energy output in El Escorial, Spain (Lat/Long 40.5956, -4.156) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for El Escorial, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in El Escorial, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	45° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in El Escorial, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in El Escorial, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around El Escorial, Spain

Topographical Features of El Escorial

El Escorial sits in the foothills of the Sierra de Guadarrama mountain range, approximately 45 kilometers northwest of Madrid. The famous monastery and palace complex is positioned at an elevation of around 1,028 meters above sea level, nestled against the southern slopes of Mount Abantos. The terrain here is characterized by rolling hills, granite outcroppings, and mixed woodland areas dominated by oak and pine forests. The landscape around El Escorial exhibits a typical Mediterranean continental topography, with moderate to steep slopes rising northward toward the main ridge of the Guadarrama mountains. The granite bedrock creates distinctive boulder formations and rocky terrain that gives the area its rugged character. South of the town, the land gradually descends toward the Meseta Central, Spain's vast central plateau, creating a more gentle undulating landscape. The region experiences significant elevation changes within relatively short distances. While El Escorial itself sits at over 1,000 meters elevation, the surrounding valleys and southern approaches drop to around 800-900 meters, creating natural drainage patterns and microclimatic variations across the area.

Optimal Areas for Large-Scale Solar Development

The most promising locations for substantial solar photovoltaic installations lie to the south and southeast of El Escorial, where the terrain transitions from the mountainous foothills to the broader Meseta Central. These areas offer several advantages including gentler slopes, reduced tree cover, and more consistent solar exposure throughout the day. The southern-facing slopes between El Escorial and the towns of Valdemorillo and Brunete present particularly favorable conditions. The topography here consists of broad, gently rolling hills with gradual inclines that would facilitate large-scale panel installation while maintaining optimal solar angles. The granite-based soils provide stable foundations, and the relatively sparse vegetation would minimize environmental impact during development. Areas around the municipalities of Galapagar and Las Rozas, southeast of El Escorial, also demonstrate excellent potential for solar development. The landscape here opens up considerably compared to the more mountainous terrain closer to the Guadarrama range, offering extensive flat to moderately sloping terrain suitable for utility-scale solar farms. The valley systems that extend southward from El Escorial toward the Guadarrama River provide additional opportunities for solar development. These areas combine favorable topographical conditions with existing infrastructure access, including proximity to major transportation routes and electrical transmission networks connecting to Madrid's metropolitan area. Agricultural lands in the southern portions of the region, particularly those with south-facing exposures and minimal shading from surrounding hills or forests, represent prime candidates for solar development. The transition zone between the mountainous terrain and the central plateau creates an ideal compromise between elevation benefits and practical construction considerations.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.

Do you have more up to date information than this on incentives towards solar PV projects in Spain? Please reach out to us and help us keep this information current. Thanks!
