Guadalajara, Spain presents a moderately favorable location for year-round solar PV energy generation, though with significant seasonal variation typical of its Northern Temperate Zone position at coordinates 40.6283, -3.1578.

Seasonal Solar Performance

The location shows strong seasonal contrasts in solar energy production. Summer delivers the highest output at 8.01kWh per day per kW of installed capacity, making it the prime solar generation season. Spring follows as the second-best period with 5.85kWh per day per kW, offering excellent production potential during the longer days and favorable sun angles. Autumn production drops to 4.08kWh per day per kW, while winter represents the most challenging period with only 2.49kWh per day per kW. This winter figure is relatively low compared to more southern European locations, reflecting the reduced sun angle and shorter daylight hours typical of this latitude.

Optimal Installation Configuration

For fixed panel installations at this Guadalajara location, the ideal tilt angle is 35 degrees facing south to maximize total year-round solar production. This angle balances the varying sun positions throughout the seasons to optimize overall annual energy capture.

Local Environmental Factors

Several environmental and weather factors in Guadalajara can impact solar production efficiency:

• Dust accumulation from the semi-arid continental climate, particularly during dry summer months
• Snow cover during winter periods, which can temporarily block panels
• Occasional hailstorms typical of the central Spanish plateau
• Temperature-related efficiency losses during hot summer days

Preventative Measures for Enhanced Production

To maximize solar energy production despite these challenges, several installation strategies prove effective. Regular panel cleaning schedules help combat dust buildup, with automated cleaning systems being particularly beneficial during dusty periods. Installing panels with adequate ventilation spacing underneath helps manage temperature-related efficiency losses during peak summer heat. Using tempered glass panels provides protection against hail damage, while ensuring proper drainage around installations prevents water accumulation that could lead to reduced performance. Implementing monitoring systems allows for quick identification of snow coverage or other obstructions, enabling timely maintenance. Additionally, choosing panels with good low-light performance helps maximize energy capture during the challenging winter months when production naturally declines.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

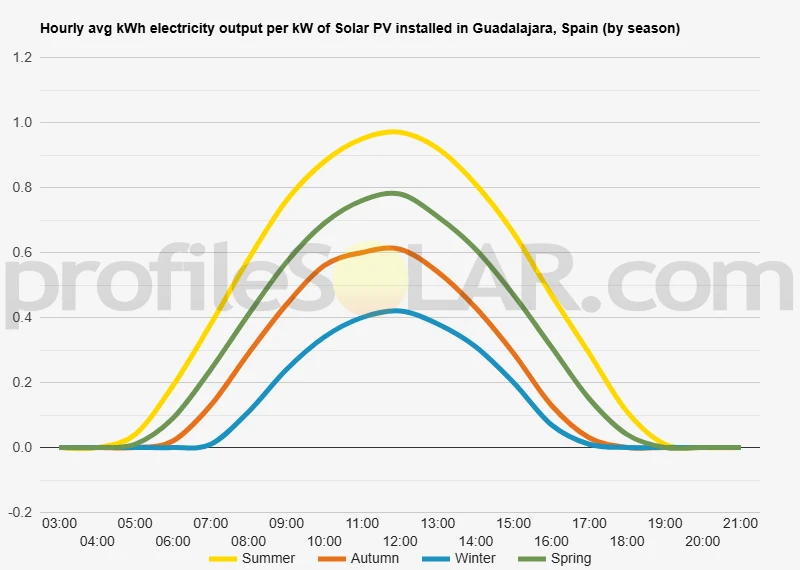

Solar output per kW of installed solar PV by season in Guadalajara

Seasonal solar PV output for Latitude: 40.6283, Longitude: -3.1578 (Guadalajara, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Guadalajara, Spain

To maximize your solar PV system's energy output in Guadalajara, Spain (Lat/Long 40.6283, -3.1578) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Guadalajara, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Guadalajara, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	45° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Guadalajara, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Guadalajara, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Guadalajara, Spain

Topographical Features of Guadalajara, Spain

Guadalajara sits in the heart of the Iberian Peninsula's central plateau, known as the Meseta Central, at an elevation of approximately 685 meters above sea level. The city is positioned within the autonomous community of Castilla-La Mancha, where the landscape is characterized by gently rolling plains and broad valleys that stretch toward distant mountain ranges. The terrain around Guadalajara exhibits the classic features of Spain's interior tableland, with relatively flat to moderately undulating topography that provides excellent visibility across vast expanses of countryside.

The immediate surroundings of Guadalajara are dominated by agricultural lands and sparse woodland areas, with the terrain gradually rising and falling in gentle waves rather than presenting steep gradients. To the north and northeast, the landscape begins its ascent toward the Sistema Central mountain range, while to the south and east, the plains extend toward the more arid regions of central Spain. The Henares River valley cuts through the area, creating a natural corridor that has historically served as an important transportation route between Madrid and the eastern regions of Spain.

The climate in this region is continental Mediterranean, characterized by hot, dry summers and cold winters with minimal precipitation during the warmer months. The relatively high elevation contributes to significant temperature variations between seasons, while the inland location ensures abundant clear skies throughout much of the year. The combination of elevation and continental climate patterns creates favorable atmospheric conditions with low humidity and minimal cloud cover during extended periods.

Optimal Areas for Large-Scale Solar Development

The expansive plains stretching south and southeast of Guadalajara present the most promising opportunities for large-scale solar photovoltaic installations. These areas benefit from relatively flat topography that minimizes the need for extensive site preparation and grading work. The gentle slopes that do exist are typically oriented in favorable directions for solar panel placement, with many sites offering natural south-facing aspects that maximize solar exposure throughout the day.

The agricultural plateau extending toward Cuenca province offers particularly suitable conditions, with vast open spaces that experience minimal shading from natural or man-made obstacles. The sparse population density in these rural areas means fewer conflicts with residential development, while the existing agricultural road network provides a foundation for construction access and maintenance operations. The terrain in this direction maintains consistent elevation with gradual variations that can be easily accommodated in solar array design.

Areas to the southwest, moving toward the Madrid metropolitan region, also present excellent potential despite slightly higher land values. The topography remains favorable with broad, gently sloping fields that have been historically used for cereal cultivation. These locations benefit from proximity to existing electrical infrastructure and transmission lines that connect to the national grid, reducing the complexity and cost of power evacuation from large solar installations.

The elevated plateau environment provides natural drainage advantages, with surface water flowing toward established watercourses without creating problematic pooling or erosion issues. The combination of well-drained soils, stable geological conditions, and minimal seismic activity creates an ideal foundation for large-scale solar infrastructure that can operate reliably for decades with minimal ground-related maintenance concerns.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.

Do you have more up to date information than this on incentives towards solar PV projects in Spain? Please reach out to us and help us keep this information current. Thanks!
