Illescas, Spain, situated at latitude 40.1207 and longitude -3.8407, offers a promising location for solar PV energy generation. This town in the Northern Temperate Zone experiences significant seasonal variations in solar energy production, which is typical for its geographical position.

Seasonal Solar Output

The solar energy output in Illescas varies considerably throughout the year. Summer stands out as the most productive season, with an impressive 8.01 kWh per day for each kilowatt of installed solar capacity. Spring follows as the second most productive season, generating 5.85 kWh per day. Autumn sees a noticeable decrease to 4.06 kWh per day, while winter experiences the lowest output at 2.45 kWh per day.

Optimal Times for Solar Generation

The period from late spring through early autumn is ideal for solar energy production in Illescas. During these months, longer daylight hours and higher sun angles contribute to increased energy output. However, even during the less productive winter months, the location still generates a significant amount of solar energy, making year-round solar PV installation worthwhile.

Panel Tilt Optimization

To maximize year-round solar energy production in Illescas, fixed solar panels should be installed at a tilt angle of 34 degrees facing south. This optimal angle takes into account the location's latitude and seasonal variations in sun position, ensuring the best possible energy capture throughout the year.

Environmental and Weather Considerations

While Illescas generally offers favorable conditions for solar energy production, there are a few factors to consider:

1. Dust and pollen: The region may experience periods of increased dust and pollen, which can accumulate on solar panels and reduce efficiency. Regular cleaning and maintenance can mitigate this issue.
2. Occasional extreme weather: Though rare, hailstorms or heavy snowfall could potentially damage or cover panels. Installing hail-resistant panels and snow-shedding systems can help protect against these events.

Overall, Illescas presents an excellent location for solar PV energy generation, with its high summer output and significant production even during winter months. By optimizing panel placement and addressing potential environmental factors, solar installations in this area can achieve impressive year-round energy production.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

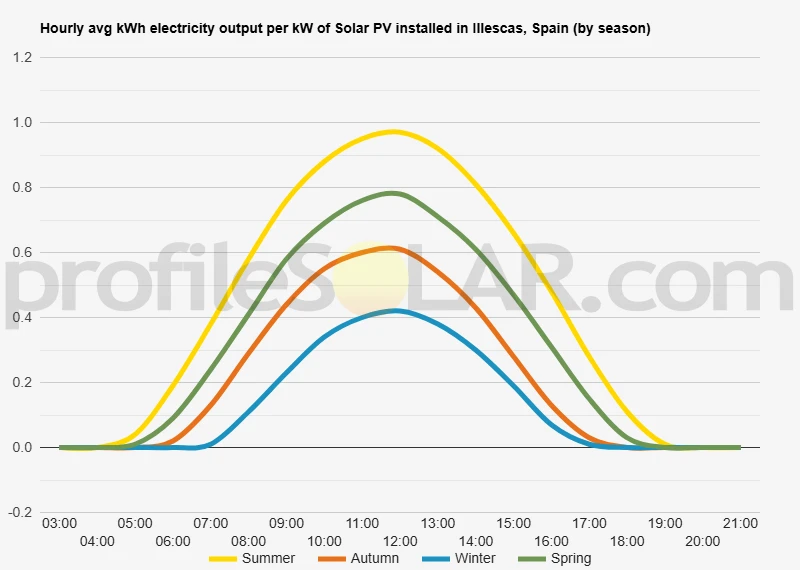

Solar output per kW of installed solar PV by season in Illescas

Seasonal solar PV output for Latitude: 40.1207, Longitude: -3.8407 (Illescas, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Illescas, Spain

To maximize your solar PV system's energy output in Illescas, Spain (Lat/Long 40.1207, -3.8407) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Illescas, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Illescas, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	45° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Illescas, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Illescas, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Illescas, Spain

The area surrounding Illescas, Spain, is characterized by a diverse and interesting topography. Located in the central part of the Iberian Peninsula, Illescas sits within the expansive Meseta Central, a vast plateau that dominates much of central Spain. The landscape around Illescas is primarily flat to gently rolling, with occasional low hills and shallow valleys punctuating the horizon. To the north and east of Illescas, the terrain gradually becomes more undulating, with subtle elevation changes creating a patchwork of agricultural fields and scattered vegetation. The soil in this region is typically dry and somewhat sandy, reflecting the semi-arid climate of central Spain. Small streams and seasonal waterways carve shallow channels through the landscape, though they often run dry during the hot summer months. South and west of Illescas, the topography becomes slightly more pronounced, with more noticeable hills and ridges rising from the plateau. These features, while not mountainous, provide some visual interest to the otherwise relatively flat surroundings. The vegetation in this area tends to be sparse, consisting mainly of drought-resistant shrubs and grasses, with occasional clusters of hardy trees.

Suitability for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The flat to gently rolling terrain surrounding Illescas offers numerous advantages for solar energy development. The open, unobstructed nature of the landscape ensures minimal shading and maximum exposure to sunlight throughout the day. The areas to the south and east of Illescas are particularly well-suited for solar PV projects. These regions benefit from higher levels of solar radiation due to their latitude and relatively clear skies. The slightly elevated terrain in these directions can also be advantageous, as it may reduce the impact of morning and evening shadows on solar panels. Large tracts of undeveloped or agricultural land in the vicinity of Illescas provide ample space for extensive solar arrays. The semi-arid climate means there is less competition for land use from intensive agriculture, making it easier to allocate areas for renewable energy projects. It's worth noting that while the immediate surroundings of Illescas offer good potential for solar PV, developers would need to consider factors such as proximity to existing electrical infrastructure, local zoning regulations, and environmental impact assessments when selecting specific sites for large-scale installations. Additionally, the relatively flat terrain may require careful planning to avoid any potential flooding issues during rare heavy rainfall events. Overall, the topography and climate around Illescas create favorable conditions for solar energy development, making it an attractive area for investment in renewable power generation.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.

Do you have more up to date information than this on incentives towards solar PV projects in Spain? Please reach out to us and help us keep this information current. Thanks!
