Majadahonda, Spain, located in the Northern Temperate Zone, offers a promising location for solar PV energy generation. This municipality in the Community of Madrid experiences varying levels of solar potential throughout the year, with distinct seasonal patterns.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive daily output of 8.01 kWh per kW of installed solar capacity. Spring follows as the second-best season, generating 5.85 kWh/day. Autumn sees a moderate decrease in production at 4.06 kWh/day, while winter experiences the lowest output at 2.45 kWh/day.

The substantial difference between summer and winter production highlights the region's seasonal variability. However, the relatively high spring and autumn outputs indicate that Majadahonda benefits from extended periods of favorable solar conditions.

Optimal Panel Configuration

For fixed panel installations in Majadahonda, the ideal tilt angle to maximize year-round production is 35 degrees facing South. This angle optimizes the panels' exposure to sunlight throughout the year, balancing the varying sun positions across seasons.

Environmental and Weather Considerations

Majadahonda's climate is generally favorable for solar production, with relatively low rainfall and numerous sunny days. However, there are a few factors to consider:

• Dust and pollen: The region can experience dust storms and high pollen counts, which may accumulate on panels and reduce efficiency.
• Occasional heatwaves: While rare, extreme heat can slightly decrease panel efficiency.

To mitigate these issues, regular panel cleaning and the use of high-quality, heat-resistant panels are recommended. Additionally, installing panels with a slight tilt can help with natural dust and pollen removal during rainfall.

Conclusion

Overall, Majadahonda presents a very good location for solar PV energy generation. The high summer and spring outputs, combined with moderate autumn production, make it an attractive option for solar investments. While winter sees reduced output, the yearly average remains favorable. With proper installation techniques and maintenance, solar PV systems in this location can provide significant and reliable energy production throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

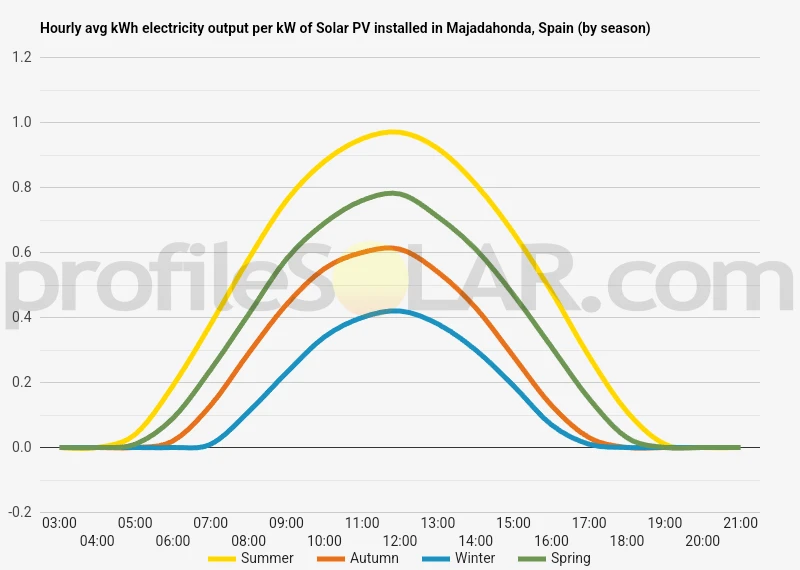

Solar output per kW of installed solar PV by season in Majadahonda

Seasonal solar PV output for Latitude: 40.4683, Longitude: -3.8683 (Majadahonda, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Majadahonda, Spain

To maximize your solar PV system's energy output in Majadahonda, Spain (Lat/Long 40.4683, -3.8683) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Majadahonda, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Majadahonda, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	45° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Majadahonda, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Majadahonda, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Majadahonda, Spain

The area around Majadahonda, Spain, located northwest of Madrid, is characterized by a diverse and gently undulating landscape. The region sits on the southern slopes of the Sierra de Guadarrama mountain range, which influences its topography. The terrain is predominantly composed of rolling hills and shallow valleys, with elevations gradually increasing as one moves northward towards the mountains. Majadahonda itself is situated on a small plateau, with an average elevation of around 730 meters above sea level. The surrounding countryside features a mix of open fields, scattered woodlands, and low-lying areas where small streams and creeks flow. These waterways have carved subtle depressions in the landscape over time, creating a patchwork of gentle slopes and flat areas. To the south and east of Majadahonda, the terrain becomes slightly flatter, transitioning into the Madrid basin. This area is characterized by more expansive plains and fewer pronounced hills, making it potentially suitable for large-scale solar PV installations.

Potential Areas for Solar PV Development

When considering locations for large-scale solar PV projects near Majadahonda, several factors come into play. The most suitable areas would typically be those with relatively flat terrain, good sun exposure, and minimal shading from natural or man-made structures. The regions to the south and southeast of Majadahonda offer promising potential for solar PV development. These areas benefit from flatter topography and fewer obstructions, allowing for optimal solar panel placement and easier construction. The gently sloping terrain in these directions also provides natural drainage, which can be advantageous for maintaining the solar installations. Additionally, some of the more open, elevated areas to the west and southwest of Majadahonda could be considered for solar PV projects. While these locations may have slightly more varied terrain, they often receive excellent sun exposure due to their elevation and lack of tall vegetation or buildings. It's important to note that any large-scale solar PV development would need to consider factors beyond just topography, such as proximity to existing power infrastructure, local zoning regulations, and environmental impact assessments. However, from a purely topographical perspective, the areas south, southeast, and to a lesser extent, west and southwest of Majadahonda offer the most promising conditions for such projects.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.

Do you have more up to date information than this on incentives towards solar PV projects in Spain? Please reach out to us and help us keep this information current. Thanks!
