Solar Energy Potential in Miranda de Ebro, Spain

Miranda de Ebro, located in northern Spain, offers varying potential for solar PV energy generation throughout the year. This location experiences significant seasonal fluctuations in solar energy production, which is typical for its position in the Northern Temperate Zone. The solar output at this location shows a clear seasonal pattern. Summer is the most productive season with an average daily output of 6.92kWh per kW of installed capacity. Spring follows as the second most productive season, generating 5.21kWh/day. Autumn yields a moderate 3.31kWh/day, while winter production drops significantly to just 1.90kWh/day per kW installed.

Optimal Panel Installation

For fixed solar panel installations in Miranda de Ebro, the ideal tilt angle is 36 degrees facing South. This specific angle maximizes year-round energy production by optimizing the capture of available sunlight across all seasons. This carefully calculated angle takes into account the location's latitude and seasonal solar paths.

Seasonal Considerations

The substantial difference between summer and winter production (a ratio of nearly 3.6 to 1) indicates that Miranda de Ebro is not ideal for consistent year-round solar generation. The location experiences a strong summer bias in energy production, with almost 70% more energy generated in summer compared to spring, and more than three times the production of winter months. For residents or businesses considering solar installations here, it would be beneficial to plan for significant supplementary power sources during winter months or implement energy storage solutions to balance the seasonal variations.

Potential Challenges and Solutions

Several environmental factors could potentially impact solar production in Miranda de Ebro:

• Dust and pollen accumulation can be significant in this region, particularly during spring and summer. Regular panel cleaning is recommended to maintain optimal efficiency.
• Winter snowfall, though not extreme, may occasionally cover panels. Installing panels at the recommended 36-degree tilt helps with natural snow shedding.
• Morning fog can be common in this river valley location during autumn and winter months, further reducing the already limited winter production.

To maximize production despite these challenges, consider installing panels with anti-soiling coatings, implementing automated cleaning systems, and ensuring panels are positioned to avoid any potential shading from nearby structures or vegetation, particularly during winter when the sun's path is lower in the sky.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

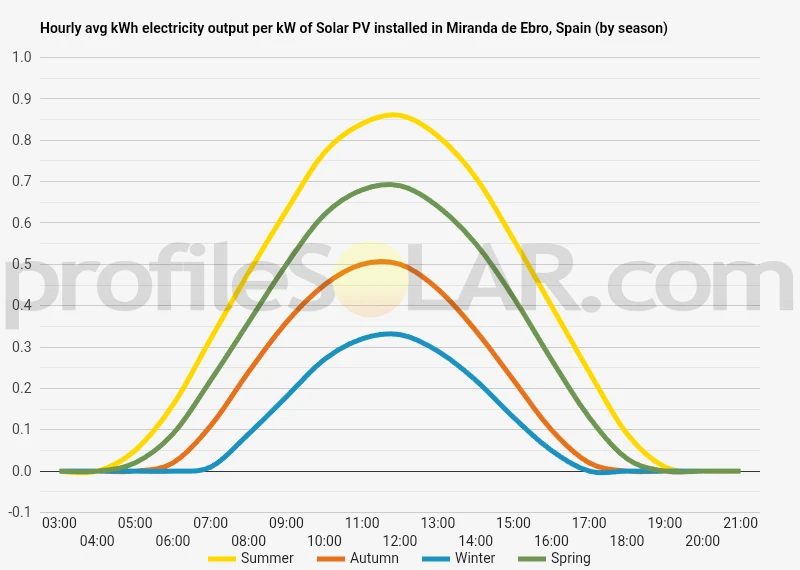

Solar output per kW of installed solar PV by season in Miranda De Ebro

Seasonal solar PV output for Latitude: 42.6851, Longitude: -2.9522 (Miranda De Ebro, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Miranda De Ebro, Spain

To maximize your solar PV system's energy output in Miranda De Ebro, Spain (Lat/Long 42.6851, -2.9522) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Miranda De Ebro, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Miranda De Ebro, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
27° South in Summer	46° South in Autumn	57° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Miranda De Ebro, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Miranda De Ebro, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Miranda De Ebro, Spain

Miranda de Ebro is situated in a unique geographical position in northern Spain, nestled within a valley where the Ebro River meets the Bayas River. This location places the city at an interesting transitional zone between the Cantabrian Mountains to the north and the expansive Ebro basin to the south. The city itself sits at an elevation of approximately 471 meters above sea level. The surrounding topography is quite varied and dramatic. To the north and northwest, the landscape rises into the foothills of the Cantabrian Range, with elevations increasing rapidly as one moves northward. These mountains form a natural barrier that influences the local climate, partially sheltering the area from Atlantic weather systems.

Surrounding Mountains and Valleys

To the east of Miranda de Ebro lies the Sierra de Cantabria, a mountain range that runs east to west, creating a striking backdrop to the region. These mountains can reach heights of over 1,400 meters and form part of the southern edge of the Basque Mountains. The contrast between these elevated areas and the river valley creates a visually stunning landscape. The Ebro River has carved a significant valley through this region, and Miranda de Ebro sits within this valley floor. The river's path has created areas of flat or gently rolling terrain, particularly to the south and southeast of the city. These lowland areas gradually transition into the broader Ebro Depression, one of Spain's major geographical features.

Potential for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near Miranda de Ebro would be the more level terrains found primarily to the south and southeast of the city. These areas offer several advantages for solar development: The relatively flat lands of the Ebro basin south of Miranda provide large, continuous spaces that could accommodate extensive solar arrays. These areas typically have good solar exposure throughout the day due to the lack of significant topographical shading. The slightly elevated plateaus that can be found to the southeast also present excellent opportunities for solar development. These areas often have minimal vegetation obstacles and reduced risk of flooding compared to the immediate river valley. Areas to avoid would include the steeper northern slopes of the surrounding mountains, which receive less direct sunlight due to their orientation and may experience more cloud cover due to orographic effects. Additionally, the immediate floodplains of the Ebro and Bayas rivers would present challenges related to potential flooding and soil stability.

Terrain Considerations

The terrain around Miranda de Ebro includes a mix of agricultural lands, particularly in the valley areas, transitioning to more rugged and forested areas in the higher elevations. The agricultural zones to the south, which are already somewhat modified by human activity, might present fewer environmental and land-use conflicts for solar development. The region's varied topography does create some microclimatic effects, with the mountain ranges influencing wind patterns and occasionally creating localized cloud formations. However, the southern exposures generally benefit from clearer skies and optimal solar radiation angles for photovoltaic electricity generation. In conclusion, while the mountainous areas surrounding Miranda de Ebro create a dramatic landscape, it is the more level areas of the Ebro basin extending to the south and southeast that would be most appropriate for large-scale solar PV development, offering the combination of suitable terrain, good exposure, and potentially less complicated land acquisition processes.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.

Do you have more up to date information than this on incentives towards solar PV projects in Spain? Please reach out to us and help us keep this information current. Thanks!
