Location estimate

Monforte del Cid

Valencia · Spain

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

7.53

kWh/day

Autumn

4.05

kWh/day

Winter

2.84

kWh/day

Spring

5.68

kWh/day

Shared scale: 0–8.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Monforte del Cid, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 7.53 7.53 × 1 kWp = 7.53 kWh/day
Autumn 4.05 4.05 × 1 kWp = 4.05 kWh/day
Winter 2.84 2.84 × 1 kWp = 2.84 kWh/day
Spring 5.68 5.68 × 1 kWp = 5.68 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
7.53
Autumn · kWh/day
4.05
Winter · kWh/day
2.84
Spring · kWh/day
5.68

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 33 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
33°
Facing direction
South

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Jun, Jul, Aug
22°South
Autumn
Sep, Oct, Nov
43°South
Winter
Dec, Jan, Feb
53°South
Spring
Mar, Apr, May
31°South

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Monforte del Cid, Valencia, Spain.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 22 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

22° tilt · South

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 43 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

43° tilt · South

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 53 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

53° tilt · South

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 31 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

31° tilt · South

Illustrative direction; exact azimuth not recorded.

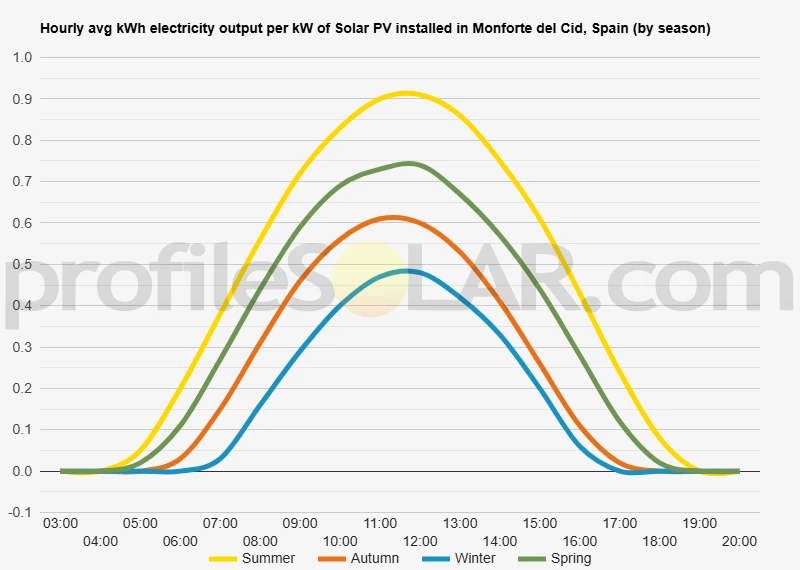

Historical hourly-by-season solar output chart for Monforte del Cid, Spain. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Monforte del Cid, Spain

Hourly profiles by season — Monforte del Cid, Spain · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Monforte del Cid, Spain · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Monforte del Cid

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 3.71 m

Proportional side viewDesign sun: ≈ 28.17° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 2.03 m
Added margin
≈ 0 m
Gap including margin
≈ 2.03 m
Panel horizontal footprint
≈ 1.68 m
Panel vertical rise
≈ 1.09 m
Pitch before margin
≈ 3.71 m

Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
33°
Added margin
0 m
Latitude from the catalogue
38.382800000000000000° (Northern Hemisphere)
Panel horizontal footprint
1.677341135890848 m
Panel vertical rise
1.089278070030054 m
Calculated clear gap
2.0342719721502553 m
Pitch before margin
3.7116131080411034 m
Gap including margin
2.0342719721502553 m
Row pitch including margin
3.7116131080411034 m
Design solar elevation
28.167417153186346°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Monforte del Cid

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

Monforte del Cid's solar reference sits within the Medio Vinalopó landscape, where the valley, surrounding sierras and table-grape cultivation give the municipality its particular character. Low traditional houses, later development and the Orito area provide several different built and rural settings.

Read the full article

Estimated average daily electricity for each 1 kW of rated panel capacity is 7.53 kWh/day in summer, 4.05 kWh/day in autumn, 2.84 kWh/day in winter and 5.68 kWh/day in spring. Summer is highest, but the winter mean remains important when comparing generation with electricity needs. The figures are energy estimates, not measurements of module efficiency. Our fixed year-round reference is 33° up from horizontal, facing South. It is derived using output weighting and simplified solar geometry. The reference does not assess the effect of the nearest ridge or neighbouring roof on a particular installation. The municipality places Monforte within the Vinalopó valley and identifies the Sierra del Cid, Sierra de las Águilas, Pedrera and Tabayá among its surrounding relief. The Orito landscape also links cultivated areas with paths rising towards the sierras. These local contrasts matter more than a uniform coastward flattening assumption. Table grapes remain a defining agricultural activity, alongside marble-related industry and other development. A view over cultivated ground therefore represents working land, not an inventory of spare solar space. Existing roofs offer a different set of questions from a rural ground installation. Dust deposits and operating temperature can affect performance, but their scale depends on the installation. The catalogue does not assign a fixed local soiling percentage or one temperature coefficient to every panel. The useful starting point is the actual seasonal record and the building or site that would carry the array.

Topography around Monforte del Cid

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

Monforte del Cid lies in the Medio Vinalopó valley in Alicante, surrounded by named sierras rather than a single gradually flattening coastal surface. The municipality identifies the Sierra del Cid, Sierra de las Águilas, Pedrera and Tabayá as important elements of its relief.

Read the full topography description

The cultivated valley and table-grape landscape contrast with the rising terrain around Orito. The municipal walking route follows the Rambla de Orito and paths that climb between the town, Orito and the Sierra del Cid, giving a more specific picture of local slopes and water routes. The traditional built core and later urban and industrial areas occupy another part of the landscape. Their roofs and surrounding structures need to be considered separately from vineyards or hillside ground. For solar consideration, the actual mounting position and its nearest relief provide the useful scale. Terraces and farming history do not prove foundation stability, and apparently open rural land does not establish availability or freedom from environmental constraints.

Technical location reference

Approximate map point used for Monforte del Cid, Spain

This coordinate is the calculation reference for Monforte del Cid, Spain. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
38.382800000000000000, -0.721300000000000000
Originally displayed coordinate
lat38.3828 / long-0.7213

How the estimate works

How this Monforte del Cid estimate was calculated

Here is how I calculated the location estimate for Monforte del Cid, Spain.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Monforte del Cid Location estimate includes and leaves out

Use the Monforte del Cid figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
