Pamplona, Navarre, Spain, located at coordinates 42.8087, -1.6628 in the Northern Temperate Zone, offers varying potential for solar energy generation throughout the year. The seasonal output from solar PV installations shows significant fluctuations that potential solar adopters should consider.

Seasonal Solar Performance

Solar energy production in Pamplona follows a predictable seasonal pattern. Summer yields the highest energy output at 7.19kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.55kWh/day. Energy generation decreases considerably in autumn to 3.52kWh/day, while winter shows the lowest production with just 1.98kWh/day per kilowatt installed.

This seasonal variation means Pamplona experiences more than a threefold difference between summer and winter production. The substantial drop during winter months indicates that solar alone may not provide consistent year-round energy without supplementary sources or storage solutions.

Optimal Installation Angle

For fixed solar panel installations in Pamplona, Navarre, the ideal tilt angle to maximize year-round energy production is 36 degrees facing South. This angle has been calculated by analyzing solar elevation throughout the year and weighting it against the daily PV potential at this specific location.

Environmental and Weather Considerations

Several factors could potentially impact solar production in Pamplona. The city experiences a humid subtropical climate with occasional fog during winter months, which can temporarily reduce solar output. The region also receives moderate snowfall in winter, which may cover panels and halt production until cleared.

Dust and pollen can be issues during spring and summer, gradually decreasing panel efficiency if not addressed. Additionally, Pamplona's location near the Pyrenees mountains means some locations might experience partial shading from surrounding terrain, particularly during winter when the sun is lower in the sky.

Mitigation Strategies

To maximize solar production despite these challenges, consider these preventative measures:

• Install panels with a self-cleaning tilt angle (the recommended 36 degrees helps with this)
• Use microinverters or power optimizers to minimize the impact of partial shading
• Implement automated cleaning systems or schedule regular maintenance, especially after pollen season
• Consider snow guards or manual snow removal procedures for winter months
• Conduct a thorough shade analysis before installation to avoid terrain or building shadows

With proper planning and these mitigation strategies, solar PV systems in Pamplona can achieve good performance, especially from spring through autumn when conditions are most favorable for solar energy generation.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

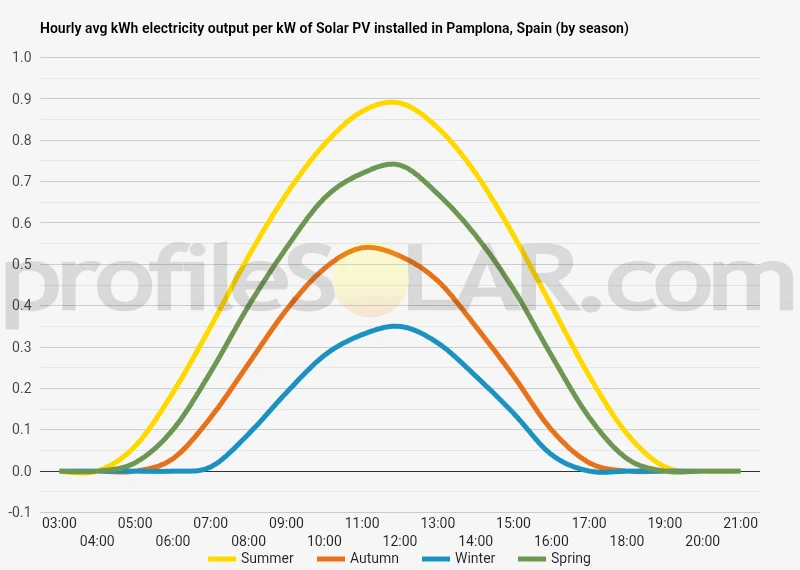

Solar output per kW of installed solar PV by season in Pamplona

Seasonal solar PV output for Latitude: 42.8087, Longitude: -1.6628 (Pamplona, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Pamplona, Spain

To maximize your solar PV system's energy output in Pamplona, Spain (Lat/Long 42.8087, -1.6628) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pamplona, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pamplona, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
27° South in Summer	47° South in Autumn	57° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pamplona, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pamplona, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pamplona, Spain

The topography around Pamplona, Spain presents a diverse landscape characterized by its position in a basin surrounded by mountains. Located in the autonomous community of Navarre in northern Spain, Pamplona sits in what is known as the Pamplona Basin (Cuenca de Pamplona), at an elevation of approximately 450 meters above sea level.

Basin and Mountain Features

The city itself occupies a relatively flat plateau along the Arga River, but this flatness quickly gives way to more varied terrain. To the north, the Pyrenees Mountains begin their ascent, creating a dramatic backdrop to the region. These mountains form a natural border between Spain and France, with peaks reaching over 2,000 meters in the more distant ranges. To the south of Pamplona, the terrain transitions toward the Ebro River valley, becoming gradually more arid and featuring rolling hills rather than sharp mountains. The western side of Pamplona opens toward the Atlantic influence, while the eastern approaches lead toward more mountainous terrain. This basin position creates interesting climatic conditions, as Pamplona experiences influences from both the Atlantic Ocean and the Mediterranean Sea, while being somewhat sheltered by the surrounding higher ground.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several areas near Pamplona show particular promise: The southern plains of Navarre, extending toward the Ebro Valley, offer ideal conditions for solar energy development. This region features relatively flat or gently rolling terrain with fewer obstacles to block sunlight. The land here transitions toward the more arid conditions typical of central Spain, with less cloud cover and greater solar radiation intensity. The elevated plateaus (mesetas) to the southwest of Pamplona provide excellent opportunities for solar installations. These areas combine good solar exposure with land that may be less valuable for agriculture, making them suitable candidates for large-scale development. The Bardenas Reales area, located approximately 70 kilometers southeast of Pamplona, presents a semi-desert landscape with minimal vegetation and excellent solar exposure. This natural park includes zones where development might be possible, offering substantial potential for solar projects.

Topographical Considerations for Solar Development

When evaluating specific sites around Pamplona for solar PV installations, several topographical factors must be considered. South-facing slopes receive more direct sunlight in the Northern Hemisphere, making them particularly valuable for solar development. The region's varied elevation also means that some higher areas may benefit from reduced fog or low cloud that sometimes affects the basin floor. Water drainage patterns should be carefully assessed, as the region experiences seasonal rainfall that can be intense. Sites with good natural drainage or gentle slopes help minimize erosion concerns and maintenance requirements for solar installations. The accessibility of potential solar sites is facilitated by Pamplona's position as a transportation hub, with major highways connecting to other regions of Spain. This infrastructure advantage makes construction and maintenance of large-scale installations more economically viable, even in some of the more remote suitable areas.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.

Do you have more up to date information than this on incentives towards solar PV projects in Spain? Please reach out to us and help us keep this information current. Thanks!
