Paracuellos de Jarama, Spain, located at latitude 40.5034 and longitude -3.524, offers a promising location for solar PV energy generation, with varying potential throughout the year. This Northern Temperate Zone site experiences significant seasonal fluctuations in solar energy production, which is typical for its latitude.

Summer stands out as the most productive season, with an impressive 8.01 kWh of electricity output per day for each kW of installed solar capacity. This high yield is due to longer daylight hours and more direct sunlight during the summer months. Spring follows as the second most productive season, generating 5.85 kWh/day per kW installed, benefiting from increasing daylight and generally clear skies.

Autumn sees a noticeable decrease in production, with 4.06 kWh/day per kW installed. This reduction is attributed to shorter days and the sun's lower position in the sky. Winter presents the greatest challenge for solar energy generation, with only 2.45 kWh/day per kW installed, due to the shortest days and the sun's lowest position in the sky.

Optimal Panel Positioning

To maximize year-round solar energy production at this location, fixed solar panels should be tilted at a 35-degree angle facing south. This orientation ensures optimal exposure to sunlight throughout the year, balancing the varying sun angles across seasons.

Environmental and Weather Considerations

While Paracuellos de Jarama generally offers favorable conditions for solar energy production, there are some factors to consider:

1. Dust and pollen: The area may experience dust accumulation on panels, particularly during drier months. Regular cleaning can mitigate this issue.
2. Occasional hail: Though rare, hailstorms can occur. Installing hail-resistant panels or protective covers can prevent damage.

To enhance energy production and system longevity, consider implementing a regular cleaning schedule, using anti-reflective coatings on panels, and installing a monitoring system to quickly identify and address any performance issues. These measures will help ensure optimal solar energy generation at this location throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

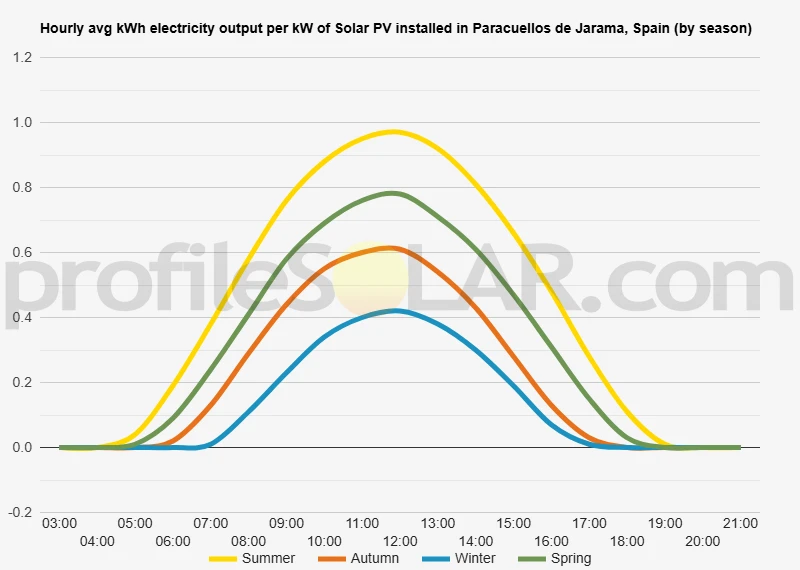

Solar output per kW of installed solar PV by season in Paracuellos De Jarama

Seasonal solar PV output for Latitude: 40.5034, Longitude: -3.524 (Paracuellos De Jarama, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Paracuellos De Jarama, Spain

To maximize your solar PV system's energy output in Paracuellos De Jarama, Spain (Lat/Long 40.5034, -3.524) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Paracuellos De Jarama, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Paracuellos De Jarama, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	45° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Paracuellos De Jarama, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Paracuellos De Jarama, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Paracuellos De Jarama, Spain

The landscape surrounding Paracuellos de Jarama, Spain, is characterized by a mixture of gently rolling hills and flat plains typical of the central Iberian Peninsula. This area, located northeast of Madrid, sits in the Jarama River valley, which has shaped the terrain over millennia. The topography is generally mild, with elevations ranging from about 600 to 700 meters above sea level. To the west and northwest of Paracuellos de Jarama, the land gradually rises towards the foothills of the Sierra de Guadarrama mountain range. This area features more pronounced slopes and occasional rocky outcrops. In contrast, the eastern and southern portions of the region are dominated by relatively flat or slightly undulating terrain, with occasional low hills interrupting the landscape. The Jarama River, flowing from north to south, has carved a shallow valley through the area, creating alluvial plains along its banks. These river terraces are typically flat and fertile, supporting agricultural activities in the region. The river's influence on the topography is evident in the gentle slopes that lead down to the water's edge in many places.

Suitability for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would combine favorable topography with other essential elements such as good solar exposure, minimal shading, and proximity to existing infrastructure. The flat or gently sloping areas to the east and south of Paracuellos de Jarama present the most promising locations for large-scale solar PV projects. These areas offer several advantages: Firstly, the relatively level terrain reduces the need for extensive land preparation, making construction and maintenance easier and more cost-effective. Flat surfaces also minimize inter-panel shading, allowing for optimal arrangement of solar arrays. Secondly, these areas generally have good exposure to sunlight throughout the day, with fewer obstructions from hills or mountains that could cast shadows on the panels. The open nature of the landscape in these directions provides ample space for large installations without significant topographical constraints. Additionally, the proximity to Madrid and other urban centers in this region suggests that the necessary infrastructure for power transmission and distribution may be more readily available or easier to develop. However, it's important to note that while topography is a crucial factor, other considerations such as land ownership, environmental impact, and local regulations would also play significant roles in determining the final suitability of any specific site for large-scale solar PV development.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.
