Port de Sagunt, Spain offers reasonably good conditions for year-round solar PV energy generation, though with significant seasonal variation typical of Mediterranean coastal locations in the Northern Temperate Zone.

Seasonal Solar Performance

The location shows strong summer performance with 7.37 kWh per day per kW of installed capacity, making it the ideal time for solar energy generation. Spring also provides excellent conditions at 5.55 kWh per day per kW, representing the second-best season for solar production. Autumn performance drops to 3.94 kWh per day per kW, while winter shows the lowest output at 2.74 kWh per day per kW. This seasonal pattern reflects the typical Mediterranean climate where summer months provide optimal solar conditions. For maximum year-round energy production at Port de Sagunt, solar panels should be installed at a fixed tilt angle of 34 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the year and weighting for daily solar potential.

Local Factors Affecting Solar Production

Several environmental and weather factors at Port de Sagunt can impact solar panel performance:

• Salt air corrosion: Being a coastal Mediterranean location, salt-laden air can cause corrosion of panel frames, mounting systems, and electrical connections over time
• Dust and sand accumulation: The proximity to beaches and occasional Saharan dust events can lead to significant dust buildup on panel surfaces
• High humidity: Coastal humidity can affect electrical components and potentially cause moisture-related issues
• Strong coastal winds: Mediterranean coastal areas experience variable wind patterns that require robust mounting systems

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented:

• Corrosion-resistant materials: Use marine-grade aluminum frames and stainless steel mounting hardware specifically designed for coastal environments
• Enhanced sealing: Install panels with superior weatherproofing and moisture barriers around all electrical connections
• Regular cleaning schedule: Implement frequent panel cleaning to remove salt deposits and dust accumulation, particularly important during dry periods
• Robust mounting systems: Install reinforced mounting structures designed to withstand coastal wind loads and potential storm conditions
• Proper drainage: Ensure mounting systems allow adequate water drainage to prevent moisture buildup

Despite these local challenges, Port de Sagunt's strong summer and spring solar output, combined with moderate autumn performance, makes it a viable location for solar PV installations when proper preventative measures are implemented during installation and maintenance.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

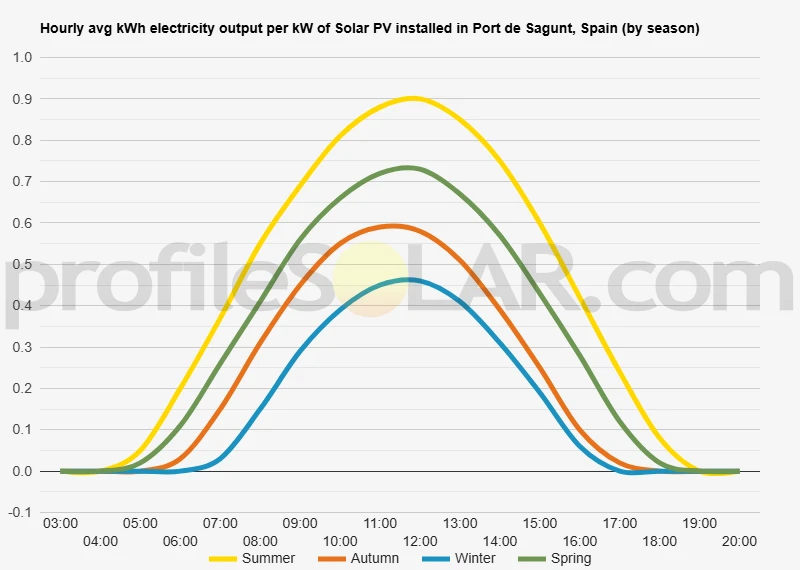

Solar output per kW of installed solar PV by season in Port De Sagunt

Seasonal solar PV output for Latitude: 39.6642, Longitude: -0.2186 (Port De Sagunt, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Port De Sagunt, Spain

To maximize your solar PV system's energy output in Port De Sagunt, Spain (Lat/Long 39.6642, -0.2186) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Port De Sagunt, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Port De Sagunt, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
23° South in Summer	44° South in Autumn	55° South in Winter	32° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Port De Sagunt, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Port De Sagunt, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Port De Sagunt, Spain

Topographical Features of Port de Sagunt

Port de Sagunt sits along Spain's Mediterranean coastline in the Valencia region, positioned on relatively flat coastal plains that extend inland from the sea. The immediate area around the port is characterized by low-lying terrain with gentle gradients, typical of the coastal strip that runs along much of Valencia's shoreline. This flat topography makes the region particularly accessible and has historically supported both industrial development and agricultural activities. Moving inland from the port, the landscape gradually transitions from the coastal plains toward more undulating terrain. The Sierra Calderona mountain range rises to the northwest, creating a natural backdrop to the region. These mountains, while not particularly high, provide a distinct contrast to the flatter coastal areas and influence local weather patterns and drainage systems. The Palancia River flows through the broader region, creating a river valley that cuts through the landscape before reaching the Mediterranean Sea. This river system has shaped much of the local topography over millennia, depositing sediments that have contributed to the fertile plains surrounding Port de Sagunt.

Optimal Areas for Large-Scale Solar Development

The expansive flat plains extending inland from Port de Sagunt present excellent opportunities for large-scale solar photovoltaic installations. These areas offer the dual advantages of minimal topographical challenges and reduced construction costs associated with ground preparation and installation. The gentle, consistent gradients across much of this coastal plain mean that solar arrays can be positioned optimally without significant earthworks or complex foundation requirements. The agricultural lands that stretch inland from the immediate coastal zone represent particularly promising locations for solar development. Many of these areas feature open, unobstructed terrain with minimal shading from natural features. The relatively uniform elevation across these plains ensures consistent solar exposure across large installations, maximizing the efficiency potential of extensive solar farms. Areas slightly inland from the immediate coastal strip often prove most suitable, as they avoid the potential complications of coastal weather effects while maintaining the topographical advantages of the broader coastal plain. The transition zone between the flat coastal areas and the foothills of the Sierra Calderona offers particularly attractive sites, where the land remains sufficiently level for large-scale development while being positioned away from sensitive coastal ecosystems. The river valleys in the region, particularly those associated with the Palancia River system, may offer additional opportunities where the terrain remains relatively flat but benefits from established infrastructure access. However, care must be taken to avoid flood-prone areas and to respect the ecological importance of these river corridors. Industrial areas already established around Port de Sagunt and the broader Sagunto municipality may also present opportunities for solar development, either through rooftop installations on existing structures or through the conversion of underutilized industrial land. The existing electrical infrastructure in these areas can provide advantages for grid connection, reducing the overall development costs for large-scale solar projects.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.

Do you have more up to date information than this on incentives towards solar PV projects in Spain? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
