Solar Energy Potential in Ripollet, Catalonia, Spain

Ripollet, Catalonia, Spain, located at 41.4913° N, 2.1565° E in the Northern Temperate Zone, offers varying potential for solar energy production throughout the year. This location experiences significant seasonal fluctuations in solar energy generation, which is important to consider when planning a photovoltaic (PV) installation. The solar energy production in Ripollet peaks during summer months, with an impressive 7.14 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season, generating 5.50 kWh per day. Production decreases considerably in autumn to 3.52 kWh per day, reaching its lowest point in winter with only 2.38 kWh per day.

Seasonal Variations and Optimal Installation

This seasonal pattern creates a nearly 3:1 ratio between the best and worst production periods, with summer generating almost three times the energy of winter. This variation is typical for locations in the Northern Temperate Zone but should be accounted for when designing a system to meet year-round energy needs. For a fixed panel installation in Ripollet, Catalonia, the ideal angle to tilt panels for maximizing total year-round production is 36 degrees facing South. This angle optimizes the annual energy harvest by balancing the seasonal variations in sun position throughout the year.

Potential Challenges and Solutions

Several environmental factors could potentially impact solar production in Ripollet:

• Dust and urban pollution can be significant in this metropolitan area near Barcelona, potentially reducing panel efficiency by 5-15% if not regularly cleaned.
• The Mediterranean climate brings occasional intense rainstorms that can temporarily reduce production but also naturally clean panels.
• While rare, hail events could damage panels if they're not rated for impact resistance.

To mitigate these challenges, consider installing self-cleaning panels with a hydrophobic coating that helps rain wash away dust. Selecting panels with high impact resistance ratings is advisable to protect against potential hail damage. Additionally, a monitoring system can help identify when manual cleaning may be necessary during extended dry periods when dust accumulation is highest. Regular maintenance schedules should prioritize cleaning before the high-production summer months to ensure maximum energy harvest during the most productive period of the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

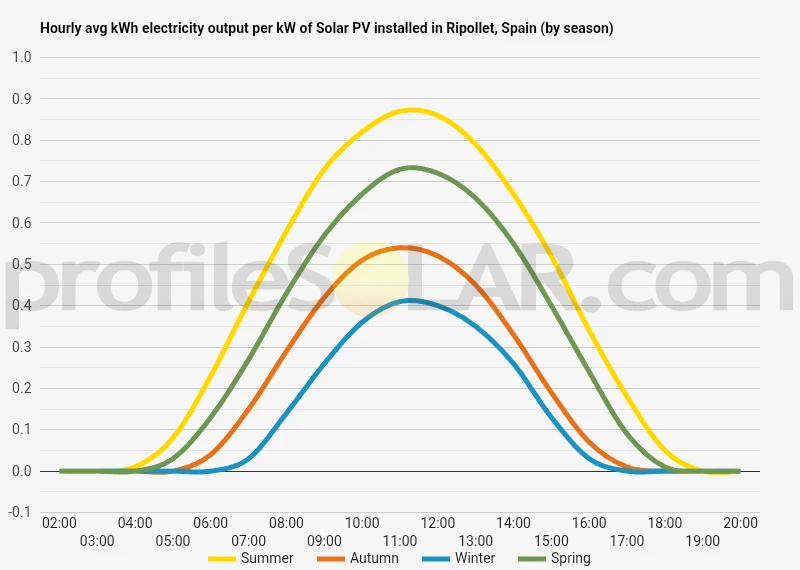

Solar output per kW of installed solar PV by season in Ripollet

Seasonal solar PV output for Latitude: 41.4913, Longitude: 2.1565 (Ripollet, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Ripollet, Spain

To maximize your solar PV system's energy output in Ripollet, Spain (Lat/Long 41.4913, 2.1565) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ripollet, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ripollet, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	45° South in Autumn	56° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ripollet, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ripollet, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ripollet, Spain

Ripollet is situated in the northeastern part of Spain, in the province of Barcelona, Catalonia. The town lies in a relatively flat area within the Vallès Occidental comarca, nestled between the Mediterranean Sea to the southeast and more mountainous terrain to the northwest. This region forms part of the broader Vallès Depression, a natural corridor between the Catalan Pre-Coastal and Coastal mountain ranges.

Surrounding Topography

The immediate area around Ripollet features gentle undulations rather than dramatic elevation changes. The town itself sits at approximately 75 meters above sea level. To the southeast, the terrain gradually slopes down toward Barcelona and the Mediterranean coast, about 15 kilometers away. To the northwest rise the more significant elevations of the Catalan Pre-Coastal Range (Serra Prelitoral), including the Sant Llorenç del Munt massif and Montserrat further inland. The Ripoll River, a tributary of the Besòs River, flows through the area and has historically shaped the local landscape, creating a modest river valley. The broader Besòs River basin provides relatively flat terrain throughout much of the immediate region.

Potential for Solar PV Development

For large-scale solar photovoltaic installations, several nearby areas present favorable conditions based on topographical considerations: The flatter lands of the Vallès Depression extending north and west from Ripollet offer promising locations for solar development. These areas benefit from relatively level terrain that minimizes construction challenges and shadow effects between solar arrays. Particularly suitable are the agricultural plains between Ripollet and neighboring municipalities like Barberà del Vallès, Sabadell, and Polinyà. South-facing slopes of the gentler hills in the region would also provide advantageous conditions for solar collection. These natural inclines can optimize the angle of solar panels toward the sun's path without requiring extensive structural adjustments. The broader Vallès Occidental comarca contains numerous industrial zones and commercial areas with large roof surfaces that could accommodate substantial solar installations without consuming additional land resources. Areas to avoid would include the steeper sections of the Pre-Coastal Range to the northwest, where challenging terrain would complicate construction and potentially create shading issues. Similarly, the densely urbanized zones closer to Barcelona present limited opportunities for large-scale development due to space constraints. The region benefits from the Mediterranean climate, with abundant sunshine throughout the year and relatively mild winters. These climatic conditions, combined with the favorable topography of the Vallès Depression, make the broader area around Ripollet well-suited for solar energy generation, particularly in the flatter, more open spaces extending north and west from the town.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.

Do you have more up to date information than this on incentives towards solar PV projects in Spain? Please reach out to us and help us keep this information current. Thanks!
