Solar Energy Potential at Rivas-Vaciamadrid, Spain

Rivas-Vaciamadrid, Spain, located in the Northern Temperate Zone, offers a promising location for solar PV energy generation, though with notable seasonal variations. This Madrid suburb experiences strong solar potential that fluctuates significantly throughout the year, making it necessary to understand these patterns for optimal energy planning. The location demonstrates excellent summer performance, with solar panels generating approximately 8.01kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season, yielding about 5.85kWh daily per installed kilowatt. Energy production decreases considerably in autumn to 4.08kWh per day, while winter represents the annual low point with just 2.49kWh daily production per kilowatt of installed capacity.

Seasonal Considerations

The substantial difference between summer and winter production (with summer yielding more than three times the energy of winter) indicates that Rivas-Vaciamadrid is ideal for summer-focused energy needs. This seasonal pattern makes the location particularly suitable for applications like cooling systems and irrigation, which align with peak production periods. For year-round applications requiring consistent energy supply, supplementary power sources or energy storage solutions would be beneficial to compensate for the significant winter reduction in solar generation. The strong spring and summer performance, however, could potentially offset these winter limitations if appropriate storage capacity is implemented.

Optimal Panel Installation

For fixed solar panel installations in Rivas-Vaciamadrid, the ideal tilt angle to maximize year-round energy production is 34 degrees facing South. This angle has been calculated to optimize annual energy yield by accounting for the location's specific solar elevation patterns throughout the year and weighting them according to daily PV potential.

Environmental and Weather Considerations

Several environmental factors could impact solar production at this location. Rivas-Vaciamadrid experiences hot, dry summers with occasional dust storms that can significantly reduce panel efficiency by creating a layer of dust that blocks sunlight. Regular cleaning and maintenance protocols are essential preventative measures, potentially including automated cleaning systems for larger installations. The region also experiences occasional hailstorms that could physically damage panels. Installing hail-resistant panels with tempered glass and proper mounting systems that can withstand local weather conditions would mitigate this risk. Additionally, the area's temperature extremes—particularly summer heat—can reduce panel efficiency as solar cells become less effective at higher temperatures. Selecting panels with lower temperature coefficients and ensuring adequate airflow behind panels through proper mounting configurations can help minimize these efficiency losses and maintain more consistent energy production year-round.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

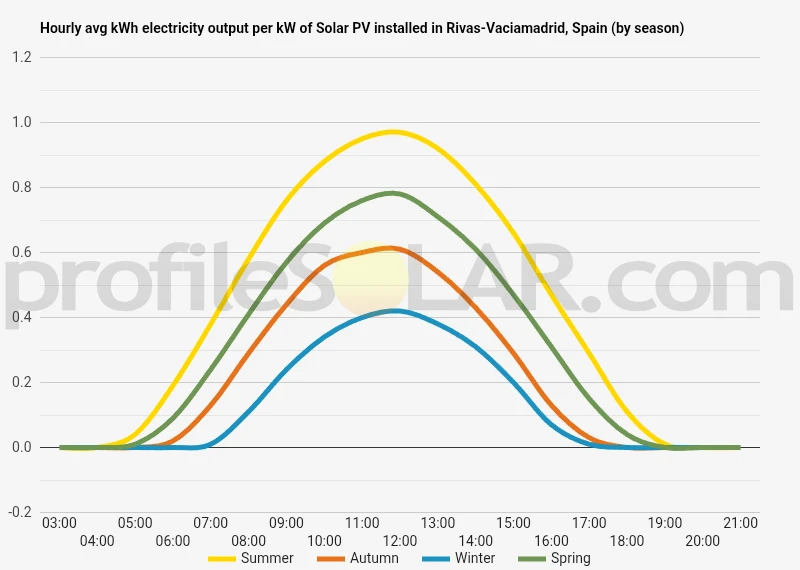

Solar output per kW of installed solar PV by season in Rivas-Vaciamadrid

Seasonal solar PV output for Latitude: 40.2788, Longitude: -3.2819 (Rivas-Vaciamadrid, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Rivas-Vaciamadrid, Spain

To maximize your solar PV system's energy output in Rivas-Vaciamadrid, Spain (Lat/Long 40.2788, -3.2819) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rivas-Vaciamadrid, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rivas-Vaciamadrid, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	45° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rivas-Vaciamadrid, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rivas-Vaciamadrid, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rivas-Vaciamadrid, Spain

The terrain around Rivas-Vaciamadrid presents a diverse topographical landscape characteristic of central Spain's Meseta Central region. Located in the southeastern part of the Madrid metropolitan area, Rivas-Vaciamadrid sits in the valley of the Jarama River, which defines much of the local geography.

Valley and River Systems

The area is dominated by the confluence of two significant rivers: the Jarama and the Manzanares. This river junction creates a broad valley with fertile plains that have historically supported agricultural activities. The Jarama River carves through sedimentary deposits, forming distinctive terraces and creating a relatively flat valley floor. To the east of the town, the terrain begins to rise into gently rolling hills composed primarily of gypsum and marl deposits. These geological formations create a semi-arid landscape with noticeable elevation changes that become more pronounced as one moves eastward away from the river valley.

Mesa Formations and Escarpments

One of the most distinctive topographical features near Rivas-Vaciamadrid is the presence of mesa formations and escarpments. These elevated plateaus with steep sides are particularly prominent along the eastern boundaries, where erosion has carved dramatic cliff faces. These escarpments, locally known as "cortados," rise approximately 40-60 meters above the valley floor and provide striking visual landmarks. The southeastern portion of the region features more rugged terrain with numerous ravines and gullies formed by erosional processes. These create a badlands-type landscape with complex drainage patterns and varied elevation profiles.

Potential for Solar PV Development

Several areas around Rivas-Vaciamadrid offer excellent conditions for large-scale solar photovoltaic installations. The most suitable locations include: The elevated plateau areas to the southeast present ideal conditions for solar development. These higher elevation zones benefit from minimal shadowing effects and good solar exposure throughout the day. The relatively flat mesa tops provide stable foundations for panel installation without requiring extensive terrain modification. The gently sloping terrains to the east and south of the urban center also offer promising sites for solar farms. These areas combine favorable orientation toward the sun with adequate space for large installations. The slight southern inclination of many of these slopes naturally optimizes solar collection efficiency. Former agricultural lands in the valley areas, particularly those with poor soil quality or those affected by salinization, could be repurposed for solar development. These locations benefit from existing access infrastructure and minimal environmental sensitivity.

Topographical Considerations

When evaluating specific sites for solar development, several topographical factors merit consideration. The escarpment areas, while visually impressive, present challenges for development due to their steep gradients and potential for erosion. Similarly, the immediate floodplains of the Jarama and Manzanares rivers should be avoided due to flooding risks. The semi-arid climate has shaped a landscape with relatively sparse vegetation in many areas, which minimizes clearing requirements for solar installations. However, the presence of gypsum soils in some areas may require specialized foundation designs to address potential ground instability. The regional terrain benefits from natural drainage patterns that help prevent water accumulation around potential installation sites. This characteristic reduces the risk of flooding and erosion that might otherwise compromise solar infrastructure. The combination of elevated plateaus, gently rolling hills, and repurposed agricultural land provides numerous opportunities for solar PV development around Rivas-Vaciamadrid, with the southeastern sectors offering particularly favorable topographical conditions.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.

Do you have more up to date information than this on incentives towards solar PV projects in Spain? Please reach out to us and help us keep this information current. Thanks!
