Rota, Andalusia, Spain presents a moderately good location for year-round solar energy generation, though with significant seasonal variation in output potential.

Seasonal Solar Performance

The solar energy production at this location shows strong seasonal patterns. Summer delivers the highest output at 8.19 kWh per day per kW of installed capacity, making it an excellent period for solar generation. Spring follows as the second-best season with 6.70 kWh per day per kW, providing very good production levels. Autumn sees a notable drop to 4.80 kWh per day per kW, which still represents reasonable output for solar systems. Winter presents the most challenging period with only 3.03 kWh per day per kW, representing less than half of the summer production levels.

Optimal Installation Configuration

For maximum year-round energy production at Rota, Andalusia, fixed solar panels should be installed at a 31-degree tilt facing south. This angle has been calculated to optimize total annual output by accounting for the sun's varying position throughout the year and weighting for the strongest solar irradiance periods.

Local Factors Affecting Solar Production

Several environmental and weather factors in Rota could impact solar panel performance:

• Atlantic coastal salt spray and humidity can cause corrosion and reduce panel efficiency over time
• Saharan dust storms occasionally deposit fine sand particles on panels, reducing light transmission
• Mediterranean climate brings occasional heavy rainfall and storms that can affect system performance
• Coastal fog during certain periods can temporarily reduce solar irradiance

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several installation strategies should be considered:

• Use marine-grade mounting hardware and corrosion-resistant materials to withstand salt air exposure
• Install panels with adequate spacing for airflow to prevent moisture buildup and improve cooling
• Implement regular cleaning schedules, particularly after dust storms or extended dry periods
• Consider anti-soiling coatings on panels to reduce dust adhesion and make cleaning more effective
• Ensure proper drainage and waterproofing of all electrical connections
• Install monitoring systems to quickly identify performance drops due to soiling or weather impacts

Overall, while Rota experiences some coastal challenges, proper installation techniques and maintenance practices can help ensure reliable solar energy production throughout the year, with particularly strong performance during the spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

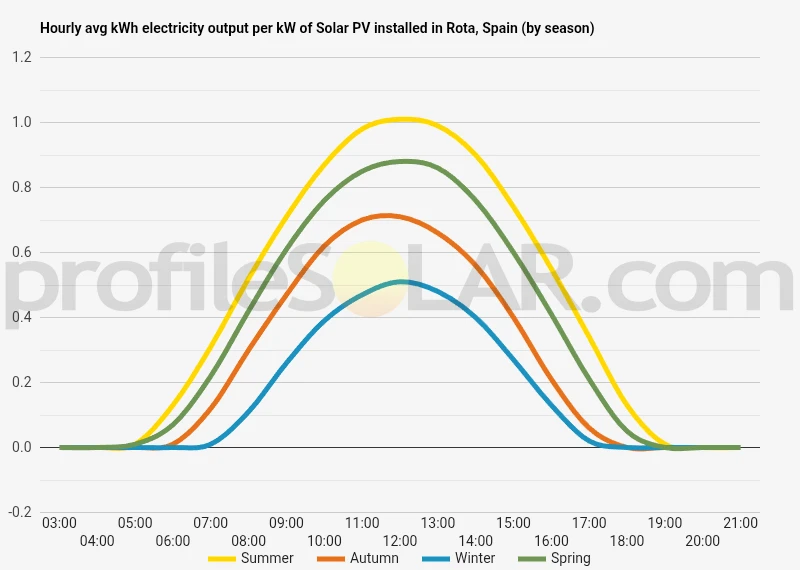

Solar output per kW of installed solar PV by season in Rota

Seasonal solar PV output for Latitude: 36.6285, Longitude: -6.3595 (Rota, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 31° South in Rota, Spain

To maximize your solar PV system's energy output in Rota, Spain (Lat/Long 36.6285, -6.3595) throughout the year, you should tilt your panels at an angle of 31° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rota, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rota, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 31° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
20° South in Summer	41° South in Autumn	52° South in Winter	29° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rota, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rota, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rota, Spain

Topography Around Rota, Spain

Rota sits on the southwestern coast of Spain in the province of Cádiz, positioned along the Atlantic Ocean where the coastline forms part of the broader Bay of Cádiz. The town occupies a relatively flat coastal plain that extends inland from sandy beaches and low-lying shoreline areas. This coastal plain is characterized by gentle undulations and minimal elevation changes, with the terrain rising very gradually as it moves away from the ocean.

The immediate surroundings of Rota feature predominantly flat to gently rolling agricultural land, with elevations typically ranging from sea level to approximately 50 meters above sea level within a 10-kilometer radius. The landscape is punctuated by scattered farmsteads, olive groves, and cultivated fields that have been shaped by centuries of agricultural use. Small valleys and drainage channels cut through the terrain, though these are generally shallow and do not create significant topographical barriers.

Moving further inland toward the northeast and east, the topography begins to show more pronounced relief as it approaches the foothills of the broader Andalusian mountain systems. However, within a 20-kilometer radius of Rota, the terrain remains largely accessible and manageable for large-scale development projects, with most areas maintaining relatively gentle slopes and stable geological conditions.

Areas Suitable for Large-Scale Solar PV Development

The flat to gently rolling agricultural plains extending northeast and east of Rota present the most promising opportunities for large-scale solar photovoltaic installations. These areas combine several advantageous characteristics: minimal slope gradients that reduce construction complexity and costs, extensive open spaces with limited existing development, and good accessibility via the regional road network that connects to major population centers.

The agricultural zones located between Rota and the inland towns of Chipiona and Sanlúcar de Barrameda offer particularly suitable conditions. These areas feature large, relatively unobstructed parcels of land with gentle topography that would facilitate efficient panel installation and maintenance access. The existing agricultural road network provides a foundation for the transportation infrastructure needed during construction and ongoing operations.

Areas to the southeast of Rota, extending toward Jerez de la Frontera, also present excellent potential for solar development. This region is characterized by expansive agricultural plains with minimal topographical constraints and good connectivity to Spain's electrical transmission infrastructure. The terrain in this direction maintains favorable characteristics for several kilometers inland, providing ample space for utility-scale solar installations.

The coastal areas immediately adjacent to Rota are generally less suitable for large-scale solar development due to environmental protections, existing urban development, and the potential for salt spray effects from the nearby Atlantic Ocean. However, areas just a few kilometers inland avoid these coastal complications while maintaining the favorable flat topography and clear sky exposure that make this region attractive for solar energy production.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.
