Sabadell, Catalonia, Spain, located at latitude 41.545 and longitude 2.0761, presents a moderately favorable location for solar PV energy generation throughout the year. This Northern Temperate Zone city experiences significant seasonal variations in solar energy production, which is typical for its latitude.

Seasonal Solar Production

Solar energy output in Sabadell varies considerably across the seasons. Summer stands out as the most productive period, with an impressive 7.16 kWh per day for each kW of installed solar capacity. Spring follows as the second-most productive season, generating 5.55 kWh per day. Autumn sees a significant drop to 3.58 kWh per day, while winter experiences the lowest output at 2.45 kWh per day.

The substantial difference between summer and winter production highlights the importance of proper system sizing to ensure adequate energy supply during less productive months. Despite the winter lull, the overall yearly production remains reasonably good, making solar PV a viable option for Sabadell residents.

Optimal Panel Positioning

To maximize year-round solar energy production in Sabadell, Catalonia, fixed solar panels should be tilted at an angle of 36 degrees facing south. This optimal angle takes into account the city's latitude and seasonal sun positions, ensuring the best possible energy capture throughout the year.

Environmental Considerations

While Sabadell generally offers favorable conditions for solar energy production, there are a few environmental factors to consider:

• Dust and pollen: Sabadell's Mediterranean climate can lead to dust accumulation on solar panels, potentially reducing efficiency. Regular cleaning can mitigate this issue.
• Occasional hailstorms: Though rare, hailstorms can occur in the region. Installing hail-resistant panels or protective coverings can prevent damage during extreme weather events.

To enhance solar production and system longevity, consider implementing a regular maintenance schedule, including panel cleaning and system checks. Additionally, investing in high-quality, weather-resistant equipment can help ensure optimal performance in varying conditions.

Overall, while Sabadell experiences seasonal fluctuations in solar energy production, its location remains suitable for solar PV installations. With proper planning and maintenance, residents can effectively harness solar energy throughout the year, contributing to a more sustainable energy future.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

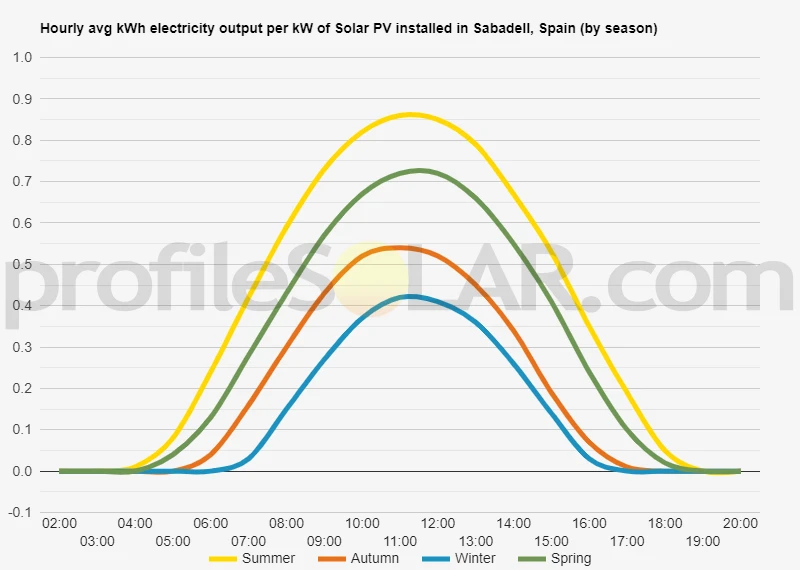

Solar output per kW of installed solar PV by season in Sabadell

Seasonal solar PV output for Latitude: 41.545, Longitude: 2.0761 (Sabadell, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Sabadell, Spain

To maximize your solar PV system's energy output in Sabadell, Spain (Lat/Long 41.545, 2.0761) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Sabadell, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sabadell, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	46° South in Autumn	57° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Sabadell, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sabadell, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Sabadell, Spain

Sabadell, located in the Vallès Occidental comarca of Catalonia, Spain, is situated in a diverse topographical region. The city itself lies on a relatively flat plain, known as the Vallès Depression, which is part of the larger Catalan Pre-Coastal Depression. This area is characterized by gently rolling terrain with an average elevation of around 190 meters above sea level. To the north and northwest of Sabadell, the landscape gradually rises towards the Catalan Pre-Coastal Range. This mountain range, which includes the Sant Llorenç del Munt Natural Park, features more rugged terrain with steep slopes and forested areas. The highest peak in the vicinity, La Mola, reaches an elevation of 1,104 meters. South and southeast of Sabadell, the terrain remains mostly flat or gently undulating as it extends towards the Mediterranean coast. This area is part of the broader Barcelona metropolitan region and includes a mix of urban development and agricultural land.

Suitability for Large-Scale Solar PV

When considering areas nearby Sabadell for large-scale solar photovoltaic (PV) installations, several factors come into play. The most suitable locations would typically be: The flat or gently sloping areas to the south and southeast of Sabadell would be prime candidates for large-scale solar PV installations. These areas benefit from relatively consistent sun exposure throughout the day and have fewer topographical obstacles that could cast shadows on solar panels. Additionally, the proximity to urban centers like Barcelona could make power distribution more efficient. Some of the less steep hillsides in the Pre-Coastal Range to the north and northwest might also be suitable for solar PV. While these areas may have slightly less consistent sun exposure due to the terrain, they often have the advantage of less competition for land use compared to the more densely populated plains. It's important to note that the final suitability of any site would depend on various factors beyond just topography, including local zoning laws, grid connectivity, and environmental considerations. Any large-scale solar project would require detailed site-specific studies to determine the optimal location.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.

Do you have more up to date information than this on incentives towards solar PV projects in Spain? Please reach out to us and help us keep this information current. Thanks!
