San Fernando, Andalusia, Spain offers good conditions for solar energy generation throughout most of the year, though with significant seasonal variation typical of its Northern Temperate Zone location.

Seasonal Solar Performance

Summer provides the strongest solar generation potential at this location, producing 8.19kWh per day per kW of installed capacity. This represents the peak season when solar panels will deliver their maximum output. Spring follows as the second-best season with 6.70kWh/day per kW, making it another highly productive period for solar energy. Autumn sees a notable decline to 4.80kWh/day per kW, while winter drops to the lowest production at just 3.03kWh/day per kW. This winter figure represents about 37% of summer production, indicating substantial seasonal variation that system owners should plan for.

Optimal Panel Configuration

For fixed panel installations at San Fernando, Andalusia, the ideal tilt angle is 31 degrees facing south to maximize total year-round solar production. This angle has been calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to determine the optimal compromise for annual energy generation.

Environmental and Weather Factors

Several factors in the San Fernando area can impact solar panel performance:

• Coastal salt air and humidity from nearby Atlantic waters can cause corrosion and reduce panel efficiency over time
• Dust accumulation from regional winds, particularly during dry periods
• Occasional severe weather including strong coastal winds and heavy rainfall
• High summer temperatures that can reduce panel efficiency despite increased sunlight

Preventative Measures

To maximize solar energy production despite these challenges, several installation strategies are recommended. Choose marine-grade mounting systems and components specifically designed to resist salt corrosion, and ensure all electrical connections are properly sealed against moisture infiltration. Regular cleaning schedules become particularly important to remove salt deposits and dust that can significantly reduce panel output. Installing panels with adequate ventilation space underneath helps manage heat buildup during intense summer periods, maintaining better efficiency when temperatures soar. Proper structural mounting is essential to withstand coastal wind loads, and selecting panels with strong warranties against environmental degradation will provide better long-term performance in this maritime climate.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

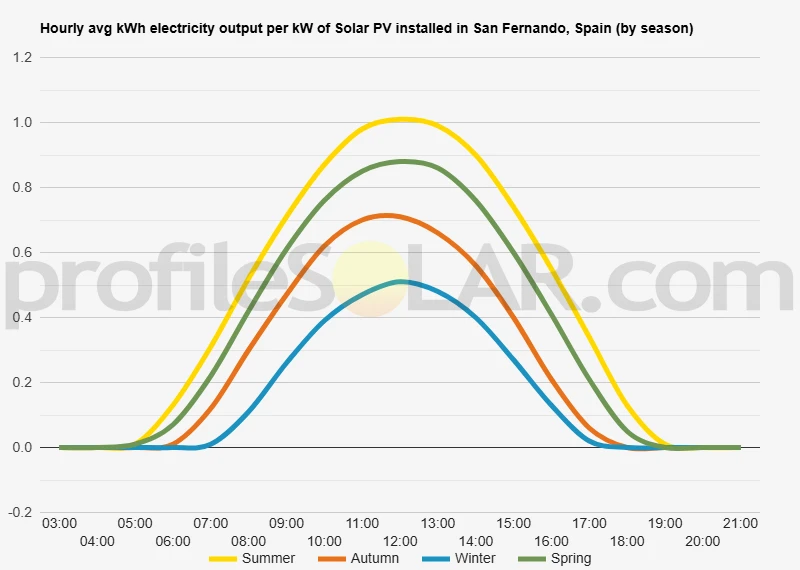

Solar output per kW of installed solar PV by season in San Fernando

Seasonal solar PV output for Latitude: 36.4753, Longitude: -6.1946 (San Fernando, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 31° South in San Fernando, Spain

To maximize your solar PV system's energy output in San Fernando, Spain (Lat/Long 36.4753, -6.1946) throughout the year, you should tilt your panels at an angle of 31° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for San Fernando, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in San Fernando, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 31° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
20° South in Summer	41° South in Autumn	51° South in Winter	29° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in San Fernando, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in San Fernando, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around San Fernando, Spain

Topography Around San Fernando

San Fernando sits in the southwestern corner of Spain, positioned on a small island within the Bay of Cádiz in Andalusia. The town occupies a strategic location between the Atlantic Ocean and the mainland, connected by bridges and causeways that span the shallow waters and salt marshes surrounding it. The terrain here is remarkably flat, with elevations rarely exceeding 20 meters above sea level across the immediate area. The landscape is dominated by extensive salt marshes, tidal flats, and coastal wetlands that stretch for kilometers in all directions. These areas, known locally as marismas, create a distinctive patchwork of water channels, mudflats, and low-lying terrain that floods and drains with the tides. The region forms part of the larger Doñana wetland system, one of Europe's most important coastal ecosystems. Moving inland from San Fernando, the topography remains predominantly flat with gentle, rolling hills beginning to appear several kilometers to the east and northeast. The coastal plain extends inland for considerable distances, broken only by occasional low ridges and shallow valleys carved by seasonal streams. The soil composition varies from sandy coastal deposits near the shore to clay-rich sediments further inland, reflecting the area's geological history as an ancient seabed.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie inland from San Fernando, particularly in the elevated areas to the east and northeast. These zones offer several key advantages over the immediate coastal region. The terrain becomes more stable and less prone to flooding, while still maintaining the relatively flat topography that makes construction and maintenance more economical. Areas around the municipalities of Chiclana de la Frontera and Conil de la Frontera, located roughly 15-25 kilometers east of San Fernando, present excellent potential for solar development. These locations feature gently undulating farmland with good drainage, stable soil conditions, and minimal environmental restrictions compared to the protected wetlands closer to the coast. The land use in these areas is primarily agricultural, with large open fields that could accommodate substantial solar arrays without significant topographical challenges. The region northeast toward Medina-Sidonia also offers favorable conditions, with slightly higher elevations providing good drainage and expansive areas of relatively unused or low-productivity agricultural land. The terrain here consists of broad, gentle slopes that face generally southward, creating natural advantages for solar panel orientation and reducing the need for extensive grading or earthwork during installation. Transportation infrastructure in these inland areas is well-developed, with good road networks connecting to major highways and the electrical grid infrastructure necessary for large-scale power generation projects. The combination of suitable topography, favorable land use patterns, and existing infrastructure makes these inland locations significantly more practical for solar development than the immediate coastal zone around San Fernando itself.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.

Do you have more up to date information than this on incentives towards solar PV projects in Spain? Please reach out to us and help us keep this information current. Thanks!
