San Pedro del Pinatar, Spain presents a moderately favorable location for year-round solar PV energy generation, though with notable seasonal variations that affect overall efficiency.

Seasonal Solar Performance

The location experiences significant seasonal fluctuations in solar energy output. Summer delivers the strongest performance at 7.32kWh per day per kW of installed capacity, making it an excellent period for solar generation. Spring also provides strong output at 5.92kWh per day per kW, representing the second-best season for energy production. However, the location faces challenges during cooler months. Autumn drops to 4.15kWh per day per kW, while winter reaches the lowest point at just 2.95kWh per day per kW. This represents a substantial difference between peak summer and minimum winter production.

Optimal Installation Configuration

For fixed panel installations at San Pedro del Pinatar, the ideal tilt angle is 33 degrees facing south to maximize total year-round production. This angle is calculated by analyzing daily solar elevation angles at this latitude, determining optimal panel positioning, and weighting these angles using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental Factors and Mitigation Strategies

Several environmental factors in this coastal Mediterranean location can impact solar production:

• Salt air corrosion from proximity to the Mar Menor and Mediterranean Sea
• Sand and dust accumulation from nearby beaches and arid inland areas
• High humidity levels that can affect equipment longevity
• Occasional strong coastal winds

Preventative Measures

To maximize energy production and system longevity, several installation strategies are recommended:

• Use marine-grade aluminum frames and corrosion-resistant mounting hardware
• Install panels with anti-reflective coatings that resist salt buildup
• Implement regular cleaning schedules to remove salt, sand, and dust deposits
• Ensure robust mounting systems designed for coastal wind loads
• Apply protective coatings to electrical connections and use sealed junction boxes

Regular maintenance becomes particularly important in this environment, with monthly cleaning recommended during dusty periods and quarterly inspections of all hardware for signs of corrosion or wear.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 361 locations across Spain. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Spain by location

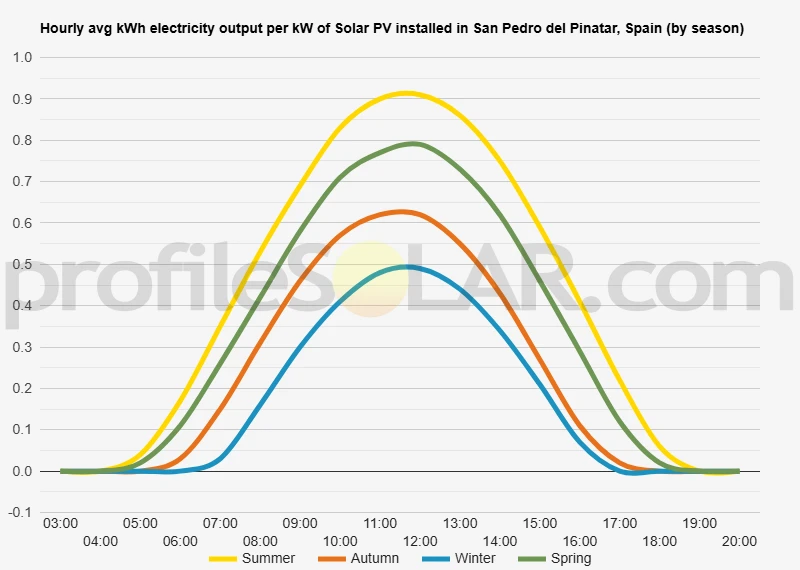

Solar output per kW of installed solar PV by season in San Pedro Del Pinatar

Seasonal solar PV output for Latitude: 37.8372, Longitude: -0.7919 (San Pedro Del Pinatar, Spain), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 33° South in San Pedro Del Pinatar, Spain

To maximize your solar PV system's energy output in San Pedro Del Pinatar, Spain (Lat/Long 37.8372, -0.7919) throughout the year, you should tilt your panels at an angle of 33° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for San Pedro Del Pinatar, Spain

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in San Pedro Del Pinatar, Spain. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 33° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
21° South in Summer	42° South in Autumn	53° South in Winter	30° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in San Pedro Del Pinatar, Spain

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in San Pedro Del Pinatar, Spain.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around San Pedro Del Pinatar, Spain

Topographical Features of San Pedro del Pinatar

San Pedro del Pinatar sits in the southeastern corner of Spain's Murcia region, positioned along the Mediterranean coastline where the Mar Menor lagoon meets the open sea. The terrain around this coastal municipality is characterized by remarkably flat topography, with elevations rarely exceeding 50 meters above sea level across the immediate vicinity. This low-lying landscape forms part of the broader Campo de Cartagena plain, creating an expansive area of gentle, rolling terrain that extends inland from the coast. The most distinctive geographical feature in the area is the Mar Menor itself, Europe's largest saltwater lagoon, which lies immediately west of the town. This shallow body of water is separated from the Mediterranean by La Manga del Mar Menor, a narrow strip of land that creates a unique coastal environment. The lagoon's presence has shaped the surrounding landscape, contributing to the formation of salt flats and wetland areas that are now protected as part of the Regional Park of Salinas and Arenales de San Pedro del Pinatar. Moving inland from the coast, the topography becomes increasingly uniform, featuring vast agricultural plains that stretch toward the interior of Murcia province. These plains are punctuated by occasional low hills and gentle undulations, but the overall character remains one of open, accessible terrain with minimal elevation changes. The soil composition varies from sandy coastal areas to more fertile agricultural land further inland, with some areas featuring the distinctive reddish earth common to this part of southeastern Spain.

Optimal Areas for Large-Scale Solar Development

The extensive flat plains extending northwest and southwest from San Pedro del Pinatar present the most suitable conditions for large-scale solar photovoltaic installations. These agricultural areas, particularly those located between 5 and 15 kilometers inland from the coast, offer several advantages including minimal grading requirements, excellent accessibility for construction and maintenance vehicles, and sufficient space for expansive solar arrays without significant topographical constraints. The Campo de Cartagena region, which encompasses much of the area surrounding San Pedro del Pinatar, provides particularly favorable conditions for solar development. The flat to gently rolling terrain in this zone minimizes shading issues between solar panel rows and allows for optimal panel orientation without the complications that arise from steep slopes or irregular topography. The open nature of this landscape also facilitates the installation of necessary infrastructure such as access roads, electrical substations, and transmission lines. Areas to the west and northwest of the municipality, moving away from the more environmentally sensitive coastal zones and the Mar Menor lagoon, would be most appropriate for large solar installations. These inland locations avoid potential conflicts with protected wetland areas while still maintaining the favorable topographical characteristics that make solar development economically viable. The relatively sparse population density in these agricultural zones also reduces potential land use conflicts and provides opportunities for larger, more efficient solar installations. The terrain's accessibility is another significant advantage, as the flat topography allows for easy transportation of equipment and materials during construction phases. The existing road network in the region, combined with the lack of significant elevation changes, means that even the largest solar components can be transported to potential installation sites without the logistical challenges that might arise in more mountainous regions.

Spain solar PV Stats as a country

Spain ranks 10th in the world for cumulative solar PV capacity, with 15,952 total MW's of solar PV installed. This means that 9.00% of Spain's total energy as a country comes from solar PV (that's 6th in the world). Each year Spain is generating 237 Watts from solar PV per capita (Spain ranks 20th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Spain?

Yes, there are several incentives for businesses wanting to install solar energy in Spain. These include the following:



1. The Spanish government offers a feed-in tariff (FIT) for businesses that install solar energy systems. This FIT guarantees a fixed price per kWh of electricity generated by the system over a period of 20 years.



2. Businesses can also benefit from tax deductions and other financial incentives when installing solar energy systems in Spain.



3. Companies may be eligible for grants or subsidies from regional governments or local authorities to help cover the cost of installation and maintenance of their solar energy systems.



4. Businesses may also be able to take advantage of net metering, which allows them to sell excess electricity generated by their solar energy system back into the grid at market prices, thus reducing their overall electricity costs even further.

Do you have more up to date information than this on incentives towards solar PV projects in Spain? Please reach out to us and help us keep this information current. Thanks!
