Solar PV Analysis of Habo, Sweden
Habo, Jönköping, Sweden, located at latitude 57.9089 and longitude 14.0637, has considerable potential for solar photovoltaic (PV) energy production due to its seasonal solar irradiance patterns. During the summer season, the average energy generation is substantially high at 5.66 kWh per day per kW of installed solar capacity. This high yield can be attributed to longer daylight hours and more direct sunlight during these months.
In spring, with moderate daylight hours and relatively favorable sun exposure, an average of 4.32 kWh/day per kW can be produced from installed solar panels in Habo.
However, in autumn and winter seasons when daylight hours are shorter with less direct sunlight exposure due to low sun angles, the power generation decreases significantly to an average of 1.71kWh/day and 0.73kWh/day respectively.
For a fixed panel installation in Habo's geographical location, it would be optimal to tilt the panels towards south at an angle of approximately 48 degrees for maximum year-round energy production.
Despite seasonal variations in power generation figures which are typical for any location outside equatorial regions globally; there aren't any significant environmental or topographical barriers that could hinder solar PV performance in Habo.
The weather conditions here are generally benign without extreme events that could pose risks to PV installations such as hailstorms or tornadoes; this further enhances Habo's suitability for consistent year-round renewable energy production through solar technology.
To ensure even greater efficiency from your PV system installation despite seasonal fluctuations in sunlight availability; regular maintenance including cleaning of panels from dust or snow accumulation is recommended along with periodic checks on system components such as wiring connections and inverters.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 174 locations across Sweden. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Sweden by location

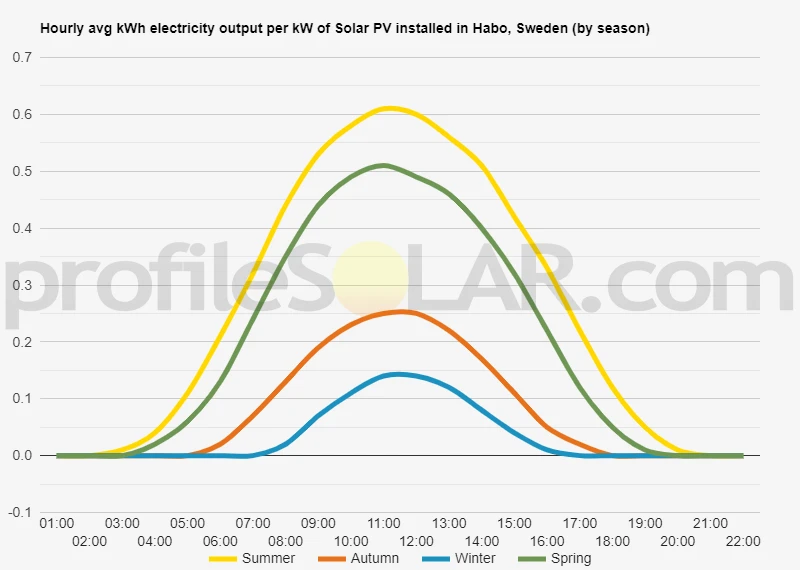

Solar output per kW of installed solar PV by season in Habo
Seasonal solar PV output for Latitude: 57.9089, Longitude: 14.0637 (Habo, Sweden), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 48° South in Habo, Sweden
To maximize your solar PV system's energy output in Habo, Sweden (Lat/Long 57.9089, 14.0637) throughout the year, you should tilt your panels at an angle of 48° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Habo, Sweden
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Habo, Sweden. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 48° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 41° South in Summer | 60° South in Autumn | 70° South in Winter | 50° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Habo, Sweden
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Habo, Sweden.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Habo, Sweden
The topography around Habo, Sweden is mostly flat with some rolling hills and low-lying valleys. Areas to the south of the town, near Lake Vättern, are particularly well suited for large-scale solar PV installations due to their open fields and wide expanses of unobstructed land. The flat terrain allows for easy installation of solar panels and lessens the need for expensive mounting structures. Additionally, these areas receive plenty of sunlight throughout the year which makes them ideal for harvesting energy from the sun's rays.
Sweden solar PV Stats as a country
Sweden ranks 36th in the world for cumulative solar PV capacity, with 1,577 total MW's of solar PV installed. This means that 0.70% of Sweden's total energy as a country comes from solar PV (that's 39th in the world). Each year Sweden is generating 152 Watts from solar PV per capita (Sweden ranks 34th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Sweden?
Yes, there are several incentives for businesses wanting to install solar energy in Sweden. The Swedish Energy Agency offers a number of grants and subsidies for businesses that want to invest in renewable energy sources such as solar power. Additionally, the government has implemented a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar. This helps to make investing in solar more attractive and financially viable for businesses.
Do you have more up to date information than this on incentives towards solar PV projects in Sweden? Please reach out to us and help us keep this information current. Thanks!
