Kalmar, Sweden, situated at latitude 56.6591 and longitude 16.3569, presents a mixed picture for solar energy generation throughout the year. Located in the Northern Temperate Zone, this coastal city experiences significant seasonal variations in solar output.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Kalmar, with an impressive daily output of 6.27 kWh per kW of installed solar capacity. Spring follows as the second-best season, generating 4.61 kWh/day. However, the colder months see a dramatic decline in solar productivity. Autumn yields a modest 1.89 kWh/day, while winter performance drops to a mere 0.77 kWh/day per kW installed.

This stark contrast between seasons means that solar energy systems in Kalmar will be most effective from late spring through early autumn. During these months, longer daylight hours and higher sun angles contribute to increased energy production.

Optimizing Solar Panel Installation

To maximize year-round solar energy production in Kalmar, fixed solar panels should be tilted at an angle of 47 degrees facing south. This optimal angle takes into account the city's latitude and seasonal sun paths, helping to capture the most sunlight throughout the year.

Environmental and Weather Considerations

Kalmar's coastal location brings some challenges for solar energy production. High humidity levels and potential salt spray from the Baltic Sea can affect solar panel efficiency and longevity. To mitigate these issues, installers should consider using corrosion-resistant materials and applying protective coatings to the panels.

Another factor to consider is snow accumulation during winter months. While snowfall in Kalmar is generally moderate, even light snow cover can significantly reduce solar panel output. Installing panels at the recommended 47-degree tilt can help shed snow more easily, and some systems may benefit from snow removal mechanisms.

Cloud cover, particularly prevalent during autumn and winter, is perhaps the most significant impediment to consistent solar production in Kalmar. While this is largely unavoidable, using high-efficiency panels and incorporating energy storage solutions can help balance out the seasonal variations in solar output.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 174 locations across Sweden. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Sweden by location

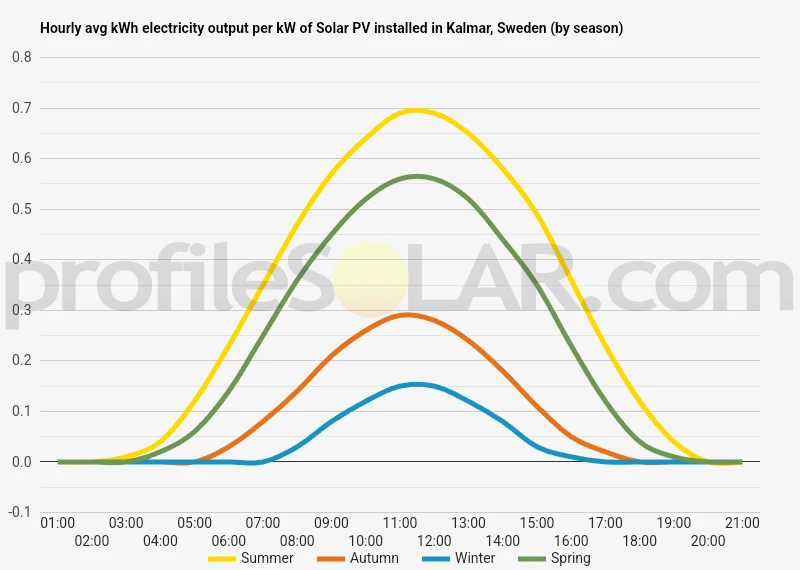

Solar output per kW of installed solar PV by season in Kalmar

Seasonal solar PV output for Latitude: 56.6591, Longitude: 16.3569 (Kalmar, Sweden), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 47° South in Kalmar, Sweden

To maximize your solar PV system's energy output in Kalmar, Sweden (Lat/Long 56.6591, 16.3569) throughout the year, you should tilt your panels at an angle of 47° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kalmar, Sweden

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kalmar, Sweden. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 47° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
40° South in Summer	58° South in Autumn	69° South in Winter	48° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kalmar, Sweden

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kalmar, Sweden.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kalmar, Sweden

The topography around Kalmar, Sweden, is characterized by its coastal location on the southeastern edge of the country. Situated along the Baltic Sea, Kalmar and its surrounding areas feature a relatively flat landscape with gentle undulations. The region is part of the Småland province, known for its mix of forests, farmlands, and coastal plains. The immediate vicinity of Kalmar is predominantly low-lying, with elevations generally not exceeding 50 meters above sea level. The coastline is irregular, dotted with small bays, inlets, and scattered islands. As you move inland from the coast, the terrain gradually rises, but remains mostly gentle and rolling. The landscape is interspersed with patches of deciduous and coniferous forests, agricultural fields, and occasional rocky outcrops.

Potential Areas for Large-Scale Solar PV

When considering areas nearby Kalmar for large-scale solar photovoltaic (PV) installations, several factors come into play. The most suitable locations would be those that offer a combination of favorable topography, ample sunlight exposure, and minimal environmental impact. One promising area for solar PV development would be the agricultural lands to the west and northwest of Kalmar. These areas typically feature open fields with few obstructions, providing excellent exposure to sunlight throughout the day. The gently rolling terrain in this region could also be advantageous, as slight slopes facing south or southwest can optimize solar panel efficiency. Another potential location for large-scale solar installations could be found in the cleared areas within the forested regions surrounding Kalmar. While care must be taken to minimize deforestation, existing clearings or areas already designated for development could be repurposed for solar farms. These locations often offer the benefit of being slightly elevated, potentially increasing sun exposure and reducing the risk of shadowing from nearby obstacles. Coastal areas, while abundant around Kalmar, may be less suitable for large-scale solar PV due to environmental considerations and potential conflicts with tourism and recreational activities. However, some of the larger islands in the Kalmar Strait might offer suitable locations, particularly if they have areas of open, non-forested land. It's important to note that while the topography around Kalmar is generally favorable for solar PV installations, other factors such as grid connectivity, local regulations, and environmental impact assessments would need to be carefully considered when selecting specific sites for large-scale solar projects.

Sweden solar PV Stats as a country

Sweden ranks 36th in the world for cumulative solar PV capacity, with 1,577 total MW's of solar PV installed. This means that 0.70% of Sweden's total energy as a country comes from solar PV (that's 39th in the world). Each year Sweden is generating 152 Watts from solar PV per capita (Sweden ranks 34th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Sweden?

Yes, there are several incentives for businesses wanting to install solar energy in Sweden. The Swedish Energy Agency offers a number of grants and subsidies for businesses that want to invest in renewable energy sources such as solar power. Additionally, the government has implemented a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar. This helps to make investing in solar more attractive and financially viable for businesses.
