Karlskrona, Blekinge County, Sweden presents a challenging location for year-round solar energy generation, with significant seasonal variations that make it far from ideal for consistent solar PV output throughout the year.

Seasonal Solar Performance

The solar energy production at this Northern Temperate Zone location varies dramatically across the seasons. Summer provides the best performance with 5.58kWh per day per kW of installed capacity, making it an excellent time for solar generation. Spring also offers strong production at 4.17kWh per day per kW, providing a solid shoulder season for energy harvesting. However, the location's northern latitude creates substantial challenges during the darker months. Autumn production drops significantly to just 1.72kWh per day per kW, while winter performance becomes extremely limited at only 0.76kWh per day per kW of installed capacity. For optimal year-round performance, solar panels at this location should be installed at a fixed tilt angle of 47 degrees facing south. This angle maximizes total annual energy production by accounting for the sun's varying elevation throughout the year and the seasonal differences in solar irradiance.

Environmental and Weather Challenges

Several local factors can significantly impact solar production in Karlskrona and require careful consideration during installation:

• Snow accumulation: Heavy winter snowfall can completely block solar panels, eliminating energy production for extended periods
• Ice formation: Freezing conditions can create ice buildup on panel surfaces, reducing light transmission
• Coastal weather patterns: Being located near the Baltic Sea, Karlskrona experiences frequent cloud cover and maritime weather systems that can reduce solar irradiance
• Salt air exposure: The coastal environment introduces salt-laden air that can corrode panel frames and mounting systems over time

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be implemented. Installing panels at the optimal 47-degree tilt angle not only improves overall performance but also helps snow slide off more easily, reducing accumulation problems. Using marine-grade mounting hardware and corrosion-resistant materials becomes essential in this coastal environment. Stainless steel or aluminum components with appropriate protective coatings will withstand salt air exposure much better than standard materials. Regular maintenance scheduling is crucial, particularly for snow removal during winter months when production is already limited. Installing panels with adequate spacing allows for better air circulation and easier access for cleaning and maintenance. Consider incorporating heating elements or anti-icing systems for critical installations, though the cost-benefit analysis should account for the already low winter production levels. Additionally, positioning panels to minimize shading from nearby structures or vegetation becomes even more important given the seasonal production limitations.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 174 locations across Sweden. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Sweden by location

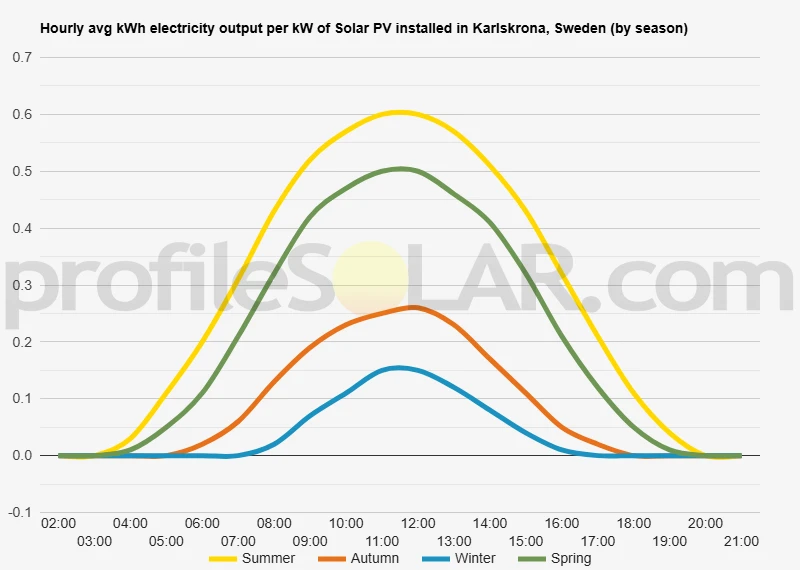

Solar output per kW of installed solar PV by season in Karlskrona

Seasonal solar PV output for Latitude: 56.1625, Longitude: 15.5801 (Karlskrona, Sweden), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 47° South in Karlskrona, Sweden

To maximize your solar PV system's energy output in Karlskrona, Sweden (Lat/Long 56.1625, 15.5801) throughout the year, you should tilt your panels at an angle of 47° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Karlskrona, Sweden

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Karlskrona, Sweden. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 47° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
39° South in Summer	58° South in Autumn	69° South in Winter	48° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Karlskrona, Sweden

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Karlskrona, Sweden.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Karlskrona, Sweden

Topography of the Karlskrona Region

Karlskrona sits on Sweden's southeastern coast in the province of Blekinge, positioned on both the mainland and across a collection of islands in the Baltic Sea archipelago. The city itself is built upon a series of rocky islands and peninsulas connected by bridges, creating a distinctive maritime landscape that has shaped its development since its founding as a naval base in the 17th century. The terrain around Karlskrona is characterized by the classic features of the South Swedish Highlands, which extend into this coastal region. The landscape consists of gently rolling hills interspersed with numerous lakes, wetlands, and rocky outcrops typical of the Scandinavian Shield's ancient granite bedrock. Elevations in the immediate vicinity are generally modest, with most areas ranging between sea level and 150 meters above sea level. The archipelago extends far into the Baltic Sea, featuring thousands of small islands, skerries, and rocky islets. Many of these islands are low-lying with smooth granite surfaces that have been shaped by glacial activity over millennia. The mainland areas feature a mix of forested hills, agricultural valleys, and coastal plains that provide varied topographical conditions.

Inland Characteristics

Moving inland from the coast, the landscape gradually transitions to more pronounced rolling hills covered primarily by mixed coniferous and deciduous forests. The region features numerous small valleys and depressions, many of which contain lakes or seasonal wetlands. The soil composition varies from thin layers over bedrock in elevated areas to deeper, more fertile soils in the valleys and lowland areas. Agricultural land is scattered throughout the region, with farms typically located in the flatter valley areas and gentler slopes. These cleared agricultural areas often provide open spaces with good southern exposure, making them potentially suitable for solar installations.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Karlskrona would be the cleared agricultural areas and open meadows located on south-facing slopes in the inland regions. These areas offer the advantage of being relatively flat or gently sloping, with minimal shading from surrounding vegetation or topographical features. The coastal plains extending inland from Karlskrona present excellent opportunities for solar development. These areas are generally flat to gently undulating, with good access to existing infrastructure and transmission lines. The open agricultural fields in these coastal zones often have clear southern exposure and are less constrained by forest cover than the more inland regions. Some of the larger islands in the archipelago could also accommodate solar installations, particularly those with flatter terrain and existing infrastructure connections. However, the mainland locations would generally be more practical for large-scale development due to easier access for construction and maintenance. Areas to avoid would include the heavily forested hills where tree removal would be environmentally problematic and economically challenging, as well as the numerous wetland areas that are both ecologically sensitive and unsuitable for construction. The rocky outcrops common throughout the region, while potentially offering good exposure, may present foundation challenges that could increase installation costs. The relatively gentle topography of much of the region means that large-scale solar farms could be developed without extensive grading or terrain modification, which helps maintain project economics while minimizing environmental impact.

Sweden solar PV Stats as a country

Sweden ranks 36th in the world for cumulative solar PV capacity, with 1,577 total MW's of solar PV installed. This means that 0.70% of Sweden's total energy as a country comes from solar PV (that's 39th in the world). Each year Sweden is generating 152 Watts from solar PV per capita (Sweden ranks 34th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Sweden?

Yes, there are several incentives for businesses wanting to install solar energy in Sweden. The Swedish Energy Agency offers a number of grants and subsidies for businesses that want to invest in renewable energy sources such as solar power. Additionally, the government has implemented a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar. This helps to make investing in solar more attractive and financially viable for businesses.

Do you have more up to date information than this on incentives towards solar PV projects in Sweden? Please reach out to us and help us keep this information current. Thanks!
