Solar Energy Potential in Ludvika, Dalarna County, Sweden

Ludvika, Dalarna County, Sweden, located at the northern latitude of 60.15 degrees, offers variable potential for solar energy generation throughout the year. This location experiences significant seasonal differences in solar energy production that are important to understand when considering photovoltaic (PV) installations. The seasonal electricity output from solar panels in Ludvika shows a dramatic variation. During summer, panels can produce an impressive 5.35 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 3.81 kWh/day. However, production drops considerably in autumn to just 1.38 kWh/day, and reaches a minimal 0.51 kWh/day during the winter months.

Optimal Panel Installation

For fixed solar panel installations in Ludvika, Dalarna County, the ideal tilt angle is 50 degrees facing South. This specific angle maximizes the total year-round energy production by optimizing the capture of available sunlight across all seasons. This calculated angle takes into account the location's northern latitude and the seasonal variations in the sun's path across the sky.

Seasonal Considerations

The data clearly indicates that solar energy generation in Ludvika is highly seasonal. The summer months provide excellent generation potential, with spring offering good production as well. Together, these two seasons would account for the vast majority of annual solar energy production at this location.

Environmental and Weather Challenges

Several significant factors can impact solar production in Ludvika:

• Snow accumulation during the long winter months can completely cover panels, essentially eliminating production if not addressed
• Extended periods of low light during winter significantly reduce generation potential
• Frost and ice formation can reduce panel efficiency and potentially damage equipment
• The region's northern latitude means lower sun angles, particularly in non-summer months

Preventative Measures

To maximize solar production in Ludvika despite these challenges, several strategies can be implemented:

• Install panels at the steeper 50-degree angle, which not only optimizes year-round production but also helps shed snow more effectively
• Consider snow removal systems or regular manual clearing during winter months
• Use high-efficiency panels specifically designed for low-light conditions
• Implement tracking systems for larger installations to follow the sun's path
• Ensure robust mounting systems that can withstand snow loads and potential freeze-thaw cycles

While Ludvika's location presents challenges for year-round solar production, proper system design with these considerations in mind can still make solar energy a viable part of the local energy mix, particularly as a complement to other renewable sources that might perform better during the low-solar winter months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 174 locations across Sweden. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Sweden by location

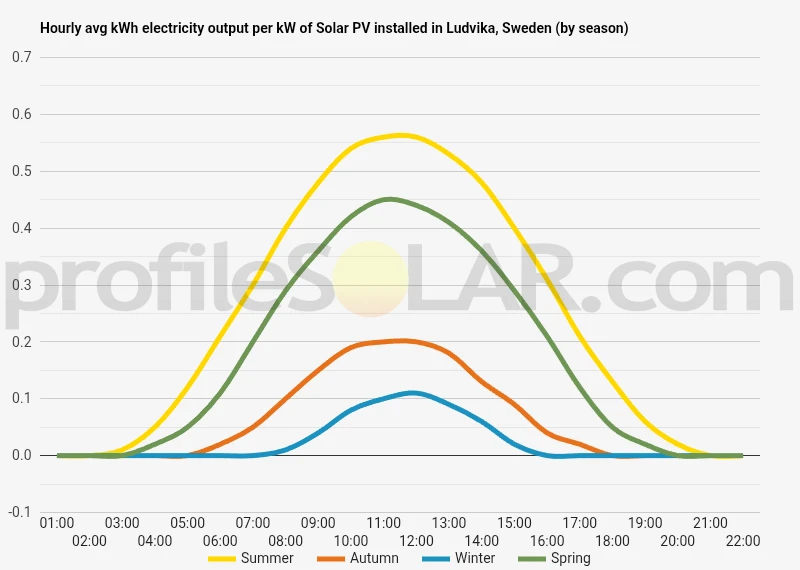

Solar output per kW of installed solar PV by season in Ludvika

Seasonal solar PV output for Latitude: 60.1509, Longitude: 15.18 (Ludvika, Sweden), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 50° South in Ludvika, Sweden

To maximize your solar PV system's energy output in Ludvika, Sweden (Lat/Long 60.1509, 15.18) throughout the year, you should tilt your panels at an angle of 50° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ludvika, Sweden

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ludvika, Sweden. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 50° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
43° South in Summer	61° South in Autumn	72° South in Winter	52° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ludvika, Sweden

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ludvika, Sweden.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ludvika, Sweden

The topography around Ludvika, Sweden presents a diverse landscape characteristic of central Sweden's Dalarna region. The area features a mixture of gently rolling terrain, modest hills, numerous lakes, and forested areas typical of the southern Swedish interior. Ludvika sits within a shallow valley system at approximately 160-170 meters above sea level, with surrounding terrain gradually rising to form low hills and ridges. The landscape surrounding Ludvika is part of the southern fringe of the Fennoscandian Shield, characterized by ancient bedrock that has been smoothed and sculpted by multiple glaciation periods. This geological history has created a terrain with rounded hills rather than sharp peaks, interspersed with numerous water bodies including Lake Väsman directly adjacent to Ludvika's urban center.

Forest Cover and Waterways

Coniferous forests dominate the region, with pine and spruce being the predominant species. These forests cover much of the undeveloped land around Ludvika, creating a mosaic pattern with occasional clearings and settlements. The area features a network of lakes and waterways that form part of the Kolbäcksån river system, with water bodies accounting for a significant portion of the surface area.

Potential Solar PV Sites

For large-scale solar photovoltaic installations, several topographical features around Ludvika merit consideration. The most suitable areas would likely be: South-facing slopes of the modest hills north and northwest of Ludvika offer favorable orientation toward the sun's path. These areas, particularly where forest clearing has already occurred or on land with less productive forest growth, could provide ideal conditions for solar arrays with minimal shadowing effects. Former industrial or mining sites around Ludvika present opportunities for solar development. The region has a history of mining and industrial activity, leaving some disturbed lands that could be repurposed for renewable energy production without impacting pristine natural areas. Agricultural clearings to the south and southwest of Ludvika, where the land tends to be flatter and more open, could accommodate large solar installations. These areas typically have reduced forest cover and existing access infrastructure. The relatively flat plateaus between water bodies offer potential for development, particularly in areas that aren't prone to flooding or excessive moisture. These locations typically have good solar exposure with minimal topographical shading.

Topographical Challenges

Despite these opportunities, the region's topography does present certain challenges for solar development. The numerous lakes create fragmented land areas that may limit the contiguous space available for very large installations. The prevalent forest cover means that significant clearing might be necessary for some sites, raising environmental considerations. Additionally, the modest hills, while not mountainous, can create localized shadowing effects depending on their orientation. Winter snow accumulation on more elevated or north-facing areas would require consideration in the design and maintenance of any solar installation. The clay-rich soils common in parts of the region may require specialized foundation approaches for solar mounting systems, particularly in areas with seasonal freeze-thaw cycles that could affect ground stability.

Sweden solar PV Stats as a country

Sweden ranks 36th in the world for cumulative solar PV capacity, with 1,577 total MW's of solar PV installed. This means that 0.70% of Sweden's total energy as a country comes from solar PV (that's 39th in the world). Each year Sweden is generating 152 Watts from solar PV per capita (Sweden ranks 34th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Sweden?

Yes, there are several incentives for businesses wanting to install solar energy in Sweden. The Swedish Energy Agency offers a number of grants and subsidies for businesses that want to invest in renewable energy sources such as solar power. Additionally, the government has implemented a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar. This helps to make investing in solar more attractive and financially viable for businesses.

Do you have more up to date information than this on incentives towards solar PV projects in Sweden? Please reach out to us and help us keep this information current. Thanks!
