Baar, Zug, Switzerland, situated at 47.1969° N, 8.5333° E, presents a moderately favorable location for solar PV energy generation throughout the year. This Northern Temperate Zone location experiences significant seasonal variations in solar energy production, with peak performance during the summer months.

Seasonal Solar Output

Solar energy production in Baar fluctuates considerably across the seasons. Summer stands out as the most productive period, with an average daily output of 5.66 kWh per kW of installed solar capacity. Spring follows as the second-most productive season, generating 4.79 kWh/day. Autumn sees a notable decrease to 2.92 kWh/day, while winter experiences the lowest output at 1.46 kWh/day.

The substantial difference between summer and winter production highlights the impact of shorter days and lower sun angles during the colder months. However, the relatively strong performance in spring and summer makes solar PV a viable option for this location.

Optimal Panel Installation

To maximize year-round solar energy production in Baar, Zug, fixed solar panels should be installed at a tilt angle of 40 degrees facing south. This orientation helps optimize the panels' exposure to sunlight throughout the year, balancing the varying sun angles across seasons.

Environmental and Weather Considerations

While Baar's location is generally suitable for solar energy production, there are some environmental and weather factors that could potentially impact system performance:

1. Snow accumulation in winter, which may temporarily reduce panel efficiency
2. Occasional fog or low cloud cover, particularly in autumn and winter

To mitigate these issues, consider installing panels at a steeper angle to encourage snow sliding off and using high-quality, anti-reflective glass to maximize light absorption in low-light conditions. Regular maintenance, including snow removal when necessary, can help ensure optimal performance year-round.

In conclusion, while Baar experiences significant seasonal variations in solar energy production, the location remains suitable for solar PV installations. With proper panel orientation and preventative measures against environmental factors, solar energy can be a valuable renewable resource for this Swiss community.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 245 locations across Switzerland. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Switzerland by location

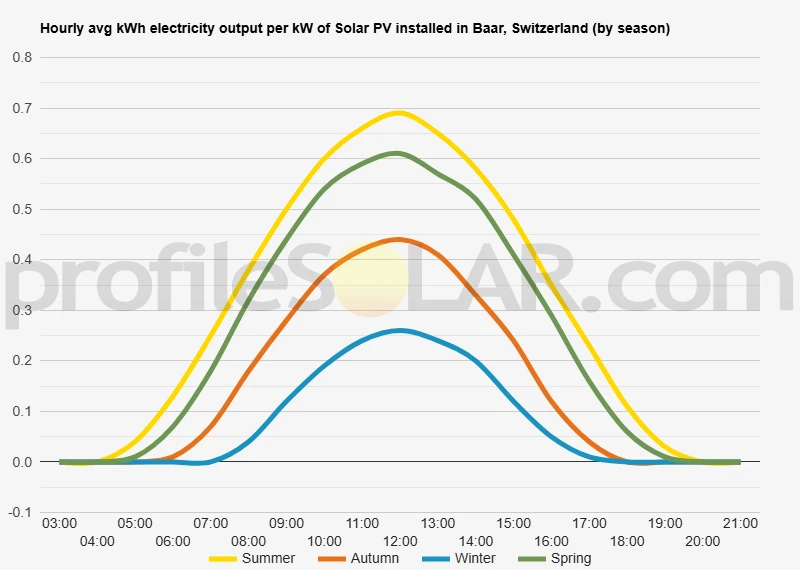

Solar output per kW of installed solar PV by season in Baar

Seasonal solar PV output for Latitude: 47.1969, Longitude: 8.5333 (Baar, Switzerland), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 40° South in Baar, Switzerland

To maximize your solar PV system's energy output in Baar, Switzerland (Lat/Long 47.1969, 8.5333) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Baar, Switzerland

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Baar, Switzerland. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
30° South in Summer	50° South in Autumn	61° South in Winter	39° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Baar, Switzerland

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Baar, Switzerland.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Baar, Switzerland

The area surrounding Baar, Switzerland, is characterized by a diverse and picturesque landscape typical of the Swiss Plateau region. Situated in the canton of Zug, Baar is nestled in a valley between rolling hills and mountains, offering a mix of flat areas and gentle slopes. To the east of Baar, the terrain gradually rises towards the Zugerberg, a popular recreational area with forested hills and panoramic views. The western side of Baar is dominated by the Lorze River valley, which provides a relatively flat expanse before the land begins to ascend towards the Albis chain of hills.

Topographical Features

The immediate vicinity of Baar consists of a combination of urban development, agricultural land, and wooded areas. The town itself lies on a gentle slope, with elevations ranging from approximately 430 to 500 meters above sea level. This gradual incline contributes to the varied scenery and allows for expansive views of the surrounding landscape. To the south, the terrain becomes more pronounced as it approaches the foothills of the Alps. The nearby Lake Zug, located just a few kilometers to the south of Baar, adds to the region's geographical diversity and influences the local climate.

Potential for Solar PV Installation

When considering areas suitable for large-scale solar photovoltaic (PV) installations near Baar, several factors must be taken into account. The ideal locations would combine favorable topography with minimal environmental impact and proximity to existing infrastructure. The flatter areas in the Lorze River valley to the west of Baar present potential opportunities for solar PV development. These locations offer relatively level ground, which can simplify installation and reduce costs associated with land preparation. Additionally, the open spaces in this area may receive less shading from surrounding hills, maximizing sun exposure throughout the day. Another promising area for solar PV installations could be the gentler slopes on the lower reaches of the Zugerberg to the east. While steeper terrain generally poses challenges for large-scale solar projects, moderate inclines can actually be advantageous, as they can be oriented to optimize solar panel angle and sun exposure. It's important to note that any large-scale solar PV project would need to carefully balance energy production goals with preservation of the region's natural beauty and agricultural resources. Areas that are already developed or have been previously used for industrial purposes might be prioritized to minimize environmental impact. Ultimately, detailed site assessments, environmental impact studies, and consultation with local authorities would be necessary to determine the most suitable locations for solar PV installations in the vicinity of Baar, ensuring that renewable energy development aligns with the community's needs and values.

Switzerland solar PV Stats as a country

Switzerland ranks 25th in the world for cumulative solar PV capacity, with 3,449 total MW's of solar PV installed. This means that 4.70% of Switzerland's total energy as a country comes from solar PV (that's 16th in the world). Each year Switzerland is generating 399 Watts from solar PV per capita (Switzerland ranks 6th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Switzerland?

Yes, there are several incentives for businesses wanting to install solar energy in Switzerland. The Swiss Federal Office of Energy (SFOE) offers a range of financial support measures for businesses that want to invest in renewable energy sources such as solar power. These include grants, loans and tax deductions. Additionally, the Swiss government has set up a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to make investing in solar energy more attractive for businesses.

Do you have more up to date information than this on incentives towards solar PV projects in Switzerland? Please reach out to us and help us keep this information current. Thanks!
