Chiasso, Ticino, Switzerland, situated at latitude 45.8304 and longitude 9.0211, presents a mixed picture for solar energy generation throughout the year. This location in the Northern Temperate Zone experiences significant seasonal variations in solar output, which impacts the overall effectiveness of solar PV installations.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Chiasso, Ticino, with an impressive daily output of 6.72 kWh per kW of installed solar capacity. Spring follows as the second-best season, generating 5.34 kWh per day. However, the performance drops considerably during autumn and winter, with daily outputs of 3.06 kWh and 1.80 kWh respectively.

These figures indicate that solar energy production in Chiasso is highly seasonal. The long, sunny days of summer and spring provide excellent conditions for solar power generation. Conversely, the shorter days and lower sun angles during autumn and winter significantly reduce solar panel efficiency.

Optimal Panel Installation

To maximize year-round solar energy production in Chiasso, Ticino, fixed solar panels should be installed at a tilt angle of 39 degrees facing south. This angle is calculated to optimize the panels' exposure to sunlight throughout the year, taking into account the location's latitude and the Earth's elliptical orbit.

Environmental Factors and Mitigation

While Chiasso's location is generally favorable for solar energy, there are some environmental factors that could impact solar production:

• Snow accumulation in winter can reduce panel efficiency. Regular panel cleaning or the installation of snow guards can help mitigate this issue.
• Fog, which is common in the nearby Po Valley, may occasionally reduce solar irradiance. While this can't be prevented, using high-efficiency panels can help maximize energy capture even in less-than-ideal conditions.

To ensure optimal energy production, it's crucial to keep panels clean, free from shade, and properly maintained. Additionally, considering a tracking system that adjusts panel angles throughout the day could significantly boost energy output, especially during the less productive seasons.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 245 locations across Switzerland. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Switzerland by location

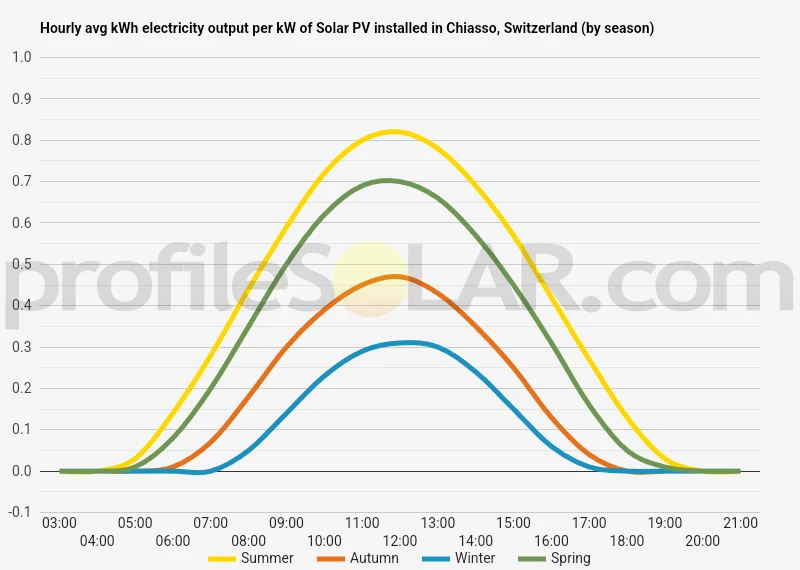

Solar output per kW of installed solar PV by season in Chiasso

Seasonal solar PV output for Latitude: 45.8304, Longitude: 9.0211 (Chiasso, Switzerland), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 39° South in Chiasso, Switzerland

To maximize your solar PV system's energy output in Chiasso, Switzerland (Lat/Long 45.8304, 9.0211) throughout the year, you should tilt your panels at an angle of 39° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chiasso, Switzerland

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chiasso, Switzerland. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 39° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
30° South in Summer	49° South in Autumn	60° South in Winter	38° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chiasso, Switzerland

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chiasso, Switzerland.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chiasso, Switzerland

Chiasso, a Swiss town located near the Italian border, sits in a diverse topographical region characterized by a mix of lowlands and mountainous terrain. The town itself is situated in a relatively flat area at the southern end of the Mendrisio district, nestled between the foothills of the Alps to the north and east, and the Po Valley to the south. The immediate surroundings of Chiasso feature gently rolling hills and small valleys, with elevations gradually increasing as one moves away from the town center. To the east, the landscape becomes more rugged, with the Monte Generoso massif dominating the skyline. This mountain, rising to over 1,700 meters above sea level, forms a natural border between Switzerland and Italy. To the west of Chiasso, the terrain is comparatively flatter, with the land sloping gently towards Lake Como, which lies about 10 kilometers away. This area is characterized by a patchwork of small agricultural fields, vineyards, and scattered woodlands.

Potential Areas for Large-Scale Solar PV

When considering locations for large-scale solar photovoltaic (PV) installations near Chiasso, several factors must be taken into account, including available space, sun exposure, and minimal shading. Given the topography of the region, the most suitable areas for such projects would likely be: The flatter areas to the west and southwest of Chiasso, extending towards the Italian border, offer the most promise for large-scale solar PV installations. These areas benefit from relatively level terrain and fewer obstructions that could cast shadows on solar panels. The gently sloping fields in this direction also provide good exposure to sunlight throughout the day. Some of the lower hillsides and plateaus to the north and northeast of Chiasso could also be considered for solar PV projects. While these areas may have some limitations due to their slightly more varied terrain, they still receive ample sunlight and could accommodate sizeable installations if properly designed. It's important to note that the mountainous regions to the east, including the slopes of Monte Generoso, are less suitable for large-scale solar PV due to their steep gradients and potential for shading. Similarly, the densely populated urban areas within Chiasso itself would likely not be appropriate for extensive solar farms, though they may be suitable for smaller, rooftop solar installations. Any large-scale solar PV project in this region would need to carefully balance energy production potential with environmental and land-use considerations, given the area's mix of agricultural, residential, and natural landscapes.

Switzerland solar PV Stats as a country

Switzerland ranks 25th in the world for cumulative solar PV capacity, with 3,449 total MW's of solar PV installed. This means that 4.70% of Switzerland's total energy as a country comes from solar PV (that's 16th in the world). Each year Switzerland is generating 399 Watts from solar PV per capita (Switzerland ranks 6th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Switzerland?

Yes, there are several incentives for businesses wanting to install solar energy in Switzerland. The Swiss Federal Office of Energy (SFOE) offers a range of financial support measures for businesses that want to invest in renewable energy sources such as solar power. These include grants, loans and tax deductions. Additionally, the Swiss government has set up a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to make investing in solar energy more attractive for businesses.

Do you have more up to date information than this on incentives towards solar PV projects in Switzerland? Please reach out to us and help us keep this information current. Thanks!
