Location estimate

Ebikon

Lucerne · Switzerland

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

5.71

kWh/day

Autumn

2.99

kWh/day

Winter

1.52

kWh/day

Spring

4.85

kWh/day

Shared scale: 0–6.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Ebikon, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 5.71 5.71 × 1 kWp = 5.71 kWh/day
Autumn 2.99 2.99 × 1 kWp = 2.99 kWh/day
Winter 1.52 1.52 × 1 kWp = 1.52 kWh/day
Spring 4.85 4.85 × 1 kWp = 4.85 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
5.71
Autumn · kWh/day
2.99
Winter · kWh/day
1.52
Spring · kWh/day
4.85

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 40 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
40°
Facing direction
South

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Jun, Jul, Aug
30°South
Autumn
Sep, Oct, Nov
50°South
Winter
Dec, Jan, Feb
61°South
Spring
Mar, Apr, May
39°South

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Ebikon, Lucerne, Switzerland.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 30 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

30° tilt · South

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 50 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

50° tilt · South

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 61 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

61° tilt · South

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 39 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

39° tilt · South

Illustrative direction; exact azimuth not recorded.

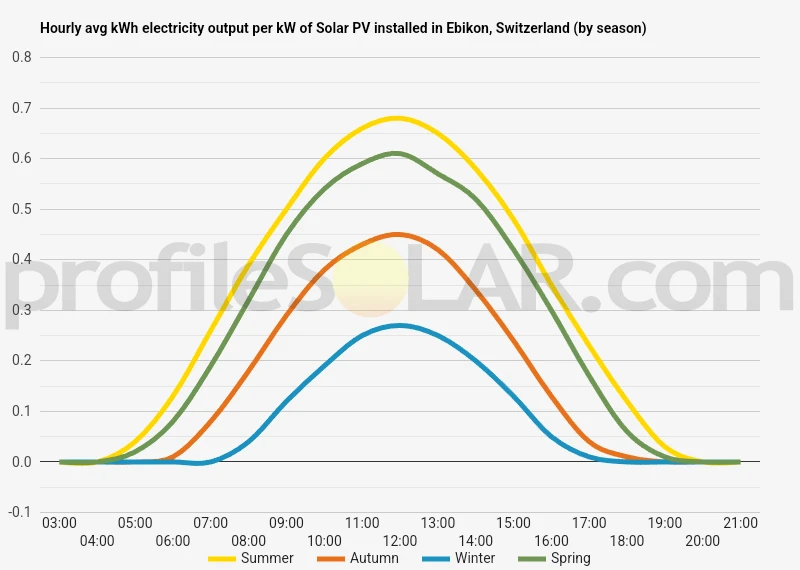

Historical hourly-by-season solar output chart for Ebikon, Switzerland. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Ebikon, Switzerland

Hourly profiles by season — Ebikon, Switzerland · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Ebikon, Switzerland · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Ebikon

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 5.17 m

Proportional side viewDesign sun: ≈ 19.47° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 3.64 m
Added margin
≈ 0 m
Gap including margin
≈ 3.64 m
Panel horizontal footprint
≈ 1.53 m
Panel vertical rise
≈ 1.29 m
Pitch before margin
≈ 5.17 m

Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
40°
Added margin
0 m
Latitude from the catalogue
47.080500000000000000° (Northern Hemisphere)
Panel horizontal footprint
1.532088886237956 m
Panel vertical rise
1.2855752193730785 m
Calculated clear gap
3.636459453443357 m
Pitch before margin
5.168548339681313 m
Gap including margin
3.636459453443357 m
Row pitch including margin
5.168548339681313 m
Design solar elevation
19.469717153186348°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Ebikon

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

<h3>Solar Energy Potential in Ebikon, Switzerland</h3>

Read the full article

Ebikon, Switzerland, located at 47.0805° N, 8.335° E in the Northern Temperate Zone, presents a moderate potential for solar energy generation throughout the year. The location has significant seasonal variation in estimated electrical output. This is a difference in generation, rather than a direct measure of module efficiency. <h3>Seasonal Solar Output</h3> Summer stands out as the most productive season, with an average daily output of 5.71 kWh per kW of installed solar capacity. Spring follows closely, generating 4.85 kWh/day. Autumn sees a considerable decrease in production, with 2.99 kWh/day. Winter, as expected, has the lowest output at 1.52 kWh/day. These figures indicate that Ebikon's solar potential is most favorable from late spring through early autumn. During these months, longer daylight hours and higher sun angles contribute to increased energy production. However, the substantial drop in winter output suggests that supplementary energy sources may be necessary during the colder months. <h3>Optimal Panel Installation</h3> For fixed panels in Ebikon, our recorded year-round reference is 40 degrees facing South. This simplified, output-weighted reference offers a starting point; the roof and the Rontal horizon influence the actual arrangement. <h3>Environmental and Weather Considerations</h3> Ebikon’s setting combines the Rontal, the Ron and nearby Rotsee with developed ground and higher paths. Hills, trees and neighbouring buildings can affect the view of lower-angle sunlight from a particular installation. Clouds and fog reduce the sunlight available to panels, while snow covering a module can interrupt generation. These conditions do not establish a benefit from special coatings, snow guards or a particular inverter. A steeper tilt can help shed snow, but it also changes wind loads and row spacing. Mounting and maintenance decisions should follow the selected site and installer guidance. Cleaning responds to actual deposits rather than a fixed schedule. The higher spring and summer estimates and lower winter output remain the central seasonal comparison. Storage or a hybrid supply has to be sized for the loads and duration it is intended to serve; the presence of additional equipment does not guarantee a consistent year-round supply.

Topography around Ebikon

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

<p>Ebikon is in the Rontal near Lucerne, with Rotsee and the Ron forming part of its local landscape. The setting combines developed valley ground with higher surrounding terrain, woodland and rural land. Rotsee is directly associated with Ebikon’s local landscape.</p>

Read the full topography description

<h3>Valley, Water and Higher Ground</h3> <p>The Rontaler Rundweg links higher paths with a route along the Ron and passes Rotsee in Ebikon. The municipal leaflet also identifies a local biotope and farms along the route. These features show the variety within a short distance: waterside areas, cultivated surroundings and the settlement are different landscape units, rather than one continuous open development surface.</p> <h3>Solar Layout in the Rontal</h3> <p>For a solar installation, the horizon seen from the actual roof or field matters. Hills and woodland can screen lower-angle sunlight, while nearby buildings add obstructions within the developed valley. A site on higher ground may have a different horizon without necessarily offering better annual output or simpler construction.</p> <p>The recorded south-facing reference gives a starting orientation for comparison. The real slope and surrounding skyline determine how rows or roof-mounted panels fit within that setting. Individual roofs can differ even when they are close together and share the same regional seasonal estimates.</p> <p>Ground-mounted projects also have to fit existing farming, natural areas and settlement uses, together with access and electrical connection. Neither a western direction nor a gentler slope establishes available land. Existing developed surfaces present a different project scale from open countryside, with their own structural and layout considerations.</p>

Technical location reference

Approximate map point used for Ebikon, Switzerland

This coordinate is the calculation reference for Ebikon, Switzerland. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
47.080500000000000000, 8.335000000000000000
Originally displayed coordinate
lat47.0805 / long8.335

How the estimate works

How this Ebikon estimate was calculated

Here is how I calculated the location estimate for Ebikon, Switzerland.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Ebikon Location estimate includes and leaves out

Use the Ebikon figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
