Solar Energy Potential in Glattbrugg, Zurich, Switzerland

Glattbrugg, Zurich, Switzerland, located at 47.4348°N, 8.5629°E, offers a moderate potential for solar energy generation throughout the year. This location in the Northern Temperate Zone experiences significant seasonal variations in solar output, which impacts the overall efficiency of solar PV systems.

Seasonal Solar Production

Solar energy production in Glattbrugg peaks during the summer months, with an average daily output of 5.71 kWh per kW of installed solar capacity. Spring follows as the second most productive season, generating 4.85 kWh/day. Autumn sees a considerable drop in production to 2.99 kWh/day, while winter experiences the lowest output at 1.52 kWh/day. These figures highlight the substantial difference between summer and winter production, with summer generating nearly four times more energy than winter. This variation is primarily due to the changing solar angle and daylight hours throughout the year.

Optimal Panel Tilt Angle

For fixed panel installations in Glattbrugg, Zurich, the ideal tilt angle to maximize year-round solar production is 41 degrees facing south. This angle is calculated based on the location's latitude and accounts for the Earth's elliptical orbit and seasonal variations in solar elevation.

Environmental and Weather Factors

Several environmental and weather factors can impact solar production in Glattbrugg:

1. Snow accumulation: Winter snowfall can cover panels, reducing efficiency. Regular panel cleaning or installing panels at a steeper angle can help mitigate this issue.
2. Cloud cover: The region experiences frequent cloudy days, especially in winter, which can reduce solar output. Using high-efficiency panels can help maximize production even in low-light conditions.
3. Fog: Morning fog is common in the area, potentially delaying the start of daily solar production. This factor emphasizes the importance of maximizing mid-day and afternoon sun exposure.

Maximizing Solar Potential

To optimize solar energy production in Glattbrugg, Zurich, consider the following measures: 1. Use bifacial solar panels to capture reflected light, increasing overall efficiency. 2. Implement a solar tracking system to follow the sun's path, maximizing exposure throughout the day. 3. Regular maintenance, including cleaning panels and removing snow, to ensure optimal performance. 4. Consider combining solar PV with other renewable energy sources to provide a more consistent year-round energy supply. While Glattbrugg's location presents challenges for year-round solar production, particularly in winter, implementing these strategies can help maximize the potential of solar PV systems in the area.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 245 locations across Switzerland. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Switzerland by location

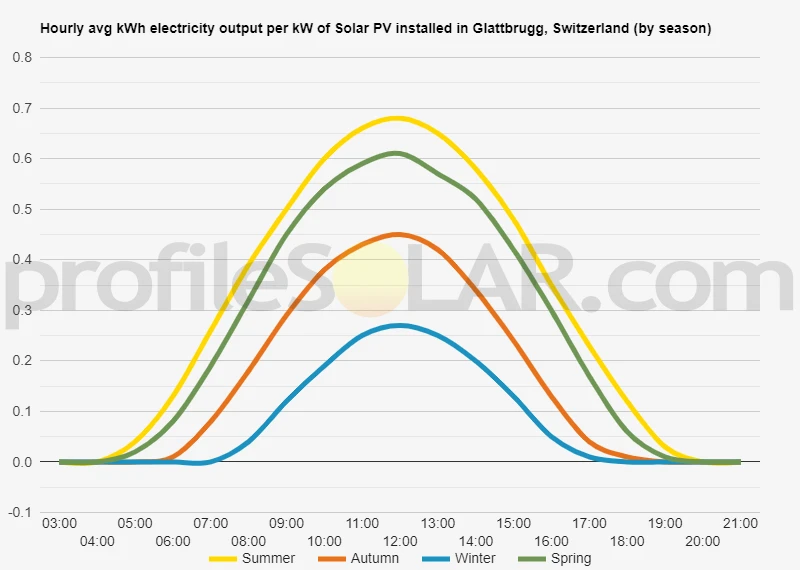

Solar output per kW of installed solar PV by season in Glattbrugg

Seasonal solar PV output for Latitude: 47.4348, Longitude: 8.5629 (Glattbrugg, Switzerland), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Glattbrugg, Switzerland

To maximize your solar PV system's energy output in Glattbrugg, Switzerland (Lat/Long 47.4348, 8.5629) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Glattbrugg, Switzerland

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Glattbrugg, Switzerland. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
31° South in Summer	50° South in Autumn	61° South in Winter	40° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Glattbrugg, Switzerland

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Glattbrugg, Switzerland.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Glattbrugg, Switzerland

Glattbrugg, a town in Switzerland, is situated in a relatively flat area within the Glatt Valley. The surrounding topography is characterized by gentle slopes and low-lying plains, with the Glatt River flowing nearby. This region is part of the Swiss Plateau, which extends between the Jura Mountains to the northwest and the Alps to the southeast. The immediate vicinity of Glattbrugg features a mix of urban and suburban landscapes, with some scattered green spaces and agricultural fields. To the east and northeast, the terrain gradually rises towards the Zürichberg and Adlisberg hills, which form part of the Pfannenstiel ridge. These hills, while not particularly steep, provide some modest elevation changes in the area. To the west and southwest, the land remains predominantly flat as it stretches towards the Limmat Valley. This area is more densely populated and urbanized, with the city of Zürich located just a few kilometers to the southwest of Glattbrugg.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The relatively flat terrain in and around Glattbrugg offers some advantages for solar energy development. However, the high population density and limited open spaces in the immediate vicinity may pose challenges for large-scale projects. Some potentially suitable areas for solar PV installations could include: 1. Agricultural lands to the north and northeast of Glattbrugg, where there are more open spaces and fewer urban developments. These areas might offer the necessary land area for larger installations while minimizing conflicts with residential zones. 2. The gently sloping areas on the lower flanks of the Zürichberg and Adlisberg hills to the east. These locations could potentially benefit from slightly increased solar exposure due to their elevated position. 3. Former industrial sites or brownfield areas within the broader Glatt Valley region. These locations might be repurposed for solar energy production, making efficient use of land that is already developed but no longer in active use. 4. Rooftops of large commercial and industrial buildings in the surrounding area. While not technically "large-scale" in the traditional sense, a coordinated effort to utilize available rooftop space could result in significant solar power generation capacity. It's important to note that any large-scale solar PV development in this region would need to carefully consider factors such as local zoning regulations, environmental impact, and the preservation of agricultural land. Given the urban nature of the area, innovative approaches that integrate solar power generation with existing infrastructure and land uses may be more feasible than traditional utility-scale solar farms.

Switzerland solar PV Stats as a country

Switzerland ranks 25th in the world for cumulative solar PV capacity, with 3,449 total MW's of solar PV installed. This means that 4.70% of Switzerland's total energy as a country comes from solar PV (that's 16th in the world). Each year Switzerland is generating 399 Watts from solar PV per capita (Switzerland ranks 6th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Switzerland?

Yes, there are several incentives for businesses wanting to install solar energy in Switzerland. The Swiss Federal Office of Energy (SFOE) offers a range of financial support measures for businesses that want to invest in renewable energy sources such as solar power. These include grants, loans and tax deductions. Additionally, the Swiss government has set up a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to make investing in solar energy more attractive for businesses.

Do you have more up to date information than this on incentives towards solar PV projects in Switzerland? Please reach out to us and help us keep this information current. Thanks!
