Grabs, Saint Gallen, Switzerland, situated at coordinates 47.1841, 9.4479, presents a mixed landscape for solar energy generation throughout the year. This location in the Northern Temperate Zone experiences significant seasonal variations in solar potential, which impacts the efficiency of photovoltaic (PV) systems.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive 5.66 kWh per day for each kilowatt of installed solar capacity. Spring follows closely, generating 4.79 kWh/day. Autumn sees a considerable drop to 2.92 kWh/day, while winter performance plummets to a mere 1.46 kWh/day.

These figures highlight the stark contrast between the warm and cold months, with summer producing nearly four times the energy of winter. Spring and autumn serve as transitional periods, reflecting the gradual changes in daylight hours and sun intensity.

Optimal Panel Positioning

To maximize year-round energy production, fixed solar panels in Grabs should be tilted at a 40-degree angle facing south. This orientation helps capture the most sunlight throughout the year, balancing the low winter sun with the high summer sun.

Environmental Considerations

While Grabs offers good potential for solar energy, there are some environmental factors to consider:

• Snow accumulation in winter can significantly reduce panel efficiency
• Fog and cloud cover, common in alpine regions, may intermittently decrease solar radiation

To mitigate these issues, installers should consider using panels with anti-soiling coatings and ensuring easy access for snow removal. Additionally, incorporating a slightly steeper tilt than the optimal 40 degrees can help with natural snow shedding and may be worth the minor trade-off in overall annual production.

In conclusion, while Grabs experiences substantial seasonal variations in solar potential, proper system design and maintenance can still yield satisfactory results, especially during the productive summer and spring months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 245 locations across Switzerland. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Switzerland by location

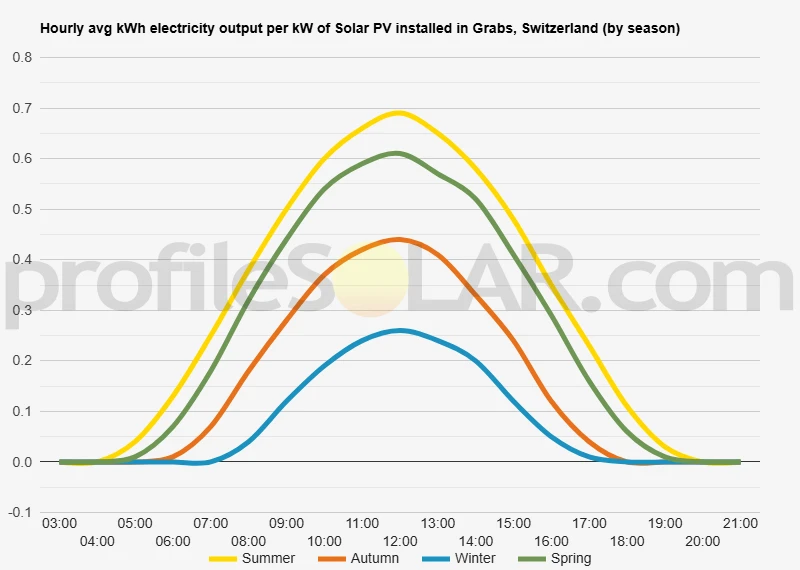

Solar output per kW of installed solar PV by season in Grabs

Seasonal solar PV output for Latitude: 47.1841, Longitude: 9.4479 (Grabs, Switzerland), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 40° South in Grabs, Switzerland

To maximize your solar PV system's energy output in Grabs, Switzerland (Lat/Long 47.1841, 9.4479) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Grabs, Switzerland

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Grabs, Switzerland. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
30° South in Summer	50° South in Autumn	61° South in Winter	39° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Grabs, Switzerland

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Grabs, Switzerland.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Grabs, Switzerland

The topography around Grabs, Switzerland, is characterized by a diverse and picturesque landscape typical of the Alpine region. Situated in the Rhine Valley, Grabs is surrounded by a mix of gentle slopes, rolling hills, and more dramatic mountain terrain. The town itself lies at an elevation of approximately 470 meters above sea level, nestled in a relatively flat area compared to its surroundings. To the west and southwest of Grabs, the land rises more steeply into the Appenzell Alps, with peaks reaching heights of over 2,000 meters. These mountains create a striking backdrop to the town and contribute to its scenic beauty. The eastern side of Grabs is bordered by the Rhine River, which flows northward through a broad valley. This valley floor is generally flat and open, providing a stark contrast to the mountainous terrain to the west. The immediate vicinity of Grabs features a combination of agricultural land, forests, and small settlements. The lower slopes of the nearby hills are often covered in lush greenery, with a mix of deciduous and coniferous trees. As one moves higher up the mountainsides, the vegetation becomes sparser, giving way to alpine meadows and rocky outcrops.

Potential Areas for Large-Scale Solar PV

When considering areas near Grabs that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would offer ample sunlight exposure, relatively flat terrain, and minimal environmental impact. The Rhine Valley, particularly the areas east and northeast of Grabs, presents the most promising potential for large-scale solar PV projects. This region benefits from its lower elevation and open landscape, which allows for maximum sun exposure throughout the day. The valley floor's flat terrain would simplify the installation process and reduce construction costs compared to more mountainous areas. Additionally, some of the gentler slopes on the outskirts of Grabs, especially those facing south or southeast, could be suitable for solar installations. These areas would receive good sunlight and might be less valuable for agriculture or other uses compared to the fertile valley floor. However, it's important to note that any large-scale solar project in this region would need to carefully balance energy production goals with environmental conservation and land use considerations. The scenic beauty and ecological importance of the Alpine landscape would necessitate thoughtful planning and community engagement to ensure that solar developments are implemented sustainably and in harmony with the local environment.

Switzerland solar PV Stats as a country

Switzerland ranks 25th in the world for cumulative solar PV capacity, with 3,449 total MW's of solar PV installed. This means that 4.70% of Switzerland's total energy as a country comes from solar PV (that's 16th in the world). Each year Switzerland is generating 399 Watts from solar PV per capita (Switzerland ranks 6th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Switzerland?

Yes, there are several incentives for businesses wanting to install solar energy in Switzerland. The Swiss Federal Office of Energy (SFOE) offers a range of financial support measures for businesses that want to invest in renewable energy sources such as solar power. These include grants, loans and tax deductions. Additionally, the Swiss government has set up a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to make investing in solar energy more attractive for businesses.

Do you have more up to date information than this on incentives towards solar PV projects in Switzerland? Please reach out to us and help us keep this information current. Thanks!
