Solar PV Analysis of Kilchberg, Switzerland
Kilchberg, Zurich, Switzerland, situated at 47.3254° N, 8.5513° E, presents a mixed picture for solar energy generation throughout the year. This location in the Northern Temperate Zone experiences significant seasonal variations in solar energy production, which impacts the overall efficiency of photovoltaic (PV) systems.
Seasonal Solar Energy Production
The solar energy output in Kilchberg varies considerably across seasons. Summer stands out as the most productive period, with an average daily output of 5.71 kWh per kW of installed solar capacity. Spring follows closely, generating 4.85 kWh/day. Autumn sees a notable decrease to 2.99 kWh/day, while winter experiences the lowest production at just 1.52 kWh/day.
These figures indicate that Kilchberg's solar potential is most favorable from late spring through early autumn. During these months, longer daylight hours and higher sun angles contribute to increased energy production. However, the substantial drop in winter output highlights the challenges faced during the colder months.
Optimal Panel Installation
For fixed panel installations in Kilchberg, Zurich, the ideal tilt angle to maximize year-round solar production is 40 degrees facing south. This angle is calculated to optimize energy capture across all seasons, balancing the lower winter sun with the higher summer sun.
Environmental and Weather Factors
Several factors can impact solar production in Kilchberg:
- Snow accumulation in winter can significantly reduce panel efficiency.
- Fog and low cloud cover, common in the region, may decrease solar irradiance.
- Shorter daylight hours in winter further limit energy production.
To mitigate these issues, consider the following measures:
- Install panels at a steeper angle to promote snow sliding off.
- Use high-efficiency panels to maximize production during limited sunlight.
- Implement a robust cleaning schedule to remove snow and debris.
- Consider a dual-axis tracking system for optimal sun exposure, if feasible.
While Kilchberg's location presents challenges for year-round solar energy production, proper system design and maintenance can help maximize efficiency. The significant seasonal variations underscore the importance of complementary energy sources or storage solutions to ensure consistent power supply throughout the year.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 245 locations across Switzerland. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Switzerland by location

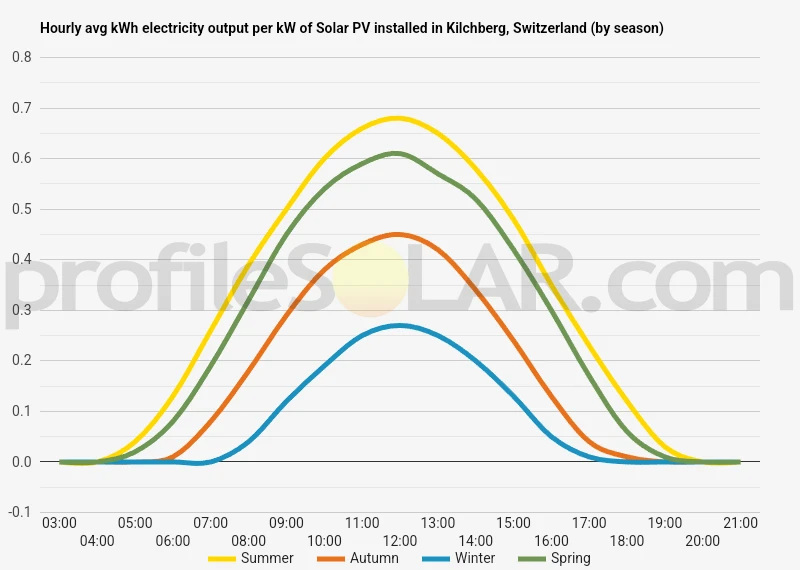

Solar output per kW of installed solar PV by season in Kilchberg
Seasonal solar PV output for Latitude: 47.3254, Longitude: 8.5513 (Kilchberg, Switzerland), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 40° South in Kilchberg, Switzerland
To maximize your solar PV system's energy output in Kilchberg, Switzerland (Lat/Long 47.3254, 8.5513) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Kilchberg, Switzerland
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kilchberg, Switzerland. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 31° South in Summer | 50° South in Autumn | 61° South in Winter | 40° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Kilchberg, Switzerland
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kilchberg, Switzerland.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Kilchberg, Switzerland
Kilchberg, Switzerland is situated along the western shore of Lake Zurich, in a region characterized by gently rolling hills and varied terrain. The town itself is nestled on the lower slopes of a hill that rises from the lakeshore, providing picturesque views of the surrounding landscape.
The topography around Kilchberg is a mix of urban development, parkland, and some forested areas. To the west and northwest, the land gradually rises, forming part of the Zimmerberg ridge. This ridge is a series of hills that separate the Lake Zurich region from the Sihl Valley to the west. The terrain in this direction becomes more elevated and wooded as you move away from the lake.
To the east, the dominant feature is Lake Zurich itself, a long, crescent-shaped body of water that stretches for about 40 kilometers. The opposite shore of the lake is visible from Kilchberg, where the land also rises into hills and small mountains.
South of Kilchberg, the shoreline continues with a mix of developed areas and green spaces, maintaining a similar hilly character. To the north, the land becomes increasingly urbanized as it approaches the city of Zurich, though it retains some of its undulating nature.
Regarding areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, there are a few considerations to keep in mind. The hilly terrain in this region can present challenges for large-scale solar farms, as flat or gently sloping land is generally preferred. However, some potential areas could include:
- The more open, less forested areas on the Zimmerberg ridge to the west, where south-facing slopes could be utilized.
- Any available agricultural land in the broader region that is not steeply inclined.
- Potential brownfield sites or former industrial areas in the more urbanized sections north towards Zurich.
It's important to note that Switzerland has strict land-use regulations, and the scenic nature of the Lake Zurich region might make it challenging to find suitable locations for large-scale solar installations. As an alternative, distributed solar PV systems on rooftops and smaller-scale ground installations might be more feasible in this area.
Switzerland solar PV Stats as a country
Switzerland ranks 25th in the world for cumulative solar PV capacity, with 3,449 total MW's of solar PV installed. This means that 4.70% of Switzerland's total energy as a country comes from solar PV (that's 16th in the world). Each year Switzerland is generating 399 Watts from solar PV per capita (Switzerland ranks 6th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Switzerland?
Yes, there are several incentives for businesses wanting to install solar energy in Switzerland. The Swiss Federal Office of Energy (SFOE) offers a range of financial support measures for businesses that want to invest in renewable energy sources such as solar power. These include grants, loans and tax deductions. Additionally, the Swiss government has set up a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to make investing in solar energy more attractive for businesses.
Do you have more up to date information than this on incentives towards solar PV projects in Switzerland? Please reach out to us and help us keep this information current. Thanks!
