Solar Energy Potential in Kreuzlingen, Thurgau, Switzerland

Kreuzlingen, Thurgau, Switzerland, situated at latitude 47.6356 and longitude 9.1791, offers a moderate potential for solar energy generation throughout the year. The location's position in the Northern Temperate Zone influences its solar energy production capabilities, with significant seasonal variations. Summer presents the most favorable conditions for solar energy generation in Kreuzlingen, Thurgau, with an average daily output of 5.66 kWh per kW of installed solar capacity. This period typically spans from June to August, when longer days and higher sun angles contribute to increased energy production. Spring follows as the second most productive season, yielding an average of 4.79 kWh per day per kW installed. This season, generally from March to May, sees improving weather conditions and increasing daylight hours, enhancing solar energy potential. Autumn experiences a noticeable decline in solar energy production, with an average daily output of 2.92 kWh per kW installed. This reduction is primarily due to shorter days and lower sun angles from September to November. Winter poses the greatest challenge for solar energy generation in Kreuzlingen, Thurgau, with a significantly lower average daily output of 1.46 kWh per kW installed. The period from December to February is characterized by shorter days, lower sun angles, and potentially increased cloud cover, all of which contribute to reduced solar energy production.

Optimizing Solar Panel Installation

To maximize year-round solar energy production in Kreuzlingen, Thurgau, fixed solar panels should be installed at a tilt angle of 41 degrees facing south. This optimal angle takes into account the location's latitude and seasonal variations in sun position, ensuring the best possible energy capture throughout the year.

Environmental and Weather Considerations

While Kreuzlingen's location is generally suitable for solar energy production, there are some environmental and weather factors that could impact efficiency: 1. Cloud cover: The region experiences cloudy conditions, particularly during winter months, which can reduce solar panel efficiency. 2. Snowfall: Winter snowfall may temporarily cover solar panels, obstructing sunlight and decreasing energy production. To mitigate these challenges, consider the following preventative measures: 1. Use anti-reflective and self-cleaning panel coatings to improve performance in low-light conditions and reduce snow accumulation. 2. Install panels at a steeper angle to encourage snow sliding off more easily. 3. Implement a regular maintenance schedule to clear snow and debris from panels, especially during winter months. By taking these factors into account and implementing appropriate measures, solar energy systems in Kreuzlingen can be optimized to achieve the best possible year-round performance despite seasonal variations and environmental challenges.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 245 locations across Switzerland. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Switzerland by location

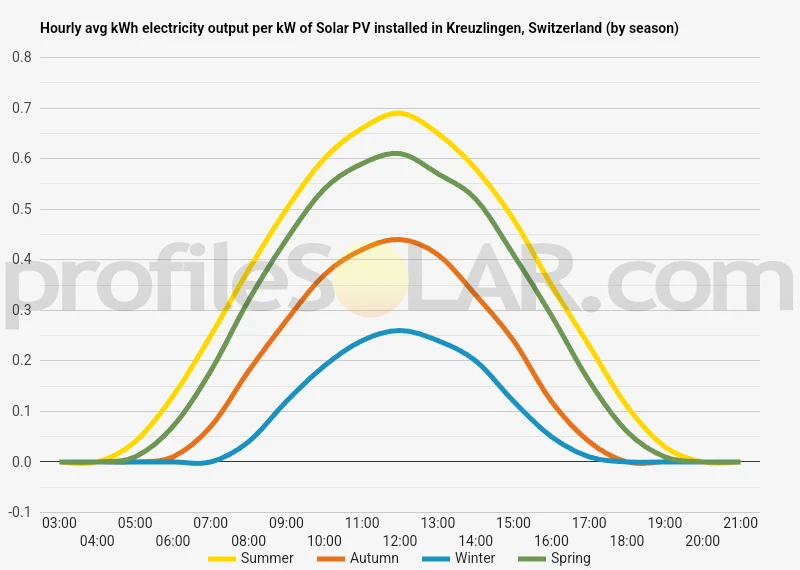

Solar output per kW of installed solar PV by season in Kreuzlingen

Seasonal solar PV output for Latitude: 47.6356, Longitude: 9.1791 (Kreuzlingen, Switzerland), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Kreuzlingen, Switzerland

To maximize your solar PV system's energy output in Kreuzlingen, Switzerland (Lat/Long 47.6356, 9.1791) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kreuzlingen, Switzerland

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kreuzlingen, Switzerland. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
31° South in Summer	50° South in Autumn	61° South in Winter	40° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kreuzlingen, Switzerland

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kreuzlingen, Switzerland.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kreuzlingen, Switzerland

Kreuzlingen, situated on the Swiss side of Lake Constance, boasts a diverse topography that reflects its unique location at the intersection of different geographical features. The city itself lies on relatively flat terrain near the lakeshore, with gentle slopes rising as one moves away from the water. This area is characterized by urban development, interspersed with parks and green spaces. As you move inland from Kreuzlingen, the landscape gradually becomes more undulating. To the south and southwest, the terrain begins to rise more noticeably, transitioning into the rolling hills of the Swiss Plateau. These hills are often covered with a mix of forests and agricultural land, creating a picturesque patchwork of greens and golds. To the east and southeast of Kreuzlingen, the topography becomes more pronounced as it approaches the foothills of the Alps. While not mountainous in the immediate vicinity, this area features more significant elevation changes and steeper slopes. The landscape here is dotted with small valleys, streams, and areas of dense woodland.

Potential for Large-Scale Solar PV

When considering areas nearby Kreuzlingen for large-scale solar PV installations, several factors come into play. The most suitable locations would likely be found in the gently rolling terrain to the south and southwest of the city. These areas offer several advantages for solar energy production: Firstly, the gradual slopes in this region provide good exposure to sunlight throughout the day, maximizing the potential for solar energy generation. The orientation of these slopes, often facing south or southwest, is particularly favorable for capturing sunlight. Secondly, this area typically has less forest cover compared to the more hilly regions to the southeast, meaning there would be fewer obstacles to clear for installation and less environmental impact. Additionally, the proximity to existing infrastructure in and around Kreuzlingen could make it easier to connect large-scale solar installations to the power grid. The relatively flat terrain would also simplify construction and maintenance of solar farms. However, it's important to note that any large-scale solar project would need to balance energy production with preserving the region's agricultural land and natural beauty. Careful planning and community engagement would be crucial to ensure that solar developments are integrated harmoniously into the landscape. While the immediate lakeside areas might seem appealing due to their flatness, these are likely to be more densely populated and valuable for other uses. Therefore, the slightly more elevated areas just inland from Kreuzlingen present the most promising combination of suitable topography and practical considerations for large-scale solar PV development.

Switzerland solar PV Stats as a country

Switzerland ranks 25th in the world for cumulative solar PV capacity, with 3,449 total MW's of solar PV installed. This means that 4.70% of Switzerland's total energy as a country comes from solar PV (that's 16th in the world). Each year Switzerland is generating 399 Watts from solar PV per capita (Switzerland ranks 6th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Switzerland?

Yes, there are several incentives for businesses wanting to install solar energy in Switzerland. The Swiss Federal Office of Energy (SFOE) offers a range of financial support measures for businesses that want to invest in renewable energy sources such as solar power. These include grants, loans and tax deductions. Additionally, the Swiss government has set up a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to make investing in solar energy more attractive for businesses.

Do you have more up to date information than this on incentives towards solar PV projects in Switzerland? Please reach out to us and help us keep this information current. Thanks!
