Mendrisio, Ticino, Switzerland, situated at latitude 45.874 and longitude 8.9838, presents a mixed picture for solar PV energy generation throughout the year. Located in the Northern Temperate Zone, this Swiss town experiences significant seasonal variations in solar energy production.

Seasonal Solar Output

Summer stands out as the most productive season, with an impressive daily output of 6.75 kWh per kW of installed solar capacity. Spring follows closely, generating 5.40 kWh/day. However, the output drops considerably during autumn, producing only 3.12 kWh/day. Winter sees the lowest generation, with a mere 1.85 kWh/day.

These figures highlight the substantial difference between peak and low seasons, with summer producing more than three times the energy of winter. The extended daylight hours and higher sun angle during summer contribute to this increased efficiency.

Optimal Panel Positioning

For fixed panel installations in Mendrisio, Ticino, the ideal tilt angle to maximize year-round production is 39 degrees facing South. This angle is calculated considering the location's latitude, daily solar elevation angles, and weighted by NASA's solar irradiance data.

Environmental Factors and Mitigation

While Mendrisio's location is generally favorable for solar energy, there are some environmental factors to consider:

• Alpine weather: Being close to the Alps, Mendrisio can experience sudden weather changes and occasional fog, which may temporarily reduce solar output.
• Snow accumulation: Winter snowfall can cover panels, reducing efficiency.

To mitigate these issues, consider installing panels at a steeper angle to encourage snow sliding off. Additionally, using high-quality, weather-resistant panels and implementing a regular cleaning schedule can help maintain optimal performance.

In conclusion, while Mendrisio's location is not ideal year-round for solar PV, it offers excellent potential during spring and summer months. With proper installation techniques and maintenance, solar energy can still be a viable and beneficial option for this Swiss town.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 245 locations across Switzerland. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Switzerland by location

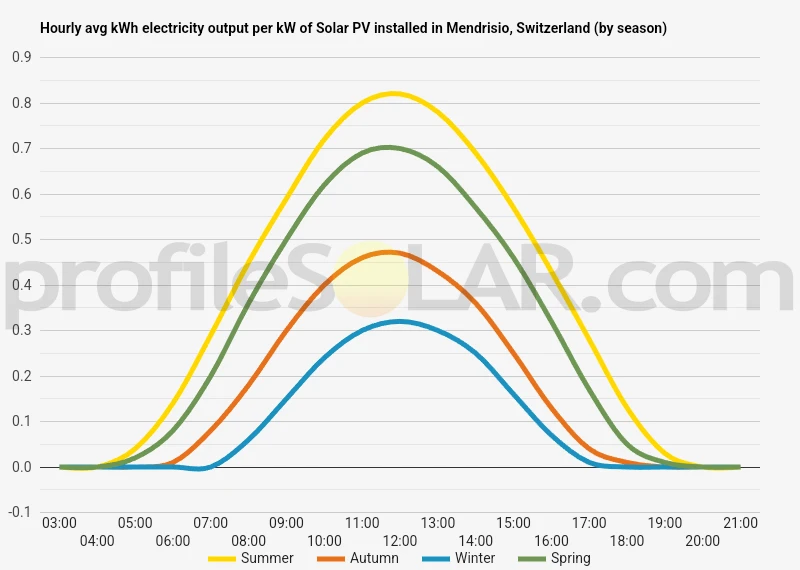

Solar output per kW of installed solar PV by season in Mendrisio

Seasonal solar PV output for Latitude: 45.874, Longitude: 8.9838 (Mendrisio, Switzerland), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 39° South in Mendrisio, Switzerland

To maximize your solar PV system's energy output in Mendrisio, Switzerland (Lat/Long 45.874, 8.9838) throughout the year, you should tilt your panels at an angle of 39° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mendrisio, Switzerland

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mendrisio, Switzerland. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 39° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
30° South in Summer	49° South in Autumn	60° South in Winter	38° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mendrisio, Switzerland

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mendrisio, Switzerland.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mendrisio, Switzerland

Mendrisio, a charming Swiss town located in the southern part of the canton of Ticino, is nestled in a diverse and picturesque landscape. The topography around Mendrisio is characterized by a mix of rolling hills, gentle slopes, and flat areas, with the majestic Alps rising in the distance. To the west of Mendrisio, the terrain gradually rises towards the foothills of Monte Generoso, a prominent mountain that dominates the skyline. This area features lush forests and steep inclines, creating a dramatic backdrop for the town. To the east, the land opens up into the fertile Mendrisiotto plain, which stretches towards the Italian border. The northern part of Mendrisio's surroundings is marked by undulating hills covered in vineyards and orchards, a testament to the region's rich agricultural heritage. These hills provide a gentle transition between the town and the more mountainous areas beyond.

Potential Areas for Large-Scale Solar PV

When considering locations for large-scale solar photovoltaic (PV) installations near Mendrisio, several factors come into play, including available space, sunlight exposure, and minimal environmental impact. The most suitable areas for such projects would likely be: The Mendrisiotto plain to the east of Mendrisio offers the most promise for large-scale solar PV installations. This relatively flat area provides ample space and receives good sunlight exposure throughout the day. The agricultural land here could potentially accommodate solar farms without significantly disrupting existing land use patterns. Some of the gently sloping hillsides to the north of Mendrisio might also be suitable for solar PV projects. These areas receive excellent sunlight and could be ideal for south-facing panel installations. However, care would need to be taken to balance energy production with the preservation of the region's iconic vineyards and orchards. It's important to note that any large-scale solar PV project in this area would need to carefully consider the aesthetic impact on the landscape, as well as potential effects on local ecosystems and agricultural activities. Proper planning and community engagement would be crucial to ensure that renewable energy development aligns with the region's natural beauty and cultural heritage.

Switzerland solar PV Stats as a country

Switzerland ranks 25th in the world for cumulative solar PV capacity, with 3,449 total MW's of solar PV installed. This means that 4.70% of Switzerland's total energy as a country comes from solar PV (that's 16th in the world). Each year Switzerland is generating 399 Watts from solar PV per capita (Switzerland ranks 6th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Switzerland?

Yes, there are several incentives for businesses wanting to install solar energy in Switzerland. The Swiss Federal Office of Energy (SFOE) offers a range of financial support measures for businesses that want to invest in renewable energy sources such as solar power. These include grants, loans and tax deductions. Additionally, the Swiss government has set up a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to make investing in solar energy more attractive for businesses.

Do you have more up to date information than this on incentives towards solar PV projects in Switzerland? Please reach out to us and help us keep this information current. Thanks!
