Monte Carasso, Ticino, Switzerland, situated at the coordinates 46.2072, 8.97 in the Northern Temperate Zone, offers a variable but generally favorable location for solar PV energy generation throughout the year.

Seasonal Solar Production

Solar energy production at this Alpine location shows significant seasonal variation. Summer stands out as the most productive period, generating an average of 5.63 kWh per day for each kilowatt of installed solar capacity. Spring follows closely behind with 5.04 kWh/day, making these warmer months ideal for solar energy harvesting.

Production decreases considerably during autumn, dropping to 3.08 kWh/day. Winter experiences the lowest output at just 1.97 kWh/day per kW installed, less than half of the spring and summer values.

Optimal Panel Configuration

For fixed solar panel installations in Monte Carasso, Ticino, the ideal tilt angle is 41 degrees facing South. This specific angle maximizes year-round energy production by optimizing exposure to the sun's varying positions throughout the seasons.

Environmental Considerations

Several environmental factors could potentially impact solar production at this location:

• Alpine snow accumulation during winter months can cover panels and significantly reduce output during the already low-production season
• Intermittent fog and cloud cover in the valley regions, particularly during autumn and winter
• Potential shading from surrounding mountains, especially during winter when the sun's path is lower

Preventative Measures

To maximize energy production despite these challenges, several installation strategies can be employed. Panels should be installed at the recommended 41-degree angle with sufficient clearance from the roof to allow snow to slide off. Snow-shedding surfaces or heating elements can be incorporated for particularly snowy locations.

Careful site assessment to avoid mountain shadows is crucial, potentially using solar pathfinders to identify optimal placement. Additionally, micro-inverters or power optimizers can help minimize the impact of partial shading when it does occur, ensuring that shaded panels don't compromise the performance of the entire system.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 245 locations across Switzerland. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Switzerland by location

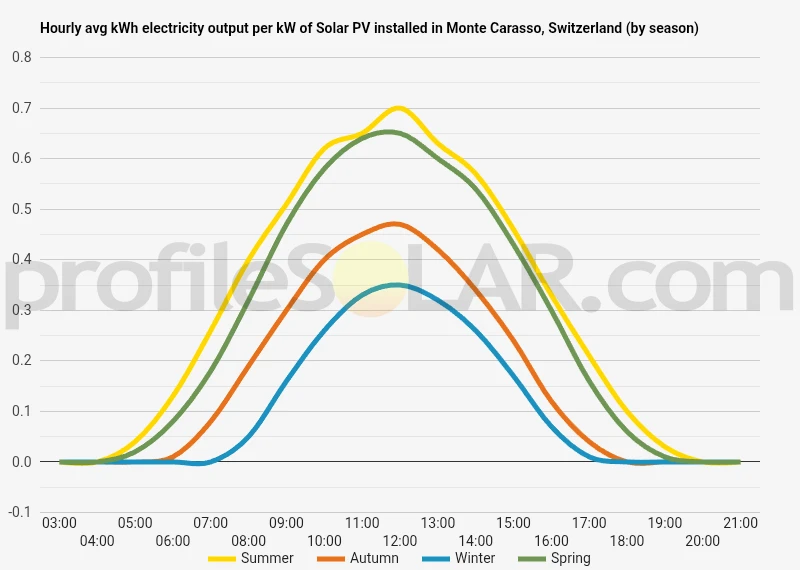

Solar output per kW of installed solar PV by season in Monte Carasso

Seasonal solar PV output for Latitude: 46.2072, Longitude: 8.97 (Monte Carasso, Switzerland), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Monte Carasso, Switzerland

To maximize your solar PV system's energy output in Monte Carasso, Switzerland (Lat/Long 46.2072, 8.97) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Monte Carasso, Switzerland

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Monte Carasso, Switzerland. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
30° South in Summer	50° South in Autumn	60° South in Winter	39° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Monte Carasso, Switzerland

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Monte Carasso, Switzerland.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Monte Carasso, Switzerland

The landscape surrounding Monte Carasso in Switzerland presents a dramatic alpine topography characteristic of the southern Swiss Alps. Nestled in the canton of Ticino, Monte Carasso sits at the northern edge of the Bellinzona plain, where the Ticino River flows toward Lake Maggiore. The settlement itself occupies both valley floor positions and rises up the steep mountainsides that frame this region.

Mountain and Valley Configuration

Monte Carasso is situated at the transition zone between the flat Magadino Plain and the rising Alpine slopes. To the east and north, the terrain climbs steeply into mountain ridges that form part of the Lepontine Alps. These mountains create significant elevation changes within short horizontal distances, with slopes often exceeding 30 degrees. The nearby peaks reach altitudes of over 2,000 meters, creating a striking vertical profile that dominates the local landscape. The western boundary of Monte Carasso is defined by the Ticino River, which has carved a relatively flat valley floor. This valley runs roughly north-south and provides the only substantial flat terrain in the immediate vicinity. The river plain gradually widens as it extends southward toward Bellinzona and eventually Lake Maggiore.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several geographical considerations come into play in the Monte Carasso region. The most suitable areas would be: The Magadino Plain south of Monte Carasso offers the most promising terrain for large-scale solar development. This relatively flat agricultural area provides sufficient space for extensive arrays without the complications of steep terrain. The open exposure ensures minimal shadowing from surrounding mountains, particularly in the central portions of the plain. South and southwest-facing slopes at lower elevations could also accommodate solar installations. These aspects receive more direct sunlight throughout the year compared to other orientations. However, installation on these slopes would require terracing and careful engineering to manage the gradient. The broader valley floor near Bellinzona, extending south from Monte Carasso, presents another viable option. This area combines favorable flatness with good solar exposure, though competing land uses including agriculture, transportation, and urban development may limit available space.

Topographical Limitations

Several features of the Monte Carasso landscape create challenges for large-scale solar development. The steep eastern and northern slopes experience significant shadowing, especially during winter months when the sun angle is lower. These areas also present construction and maintenance difficulties due to their gradient. The narrow configuration of the valley means that mountain shadows can extend across substantial portions of the otherwise suitable valley floor during early morning and late afternoon, particularly in winter. This effect is most pronounced in the narrower northern sections of the valley. Water management considerations also affect potential development sites, as the Ticino River floodplain includes areas subject to periodic inundation. These zones would require careful assessment to avoid flood risks to solar infrastructure.

Microclimate Factors

The complex topography around Monte Carasso creates varied microclimates that influence solar potential. The valley orientation channels winds, which can provide beneficial cooling for solar panels during summer but may also increase maintenance requirements due to dust and debris movement. Fog formation in the valley bottom during certain seasons can temporarily reduce solar efficiency in the lowest-lying areas. This phenomenon is most common during autumn and winter mornings, when temperature inversions trap moisture in the valley. Higher elevation sites above the fog line may avoid these limitations but face other challenges including difficult access, increased snow cover duration, and potential for more extreme weather conditions including stronger winds and icing.

Switzerland solar PV Stats as a country

Switzerland ranks 25th in the world for cumulative solar PV capacity, with 3,449 total MW's of solar PV installed. This means that 4.70% of Switzerland's total energy as a country comes from solar PV (that's 16th in the world). Each year Switzerland is generating 399 Watts from solar PV per capita (Switzerland ranks 6th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Switzerland?

Yes, there are several incentives for businesses wanting to install solar energy in Switzerland. The Swiss Federal Office of Energy (SFOE) offers a range of financial support measures for businesses that want to invest in renewable energy sources such as solar power. These include grants, loans and tax deductions. Additionally, the Swiss government has set up a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to make investing in solar energy more attractive for businesses.

Do you have more up to date information than this on incentives towards solar PV projects in Switzerland? Please reach out to us and help us keep this information current. Thanks!
