Morbio Superiore in Switzerland offers varying potential for solar PV energy generation throughout the year. This location in the northern temperate zone experiences significant seasonal fluctuations in solar electricity production.

Seasonal Solar Production

Solar panels at this Swiss location perform best during summer months, generating approximately 6.72kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season, with daily yields of 5.34kWh per kilowatt. Production drops considerably during autumn to 3.06kWh daily per kilowatt, while winter sees the lowest output at just 1.80kWh per day per kilowatt of installed capacity.

This seasonal pattern means Morbio Superiore experiences a substantial difference between summer and winter production - with summer generating nearly four times the electricity of winter months. The location is therefore not ideal for consistent year-round solar generation, though it remains viable with proper system sizing.

Optimal Panel Installation

For fixed solar panel installations in Morbio Superiore, Ticino, the ideal tilt angle to maximize year-round energy production is 39 degrees facing South. This angle has been calculated based on the site's latitude and weighted solar potential throughout the year.

Environmental Considerations

Several environmental factors could impact solar production at this Alpine location:

• Snow accumulation during winter months can significantly reduce output by covering panels, requiring either manual clearing or steep installation angles
• Fog and low cloud cover common in Alpine valleys, particularly during autumn and winter, may reduce solar radiation reaching panels
• Potential shading from surrounding mountains or tall vegetation, given the topography of the region

Mitigation Strategies

To maximize production despite these challenges, installations should incorporate several preventative measures. Panel mounting systems should be robust enough to handle snow loads while maintaining accessibility for clearing. Elevating panels slightly higher than typical installations can reduce snow accumulation effects.

Considering the significant seasonal variation, system sizing should account for winter's reduced production if year-round self-sufficiency is desired. Alternatively, grid connection allows excess summer production to offset winter shortfalls.

While not ideal for consistent year-round production, Morbio Superiore still offers viable solar potential, particularly from spring through autumn, with proper system design accommodating local environmental conditions.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 245 locations across Switzerland. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Switzerland by location

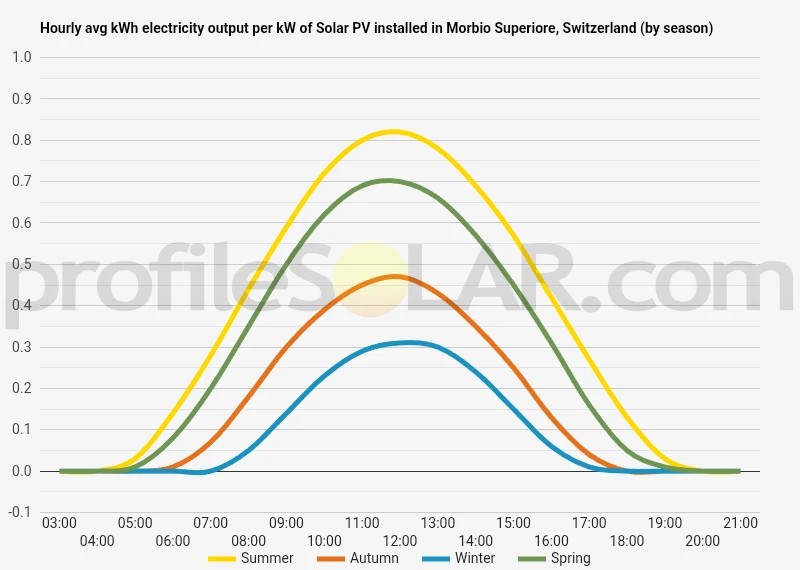

Solar output per kW of installed solar PV by season in Morbio Superiore

Seasonal solar PV output for Latitude: 45.8608, Longitude: 9.0402 (Morbio Superiore, Switzerland), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 39° South in Morbio Superiore, Switzerland

To maximize your solar PV system's energy output in Morbio Superiore, Switzerland (Lat/Long 45.8608, 9.0402) throughout the year, you should tilt your panels at an angle of 39° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Morbio Superiore, Switzerland

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Morbio Superiore, Switzerland. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 39° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
30° South in Summer	49° South in Autumn	60° South in Winter	38° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Morbio Superiore, Switzerland

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Morbio Superiore, Switzerland.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Morbio Superiore, Switzerland

The landscape around Morbio Superiore in Switzerland presents a diverse topographical profile characteristic of the southern Swiss Alps region. Situated in the Canton of Ticino near the Italian border, Morbio Superiore rests within a transitional zone between the Alpine mountains and the Po Valley.

Topographical Features

Morbio Superiore occupies an elevated position at approximately 475 meters above sea level on the southern slopes of the Swiss Alps. The terrain is characterized by moderate to steep hillsides that form part of the foothills extending from the higher Alpine ranges to the north. The settlement itself is nestled on a natural terrace that offers some relatively flat areas within an otherwise undulating landscape. The surrounding region features significant elevation changes, with higher ridges and peaks rising to the north and northeast, while the land gradually descends southward toward Lake Como and the Italian border. Several valleys cut through the terrain, carved by streams and seasonal watercourses that have shaped the landscape over millennia. Forests cover substantial portions of the steeper slopes, particularly on north-facing aspects, while more gradual inclines have historically been cleared for agriculture and settlement. The vegetation transitions from mixed deciduous forests at lower elevations to more coniferous coverage at higher altitudes.

Solar PV Potential in the Region

When considering areas suitable for large-scale solar photovoltaic installations near Morbio Superiore, several factors merit consideration including slope orientation, elevation, existing land use, and accessibility. The south-facing slopes in the vicinity offer promising conditions for solar energy capture, as they receive more direct solar radiation throughout the year. Particularly favorable are the more gradual south-facing hillsides between Morbio Superiore and the communities of Sagno and Vacallo, where the terrain provides natural orientation toward the sun's path. The relatively flat plateaus found at various elevations throughout the region could accommodate larger installations without extensive terrain modification. These include some agricultural areas that have already been developed and might be suitable for dual-use applications combining farming with solar collection. Areas to avoid would include the densely forested steep slopes, where both ecological impacts and installation challenges would be significant. Similarly, the narrow valley bottoms often experience more shading from surrounding terrain and may collect cold air, potentially leading to more frequent fog conditions that would reduce solar efficiency.

Infrastructure Considerations

The existing infrastructure around Morbio Superiore provides some advantages for solar development. The region has a relatively well-developed road network that could facilitate construction and maintenance access to potential solar sites. Additionally, the proximity to population centers means that electricity transmission infrastructure is already established in many areas, potentially reducing the costs associated with connecting new generation capacity to the grid. The broader region between Chiasso and Mendrisio, lying at slightly lower elevations with more extensive flat or gently sloping terrain, might offer the most practical locations for truly large-scale installations. These areas balance favorable solar exposure with accessibility and proximity to existing infrastructure, though competing land uses present significant considerations in this densely populated part of Switzerland.

Switzerland solar PV Stats as a country

Switzerland ranks 25th in the world for cumulative solar PV capacity, with 3,449 total MW's of solar PV installed. This means that 4.70% of Switzerland's total energy as a country comes from solar PV (that's 16th in the world). Each year Switzerland is generating 399 Watts from solar PV per capita (Switzerland ranks 6th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Switzerland?

Yes, there are several incentives for businesses wanting to install solar energy in Switzerland. The Swiss Federal Office of Energy (SFOE) offers a range of financial support measures for businesses that want to invest in renewable energy sources such as solar power. These include grants, loans and tax deductions. Additionally, the Swiss government has set up a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to make investing in solar energy more attractive for businesses.

Do you have more up to date information than this on incentives towards solar PV projects in Switzerland? Please reach out to us and help us keep this information current. Thanks!
