Muralto, Ticino, Switzerland, situated at latitude 46.1701° and longitude 8.8045° in the Northern Temperate Zone, offers moderate potential for solar energy generation throughout the year. This picturesque location experiences significant seasonal variations in solar electricity production.

The solar energy output in Muralto follows a predictable seasonal pattern. During summer, solar panels generate their peak output at 5.63 kWh per day for each kilowatt of installed capacity. Spring follows closely behind with 5.04 kWh/day per kW. Production drops considerably during autumn to 3.08 kWh/day per kW, while winter sees the lowest generation at just 1.97 kWh/day per kW of installed capacity.

For residents or businesses considering solar installations in Muralto, Ticino, the optimal tilt angle for fixed solar panels is 41 degrees facing South. This specific angle has been calculated to maximize year-round energy production based on Muralto's geographical position and seasonal solar patterns.

Environmental Factors Affecting Solar Production

Several environmental factors can impact solar energy generation in Muralto. The Alpine location means potential snow coverage during winter months, which can significantly reduce production during the already low-yield winter season. Regular snow removal may be necessary to maintain even minimal winter production.

Fog from nearby Lake Maggiore can also reduce solar efficiency, particularly during autumn and winter mornings. Additionally, the mountainous terrain may cause partial shading at certain times of day, depending on the specific installation location.

To mitigate these challenges, installations should include:

• Snow-shedding panel arrangements with steeper angles where heavy snowfall is expected
• Micro-inverters or power optimizers to minimize the impact of partial shading
• Regular maintenance schedules, especially before and during winter
• Weather-resistant components designed for Alpine conditions

Despite these challenges, Muralto's location still provides adequate solar potential, especially from March through October. The spring and summer months offer excellent generation capacity that can offset the reduced winter production, making solar a viable renewable energy option for this Swiss location when properly implemented.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 245 locations across Switzerland. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Switzerland by location

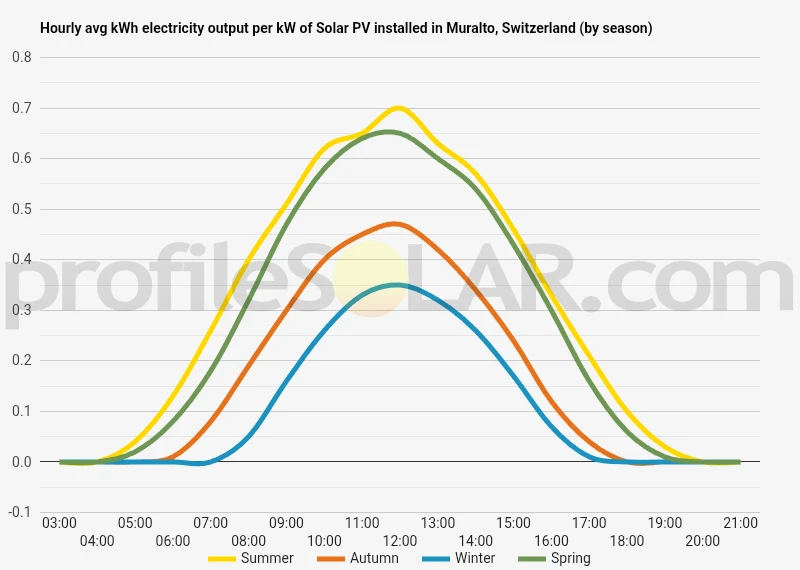

Solar output per kW of installed solar PV by season in Muralto

Seasonal solar PV output for Latitude: 46.1701, Longitude: 8.8045 (Muralto, Switzerland), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Muralto, Switzerland

To maximize your solar PV system's energy output in Muralto, Switzerland (Lat/Long 46.1701, 8.8045) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Muralto, Switzerland

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Muralto, Switzerland. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
30° South in Summer	50° South in Autumn	60° South in Winter	39° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Muralto, Switzerland

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Muralto, Switzerland.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Muralto, Switzerland

The topography around Muralto, Switzerland presents a dramatic Alpine landscape characterized by significant variations in elevation. Muralto itself is nestled on the northern shore of Lake Maggiore (Lago Maggiore), at an elevation of approximately 200 meters above sea level. This picturesque location sits within a deep valley surrounded by imposing mountains that rise steeply from the lakeshore. The immediate vicinity of Muralto features the broad valley floor along Lake Maggiore, which gradually transitions to increasingly steep slopes. Moving north and east from the town, the terrain quickly gains elevation, with mountains reaching heights of over 1,500 meters within just a few kilometers of the lakeshore. The nearby peaks include Monte Cardada and Cimetta to the northwest, accessible by cable car from neighboring Locarno, offering panoramic views of the entire region.

Valley and Mountain Characteristics

The Maggia River valley extends northward from Lake Maggiore, creating a relatively flat corridor that eventually branches into smaller, steeper valleys. The eastern and western sides of Muralto are defined by mountain slopes that channel the morning and afternoon sun, respectively. This topographical arrangement means that the region experiences varying levels of solar exposure throughout the day, with some areas receiving more consistent sunlight than others. The mountainous terrain creates what meteorologists call a "rain shadow effect," where the mountains block certain weather patterns, generally resulting in the Locarno-Muralto area having a milder climate than might be expected for its Alpine location. The mountains also influence local wind patterns, creating microclimates throughout the region.

Optimal Areas for Large-Scale Solar PV

For large-scale solar photovoltaic installations, several nearby areas present favorable conditions based on topographical considerations: The relatively flat areas along the northern shores of Lake Maggiore, extending from Muralto toward Tenero-Contra, offer accessible terrain with good solar exposure. These lower-elevation sites avoid some of the challenges associated with high-altitude installations while still benefiting from the region's solar potential. The south-facing slopes of the lower mountains, particularly those between 300-800 meters elevation, present excellent opportunities for solar installations. These areas receive substantial direct sunlight while avoiding the extreme conditions of higher elevations. The slopes between Muralto and Orselina, as well as those near Minusio, fall into this category. The broader Maggia Valley floor, extending northward from the lake, offers significant flat or gently sloping terrain that could accommodate larger installations. This area benefits from the valley's north-south orientation, which allows for extended sun exposure throughout the day.

Topographical Challenges

Despite these opportunities, the region's topography presents several challenges for solar development. The steep mountain slopes that dominate much of the landscape limit the available area for large installations and increase construction complexity. Many south-facing slopes that would otherwise be ideal for solar exposure are too steep for practical development. The mountainous terrain can also create localized shading effects, where higher peaks cast shadows on lower areas during certain parts of the day or seasons of the year. This is particularly pronounced during winter months when the sun's path is lower in the southern sky. Additionally, the region experiences periodic föhn winds – warm, dry downslope winds that can be quite strong. While these winds can help clear cloud cover and actually improve solar conditions, they must be considered in the structural design of any large-scale solar installation. The most promising areas balance optimal solar exposure with practical construction considerations, favoring moderately sloped, south-facing terrain at lower to middle elevations, particularly in the broader valleys and along the lake shores where infrastructure access is also more developed.

Switzerland solar PV Stats as a country

Switzerland ranks 25th in the world for cumulative solar PV capacity, with 3,449 total MW's of solar PV installed. This means that 4.70% of Switzerland's total energy as a country comes from solar PV (that's 16th in the world). Each year Switzerland is generating 399 Watts from solar PV per capita (Switzerland ranks 6th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Switzerland?

Yes, there are several incentives for businesses wanting to install solar energy in Switzerland. The Swiss Federal Office of Energy (SFOE) offers a range of financial support measures for businesses that want to invest in renewable energy sources such as solar power. These include grants, loans and tax deductions. Additionally, the Swiss government has set up a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to make investing in solar energy more attractive for businesses.

Do you have more up to date information than this on incentives towards solar PV projects in Switzerland? Please reach out to us and help us keep this information current. Thanks!
