Neu Sankt Johann, Saint Gallen, Switzerland, situated in the Northern Temperate Zone, presents varying conditions for solar PV energy generation throughout the year. With its Alpine location, this site experiences significant seasonal fluctuations in solar production potential.

Seasonal Solar Production

Solar energy output at this location shows marked seasonal differences. Summer stands out as the most productive period, yielding 5.66kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 4.79kWh/day, while autumn produces a moderate 2.92kWh/day. Winter, as expected in this Alpine region, generates the least energy at just 1.46kWh/day per installed kilowatt.

The substantial difference between summer and winter production (nearly a 4:1 ratio) indicates that solar energy systems here will produce most of their annual output during the warmer months. Approximately 75% of the annual energy production occurs during spring and summer combined.

Optimal Installation Parameters

For fixed panel installations in Neu Sankt Johann, Saint Gallen, the ideal tilt angle to maximize year-round energy production is 40 degrees facing South. This angle represents the mathematically optimized position that accounts for the location's latitude and the seasonal variations in the sun's path across the sky.

Environmental and Weather Challenges

Several significant environmental factors may affect solar production at this Alpine location:

• Snow accumulation during winter months can cover panels and dramatically reduce output during the already low-production season
• Fog and low cloud cover, common in valley locations in the Swiss Alps, can reduce solar radiation reaching the panels
• Potential shading from surrounding mountains, especially during winter when the sun's path is lower in the sky
• Occasional hail storms in summer that could damage panels if not properly protected

Preventative Measures

To maximize energy production despite these challenges, several installation strategies are recommended:

• Install panels at a steeper angle than the optimal 40 degrees if winter production is prioritized, as this helps snow slide off more easily
• Use snow-resistant panel mountings designed for Alpine conditions
• Conduct a thorough shading analysis before installation to account for surrounding topography
• Select high-efficiency panels that perform better in diffuse light conditions common during foggy periods
• Install micro-inverters or power optimizers to minimize the impact of partial shading
• Choose panels with reinforced glass and frames that can withstand potential hail impacts

With proper planning and installation techniques that address these local factors, solar PV systems in Neu Sankt Johann can still achieve good annual production despite the seasonal variations and environmental challenges.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 245 locations across Switzerland. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Switzerland by location

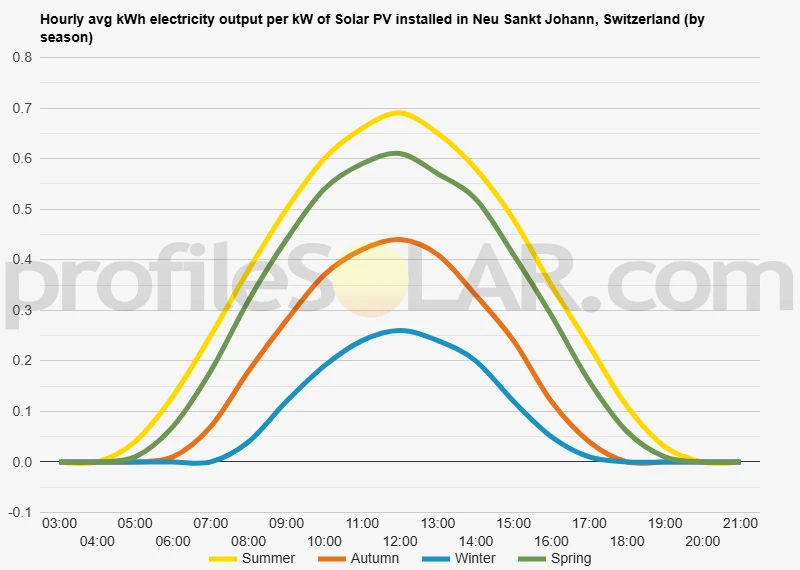

Solar output per kW of installed solar PV by season in Neu Sankt Johann

Seasonal solar PV output for Latitude: 47.2268, Longitude: 9.1934 (Neu Sankt Johann, Switzerland), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 40° South in Neu Sankt Johann, Switzerland

To maximize your solar PV system's energy output in Neu Sankt Johann, Switzerland (Lat/Long 47.2268, 9.1934) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Neu Sankt Johann, Switzerland

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Neu Sankt Johann, Switzerland. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
31° South in Summer	50° South in Autumn	61° South in Winter	40° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Neu Sankt Johann, Switzerland

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Neu Sankt Johann, Switzerland.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Neu Sankt Johann, Switzerland

Neu Sankt Johann nestles within the picturesque Toggenburg valley in eastern Switzerland, surrounded by the impressive topography of the pre-Alpine region. The settlement sits at an elevation of approximately 900 meters above sea level, with the landscape characterized by rolling hills that gradually rise to more prominent mountains in several directions. The immediate vicinity features the Thur River flowing through the valley bottom, creating a relatively flat corridor amid otherwise undulating terrain. To the north and south, the landscape rises significantly, with forested slopes climbing to elevations exceeding 1,500 meters. Particularly notable is the Säntis massif to the northeast, which reaches over 2,500 meters and dominates the regional skyline.

Topographical Characteristics

The valley orientation runs roughly east-west, with Neu Sankt Johann positioned where the valley makes a gentle turn. This positioning means the area experiences variable sun exposure throughout the day, with ridge lines creating shadows during early morning and late afternoon, especially during winter months. Surrounding the settlement, the landscape presents a mosaic of meadows, agricultural fields, and forested areas. The lower slopes feature predominantly mixed forests, while higher elevations transition to coniferous woodland and eventually alpine meadows above the treeline. The terrain exhibits moderate to steep gradients on the valley sides, with numerous small tributary streams creating additional contours and gullies that feed into the main Thur River. These features contribute to a complex topographical profile that influences local microclimates and solar exposure patterns.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic development, several areas in the vicinity merit consideration based on topographical factors: The south-facing slopes north of the valley offer promising potential for solar installations. These areas receive consistent solar exposure throughout the day, particularly during the critical midday period when solar radiation is most intense. The moderate incline of some of these slopes actually enhances solar collection efficiency compared to perfectly flat terrain. Several plateau-like areas at higher elevations, particularly northwest of Neu Sankt Johann, present favorable conditions. These relatively flat expanses at approximately 1,200-1,400 meters elevation benefit from reduced atmospheric filtering of solar radiation and potentially fewer fog days compared to the valley floor. The valley floor itself, while experiencing more shading from surrounding mountains, contains agricultural areas that could accommodate dual-use solar installations. These would need careful positioning to maximize exposure during peak sunlight periods. Areas to avoid include the steep north-facing slopes on the southern side of the valley, which receive significantly reduced direct sunlight, especially during winter months. Additionally, the narrowest sections of the valley, where shadow effects are magnified, would yield substantially lower solar energy potential. The optimal locations would balance favorable solar exposure with practical considerations such as accessibility and proximity to existing electrical infrastructure. The moderately sloped, south-facing areas between 900-1,200 meters elevation generally represent the best compromise between these factors, offering suitable terrain for large-scale solar development while minimizing the engineering challenges posed by steeper or more remote locations.

Switzerland solar PV Stats as a country

Switzerland ranks 25th in the world for cumulative solar PV capacity, with 3,449 total MW's of solar PV installed. This means that 4.70% of Switzerland's total energy as a country comes from solar PV (that's 16th in the world). Each year Switzerland is generating 399 Watts from solar PV per capita (Switzerland ranks 6th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Switzerland?

Yes, there are several incentives for businesses wanting to install solar energy in Switzerland. The Swiss Federal Office of Energy (SFOE) offers a range of financial support measures for businesses that want to invest in renewable energy sources such as solar power. These include grants, loans and tax deductions. Additionally, the Swiss government has set up a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to make investing in solar energy more attractive for businesses.

Do you have more up to date information than this on incentives towards solar PV projects in Switzerland? Please reach out to us and help us keep this information current. Thanks!
