Richterswil, Switzerland, situated at 47.2176° N, 8.7003° E, presents a mixed landscape for solar energy generation throughout the year. This location in the Northern Temperate Zone experiences significant seasonal variations in solar output, which directly impacts the efficiency of photovoltaic (PV) systems.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive daily output of 5.71 kWh per kW of installed solar capacity. Spring follows closely, generating 4.85 kWh/day. Autumn sees a noticeable decrease to 2.99 kWh/day, while winter experiences the lowest production at 1.52 kWh/day.

These figures highlight the stark contrast between the peak and trough of solar generation in Richterswil. The long, sunny days of summer provide ideal conditions for solar energy production, making it the prime time for harvesting solar power. Conversely, the short, often overcast days of winter present challenges for consistent energy generation.

Optimal Panel Installation

For those considering a fixed panel installation in Richterswil, the ideal tilt angle to maximize year-round solar production is 40 degrees facing South. This angle is calculated to optimize the panels' exposure to sunlight throughout the year, taking into account the location's latitude and the Earth's elliptical orbit.

Environmental Considerations

While Richterswil's location is generally favorable for solar energy, there are some environmental factors to consider:

• Snow accumulation in winter can temporarily reduce panel efficiency
• Fog from nearby Lake Zurich may occasionally impact solar irradiance

To mitigate these issues, installers can implement steeper panel angles to encourage snow sliding off and use anti-reflective coatings to maximize light absorption in foggy conditions. Regular maintenance, including snow removal, is also crucial for optimal performance.

In conclusion, while Richterswil experiences significant seasonal variations in solar output, proper installation techniques and maintenance can help maximize energy production year-round. The location's strong summer and spring performance make it a viable option for solar PV systems, despite the challenges posed by winter months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 245 locations across Switzerland. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Switzerland by location

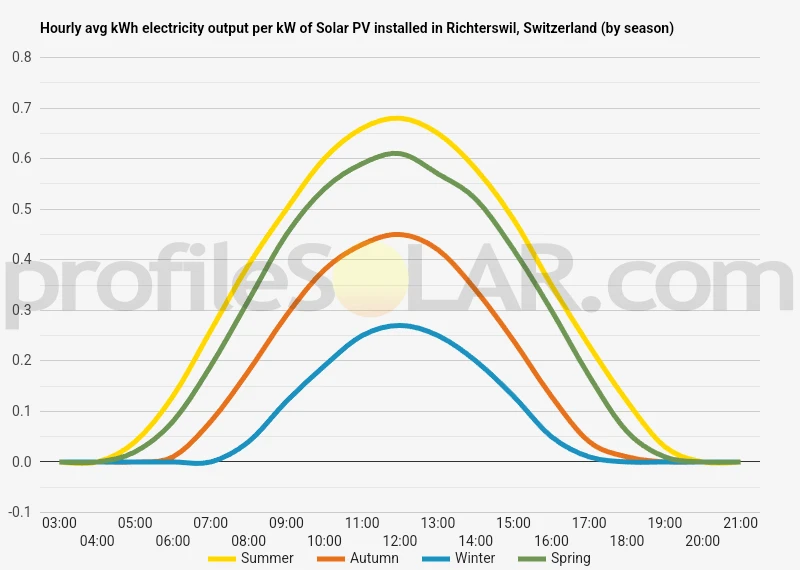

Solar output per kW of installed solar PV by season in Richterswil

Seasonal solar PV output for Latitude: 47.2176, Longitude: 8.7003 (Richterswil, Switzerland), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 40° South in Richterswil, Switzerland

To maximize your solar PV system's energy output in Richterswil, Switzerland (Lat/Long 47.2176, 8.7003) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Richterswil, Switzerland

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Richterswil, Switzerland. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
31° South in Summer	50° South in Autumn	61° South in Winter	40° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Richterswil, Switzerland

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Richterswil, Switzerland.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Richterswil, Switzerland

Richterswil, Switzerland, nestled along the southern shore of Lake Zurich, boasts a picturesque and varied topography that reflects the region's natural beauty. The town itself is situated on gently sloping terrain that rises from the lakeshore, offering stunning views of the water and surrounding landscape. As you move away from the lake, the terrain becomes more pronounced, with rolling hills and small valleys characterizing the immediate surroundings. These hills are often covered with lush green meadows, forests, and agricultural lands, creating a patchwork of colors and textures across the landscape. The elevation gradually increases as you head south, with the terrain becoming more rugged and mountainous.

Nearby Topographical Features

To the south of Richterswil, the landscape transitions into the foothills of the Alps. Here, you'll find steeper slopes and higher elevations, with some peaks reaching over 1,000 meters above sea level. The Hoher Etzel, a prominent hill located southwest of Richterswil, stands at 1,098 meters and offers panoramic views of the region. The area is also characterized by numerous small streams and creeks that flow down from the hills, eventually feeding into Lake Zurich. These waterways have carved gentle valleys and ravines into the landscape over time, adding to the topographical diversity of the region.

Potential for Large-scale Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations would have ample sunlight exposure, minimal shading, and relatively flat or gently sloping terrain to simplify installation and maintenance. Given these criteria, the most suitable areas for large-scale solar PV near Richterswil would likely be found on the south-facing slopes of the hills surrounding the town. These areas receive more direct sunlight throughout the day and year, maximizing energy production potential. The gentle slopes in these locations could also provide natural tilt for the solar panels, potentially increasing their efficiency. Agricultural lands on the outskirts of Richterswil, particularly those with a southern exposure, could also be considered for solar PV installations. These areas often have large, open spaces with minimal obstructions, making them ideal for solar farms. However, it's important to note that the region's natural beauty and agricultural importance may pose challenges for large-scale solar developments. Any such projects would need to carefully balance energy production goals with environmental conservation and land use considerations. Additionally, the varying elevations and occasional cloud cover in the region may impact the overall efficiency of solar installations, requiring thorough site assessments before implementation.

Switzerland solar PV Stats as a country

Switzerland ranks 25th in the world for cumulative solar PV capacity, with 3,449 total MW's of solar PV installed. This means that 4.70% of Switzerland's total energy as a country comes from solar PV (that's 16th in the world). Each year Switzerland is generating 399 Watts from solar PV per capita (Switzerland ranks 6th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Switzerland?

Yes, there are several incentives for businesses wanting to install solar energy in Switzerland. The Swiss Federal Office of Energy (SFOE) offers a range of financial support measures for businesses that want to invest in renewable energy sources such as solar power. These include grants, loans and tax deductions. Additionally, the Swiss government has set up a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to make investing in solar energy more attractive for businesses.

Do you have more up to date information than this on incentives towards solar PV projects in Switzerland? Please reach out to us and help us keep this information current. Thanks!
