Rickenbach LU, Switzerland, located in the northern temperate zone, offers a moderate location for solar PV energy generation with distinct seasonal variations. This small municipality in the canton of Lucerne experiences typical Central European weather patterns that influence solar energy production throughout the year.

Seasonal Solar Production

Solar PV systems in Rickenbach generate varying amounts of electricity depending on the season. Summer is the most productive period, yielding approximately 5.66 kWh per day for each kilowatt of installed solar capacity. Spring follows as the second most productive season with 4.79 kWh/day per kW. Autumn production drops to 2.92 kWh/day per kW, while winter shows the lowest output at just 1.46 kWh/day per kW of installed capacity.

This seasonal pattern means that a solar installation in Rickenbach will produce nearly four times more energy during summer than in winter months. The substantial difference highlights the importance of proper system sizing to meet year-round energy needs, particularly during the less productive winter period.

Optimal Panel Installation

For fixed solar panel installations in Rickenbach, the ideal tilt angle to maximize year-round energy production is 40 degrees facing South. This angle optimizes the capture of available sunlight throughout the year, balancing between summer and winter sun positions, and accounts for the earth's elliptical orbit and Rickenbach's specific latitude of 47.2173°N.

Environmental and Weather Challenges

Several factors can impact solar production in this Alpine region:

• Snow coverage during winter months can significantly reduce production if panels become covered, requiring either manual clearing or steep installation angles to encourage snow sliding
• Fog and low cloud cover, common in the Swiss Plateau region, can reduce solar irradiance, particularly during autumn and winter
• Potential shading from surrounding mountains or tall trees, given the hilly terrain of the region

Preventative Measures

To maximize solar production in Rickenbach despite these challenges, several installation strategies can be implemented. Using microinverters or power optimizers can minimize production losses from partial shading. Installing panels at the recommended 40-degree tilt helps with both optimal sun exposure and natural snow shedding. Regular maintenance, including snow removal during winter months, ensures panels remain productive year-round.

Additionally, careful site selection that avoids shading from nearby trees, buildings, or topographical features is crucial for maximizing production, especially during lower-output winter months when the sun's path is lower in the sky.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 245 locations across Switzerland. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Switzerland by location

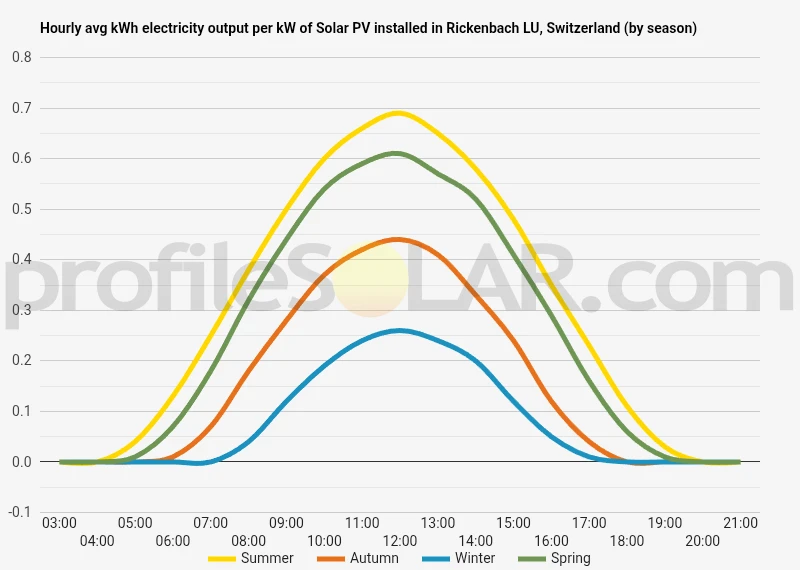

Solar output per kW of installed solar PV by season in Rickenbach LU

Seasonal solar PV output for Latitude: 47.2173, Longitude: 8.1605 (Rickenbach LU, Switzerland), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 40° South in Rickenbach LU, Switzerland

To maximize your solar PV system's energy output in Rickenbach LU, Switzerland (Lat/Long 47.2173, 8.1605) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rickenbach LU, Switzerland

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rickenbach LU, Switzerland. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
31° South in Summer	50° South in Autumn	61° South in Winter	40° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rickenbach LU, Switzerland

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rickenbach LU, Switzerland.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rickenbach LU, Switzerland

The landscape around Rickenbach in the canton of Lucerne, Switzerland presents a varied topography characteristic of the Swiss Plateau (Mittelland) region. Situated at approximately 610 meters above sea level, Rickenbach rests in an area marked by gentle hills, small valleys, and agricultural plains.

Topographical Features

The immediate vicinity of Rickenbach features moderately rolling terrain with elevation changes that are significant but not extreme. The area sits at the northern edge of the Swiss Plateau, with the terrain gradually rising southward toward the beginnings of the Alpine foothills. Several small streams cut through the landscape, creating shallow valleys between the hills. To the north, the land gradually descends toward the Wigger River valley. The eastern side of Rickenbach transitions toward the Seetal valley with its chain of lakes. The western landscape opens to broader agricultural fields with scattered forest patches. The southern direction sees more pronounced hills that eventually build toward the pre-Alpine regions. Forests cover approximately one-third of the surrounding area, primarily on steeper slopes and hilltops, while agricultural land dominates the gentler terrain. Small settlements and farmsteads dot the landscape throughout the region.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several nearby areas present favorable conditions: The gently sloping agricultural plains to the west and northwest of Rickenbach offer substantial potential. These areas feature relatively flat terrain with minimal shading from mountains or forests, providing good exposure to sunlight throughout the day. The open farmland between Rickenbach and Pfeffikon would be particularly suitable. South-facing slopes in the region, especially those with inclinations between 20-30 degrees, could maximize solar gain. Several such hillsides can be found within 5 kilometers of Rickenbach, particularly in the direction of Beromünster. Some of the broader plateau areas toward Sempach, about 8 kilometers southwest, combine advantageous elevation with minimal topographical shading. These higher flat areas receive less fog than lower valleys during autumn and winter months. Former quarry sites or industrial zones near Sursee (approximately 7 kilometers west) present opportunities for solar development on land with limited agricultural value. These areas often have existing infrastructure connections that can support large-scale installations.

Topographical Limitations

Despite these opportunities, certain topographical factors limit solar potential in parts of the region. The forested hillsides, particularly those with northern exposures, would be unsuitable due to shading issues. Narrow valleys running east-west may experience significant shading during morning and evening. The region experiences occasional fog formation in valley bottoms during autumn and winter, which would reduce solar efficiency in these lower-lying areas compared to installations on higher ground. Additionally, the cultural and agricultural importance of the landscape means that large-scale solar developments would need careful planning to integrate with the existing land use patterns and visual character of this quintessentially Swiss countryside.

Switzerland solar PV Stats as a country

Switzerland ranks 25th in the world for cumulative solar PV capacity, with 3,449 total MW's of solar PV installed. This means that 4.70% of Switzerland's total energy as a country comes from solar PV (that's 16th in the world). Each year Switzerland is generating 399 Watts from solar PV per capita (Switzerland ranks 6th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Switzerland?

Yes, there are several incentives for businesses wanting to install solar energy in Switzerland. The Swiss Federal Office of Energy (SFOE) offers a range of financial support measures for businesses that want to invest in renewable energy sources such as solar power. These include grants, loans and tax deductions. Additionally, the Swiss government has set up a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to make investing in solar energy more attractive for businesses.
